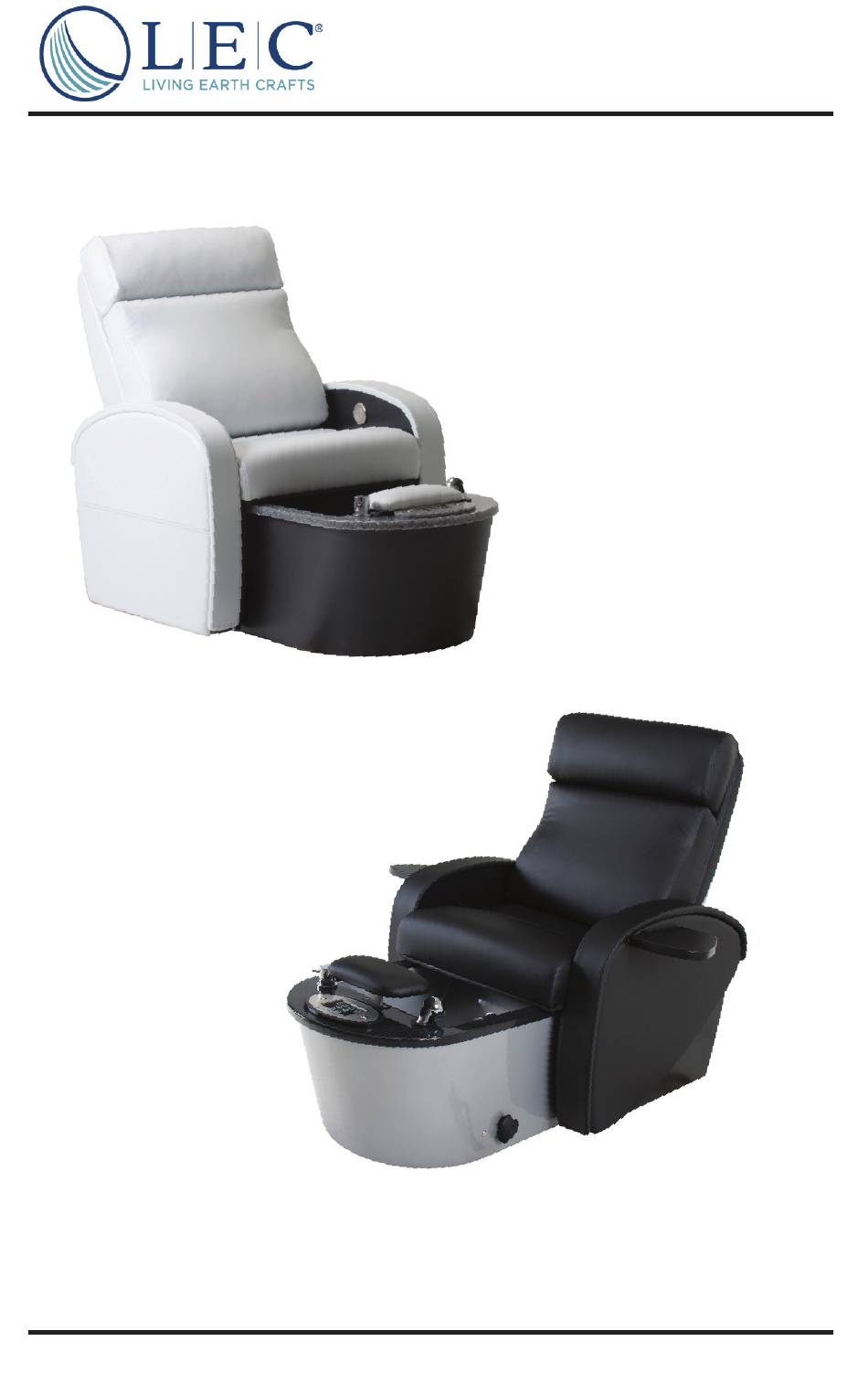

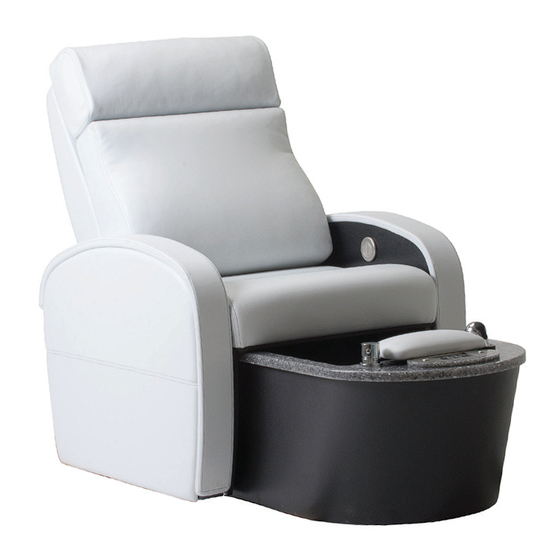

- Page 1 USER MANUAL Contour & Contour LX Pedicure Chairs Contour Contour LX 1-400-0099 • Rev C• 8/31/18 *shown with optional accessories and/or finishes © Living Earth Crafts 2018, All Rights Reserved...
- Page 2 Legal Notice The information provided in this document is intended for informational purposes only and is subject to change without notice. The information provided in this docu- ment should not be construed as a commitment by Living Earth Crafts®. Living Earth Crafts® assumes no responsibility for the ©...
-
Page 3: Table Of Contents
The Contour is designed for licensed therapists and technicians and is intended to be used in a professional spa, salon, or similar commercial environment. While no special training is needed to operate the product, for safety reasons it is important that the instructions contained in this manual are reviewed in detail before the first use. -
Page 4: Section 1: Safety Information
SECTION 1: SAFETY INFORMATION Safety Symbols Indicates an imminently hazardous situation which could result in serious Familiarize yourself with the following or fatal injury. Safety & Warning symbols. They are designed to prevent damage and injury to you, your clients, and your new Earthlite product. - Page 5 SECTION 1: SAFETY INFORMATION • DO NOT reach for any electrical object that has fallen into the water. Unplug immediately. • DO NOT drop or insert anything into jet opening. • DO NOT operate without the complete jet assembly installed or without water filled 1 inch above jets. •...
-
Page 6: Section 2: Product Overview
SECTION 2 : PRODUCT OVERVIEW Pillow Backrest Cushion Seat Cushion Side Tray (Optional) Tub Basin Armrest Door Shroud Drain Handle Discharge Pump Button (Optional) Light Sprayer/Fill Footrest Control Panel Water Fill Valve *Chair shown with opti onal fi nishes... -
Page 7: Product Specifications
SECTION 2 : PRODUCT OVERVIEW Product Specifications Overall Width 32.5” (78.7 cm) Shroud Width 22” (55.8 cm) Shroud Height 15” (38.1 cm) Length (armrest doors open) 73” (185.4 cm) Length (armrest doors closed) 57” (144.8 cm) Armrest Door Height 29.25” (74.3 cm) Seat Height 21”... - Page 8 SECTION 3: OPERATING INSTRUCTIONS Control Panel Operation Your Contour control panel is connected and ready for use. See below for descriptions of each button functionality. For the top row of buttons, push and hold the button until the chair movement stops - this means you have reached the memory position. For the lower set of buttons, push and hold until the desired position is reached.
-
Page 9: Jets & Lights
SECTION 3: OPERATING INSTRUCTIONS Sanijet® Pipeless Jets Pressing the On/Off button once will start the jets, and pressing the button again will turn the system off. Turn on the jets ONLY AFTER the tub is filled with water, and ensure you turn the jets OFF before draining the tub. -
Page 10: Water Fill Valve, Drain & Discharge Pump
SECTION 3: OPERATING INSTRUCTIONS Water Fill Valve The water fill valve is OFF when pointing DOWN. Water dispenses when you pull the valve UP. Hot water is dispensed when the valve is turned to the RIGHT. Cold water is dispensed when the valve is turned to the LEFT. -
Page 11: Side Trays
SECTION 3: OPERATING INSTRUCTIONS Side Trays (Optional) Side trays are a convenient way to offer manicure services in your pedicure chair. Each tray has 2 posts that fit into receivers on the armrest door. See below for installation and storage. Installation Side Tray Receivers... -
Page 12: Relaxor
SECTION 3: OPERATING INSTRUCTIONS Relaxor® Heat & Massage (Optional) The following diagrams illustrate the ease-of-use and functionality that the Relaxor® system provides to you and your clients. RISK OF ELECTRIC SHOCK Keep hand control and all electrical components away from water. Power Lower Back Heat - High Lower Back Heat - Low... -
Page 13: Section 4: Care & Maintenance
SECTION 4: CARE & MAINTENANCE Cleaning Sanijet® Pipeless Jets - Always refer to your state/local codes for specific cleaning requirements. - NEVER USE abrasive cleaners on any surface area. Failure to comply can cause damage and void your warranty. Preparation & Cleaning Drain the bath of all water. -
Page 14: Ongoing Maintenance
SECTION 4: CARE & MAINTENANCE Cleaning & Ongoing Maintenance RISK OF ELECTRIC SHOCK Always unplug this furnishing from the electrical outlet before cleaning. DO NOT USE acetone, paint thinner, bleach, “Armor All” type cleaners, or industrial cleaners. These will damage the upholstery’s protective coating. Do not place nail care products on the tub. -
Page 15: Troubleshooting
Jets Follow cleaning instructions or replace if necessary. Check and ensure all visible bolts are tightened. Water Leakage Call a plumber to determine the source of the leak. If the leak is from the jet system, contact LEC customer service. -
Page 16: Electrical Specifications
Total Consumption 10.5 Amps Max 5.7 Amps Max - All Options Consumption - 6.5 Amps Max 3.5 Amps Max Standard Contour Consumption - Additional 4 Amps (Max) Additional 2.2 Amps (Max) Relaxor Discharge Pump Specification Motor Design Single-phase synchronous motor... -
Page 17: Warranty Information
Owner’s Record Warranty Information Living Earth Crafts (LEC) offers an industry best two (2) year warranty on all Pedicure Units. Motors and controls, actuators, foam and upholstery are warranted for two (2) years, including parts and labor unless otherwise noted. LEC may repair or replace defective components at our discretion. -
Page 18: Faqs
Does the Contour have GFI/GFCI built in? There are no GFI/GFCIs built in to the system - we require a GFCI protected grounded circuit to... -
Page 20: Contact Us
Contact Us Living Earth Crafts Hours of operation: 990 Joshua Way Monday - Friday Vista, CA. 92081 8:00 a.m. to 5 p.m. PST (800) 358-8292 (760) 597-2155 Int’l Saturday - Sunday (866) 449-8872 fax Closed info@livingearthcrafts.com Visit us online at: livingearthcrafts.com Read our blog at: livingearthcrafts.com/blog Join us on Facebook ®...
