INFLATION

1. Attach nozzle to the inflation connector if necessary and hold pump against inflation valve on item to be inflated.
See Fig (1).
NOTE: Use the appropriate nozzle on small inflation valves as on small air mattresses, etc.
2.1. Connect the end of the pump line cord to the DC cigarette cord (6) first, then plug in the DC line cord into a car cigarette
lighter outlet. See Fig (2.1).
2.2. Connect the end of the pump line cord to the AC adapter (5) first, then plug in the AC adapter into an AC electrical outlet.
See Fig (2.2).
3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3).

DEFLATION

1. Attach nozzle to the deflation connector if necessary and hold pump against inflation valve on item to be deflated.
See Fig (4).
NOTE: On large items like inflatable boats and large air mattresses, the pump will fit directly into the inflation valves and
provide faster deflation times. Use the appropriate nozzle on small inflation valves as on small air mattresses, etc.
2.1. Connect the end of the pump line cord to the DC cigarette cord (6) first, then plug in the DC line cord into a car cigarette
lighter outlet. See Fig (2.1).
2.2. Connect the end of the pump line cord to the AC adapter (5) first, then plug in the AC adapter into an AC electrical outlet.
See Fig (2.2).
3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3).

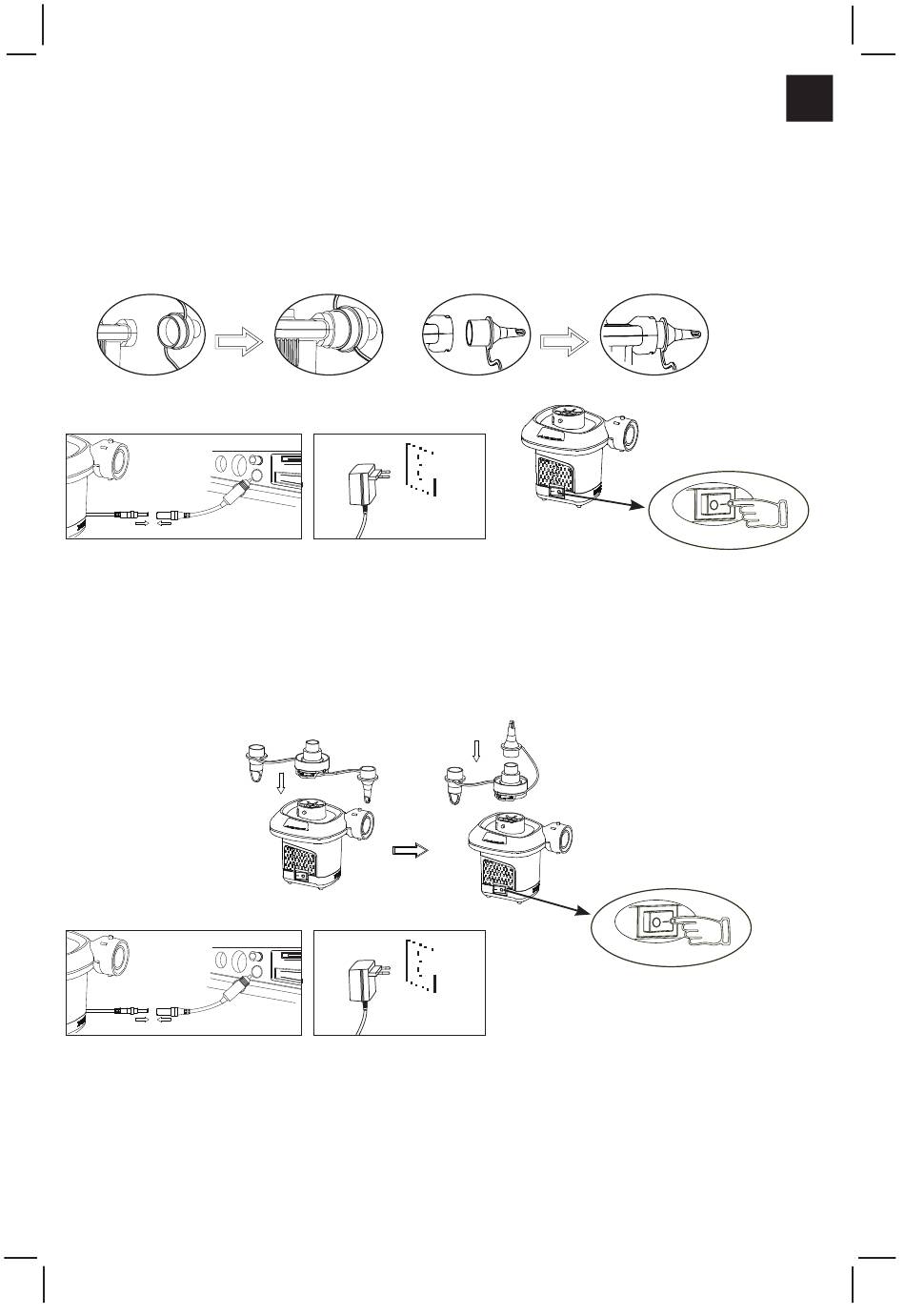

FIG (4): ATTACH NOZZLE

MAINTENANCE INSTRUCTIONS

No specific air pump maintenance is required. Air pump has no user serviceable parts.

MOVING AND STORAGE INSTRUCTIONS

Move the product, air pump and accessories to the power source location. Make sure the power cord is free of twist, kink and
knot. Fold the power cord loosely, and return pump and nozzles to package when not in use.
SAVE THESE INSTRUCTIONS

OPERATING INSTRUCTIONS

OR
FIG (1): ATTACH NOZZLE
110-120V
FIG (2.1)
110-120V
FIG (2.1)
(194PO) AP633 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 04/29/2021
FIG (2.2)
FIG (3): SWITCH
FIG (2.2)
Page 2
FIG (3): SWITCH
