Intex Quick-Fil AP634 Owner's Manual

INTEX
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• Adult use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 5 minutes at a time. Unplug and let cool at least 15 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into the inflation or deflation connector.
• The DC supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• To reduce the risk of electric shock, do not expose to rain. Store indoors.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• The appliance must only be supplied at safety extra low voltage corresponding to the
marking on the appliance.
• The appliance is only to be used with the power supply unit provided with the appliance.
• Suitable for inflating air mats, airbeds, inflatable pools and inflatable toys only.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE,
ELECTRIC SHOCK, BURNS OR OTHER INJURY.
2
1
7
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
®
OWNER'S MANUAL

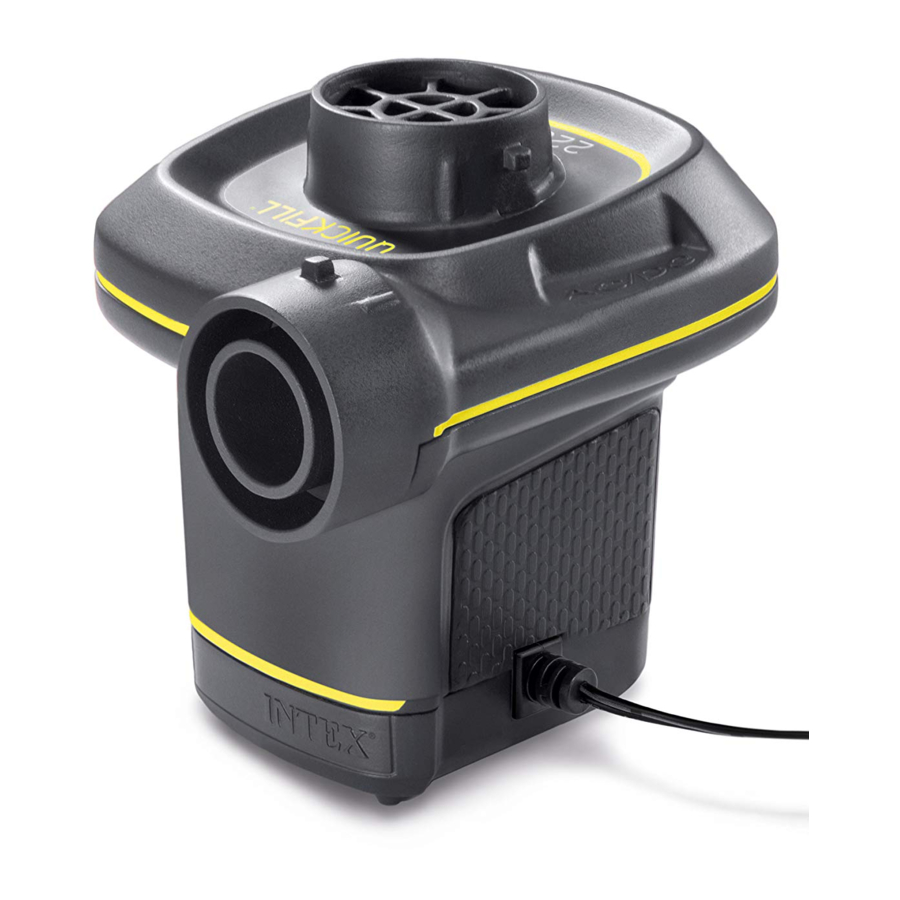

Quick-Fill™ Electric Air Pump
Model AP634; 12 V

WARNING

NAMES OF PARTS
3
8
Page 1
(194IO) AP634 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 05/22/2019
; 32 W

PARTS DESCRIPTION:

5
1. PUMP
2. DEFLATION CONNECTOR
6 3. INFLATION CONNECTOR
4. SWITCH
5. AC ADAPTER
6. DC CIGARETTE CORD
4 7. NOZZLES
8. VENT HOLES / SLOTS
194
IO
194-*IO-R0-2005
