INTEX
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• Adult use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 5 minutes at a time. Unplug and let cool at least 15 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into the inflation or deflation connector.
• The DC supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• To reduce the risk of electric shock, do not expose to rain. Store indoors.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• The product must only be supplied at SELV.
• Suitable for inflating air mats, airbeds, inflatable pools and inflatable toys only.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE,
ELECTRIC SHOCK, BURNS OR OTHER INJURY.
2
3
5
6
7
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
®
OWNER'S MANUAL

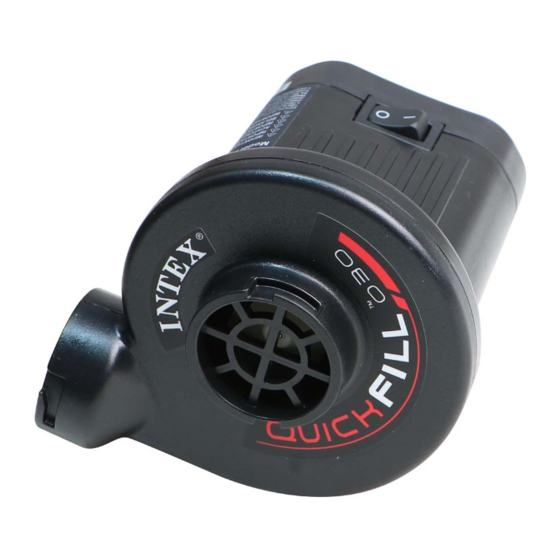

Quick-Fill™ Electric Air Pump
Model AP632; 12 V
WARNING
NAMES OF PARTS
4
Page 1
(194IO) AP632 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 09/22/2017
; 32 W
1
PARTS DESCRIPTION:
1. PUMP
2. DEFLATION CONNECTOR
3. INFLATION CONNECTOR
4. SWITCH
5. AC LINE CORD
6. DC CIGARETTE CORD
7. NOZZLES
8. VENT HOLES / SLOTS
8
194
IO
194-*IO-R0-1809
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intex Quick-Fill AP632
Summary of Contents for Intex Quick-Fill AP632
- Page 1 (194IO) AP632 ELECTRIC PUMP ENGLISH 4.875” X 7.25” 09/22/2017 INTEX ® OWNER'S MANUAL Quick-Fill™ Electric Air Pump Model AP632; 12 V ; 32 W READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT WARNING • Adult use only. • Do not drop unit into water or expose unit to rain or water. • Do not direct air stream at face or body.
- Page 2 NOTE: Use the appropriate nozzle on small inflation valves as on small air mattresses, etc. 2.1. Plug in the DC line cord into a car cigarette lighter outlet. See Fig (2.1). 2.2. Plug in the AC line cord into an AC electrical outlet. See Fig (2.2) 3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3). FIG (1): ATTACH NOZZLE 220-240V FIG (2.1) FIG (3): SWITCH FIG (2.2) DEFLATION 1. Attach nozzle to the deflation connector if necessary and hold pump against inflation valve on item to be deflated. See Fig (4). NOTE: On large items like inflatable boats and large air mattresses, the pump will fit directly into the inflation valves and provide faster deflation times. Use the appropriate nozzle on small inflation valves as on small air mattresses, etc. 2.1. Plug in the DC line cord into a car cigarette lighter outlet. See Fig (2.1). 2.2. Plug in the AC line cord into an AC electrical outlet. See Fig (2.2) 3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3). FIG (4): ATTACH NOZZLE 220-240V FIG (3): SWITCH FIG (2.1) FIG (2.2) ©2017 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China. ®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands www.intexcorp.com � SAVE THESE INSTRUCTIONS Page 2...
