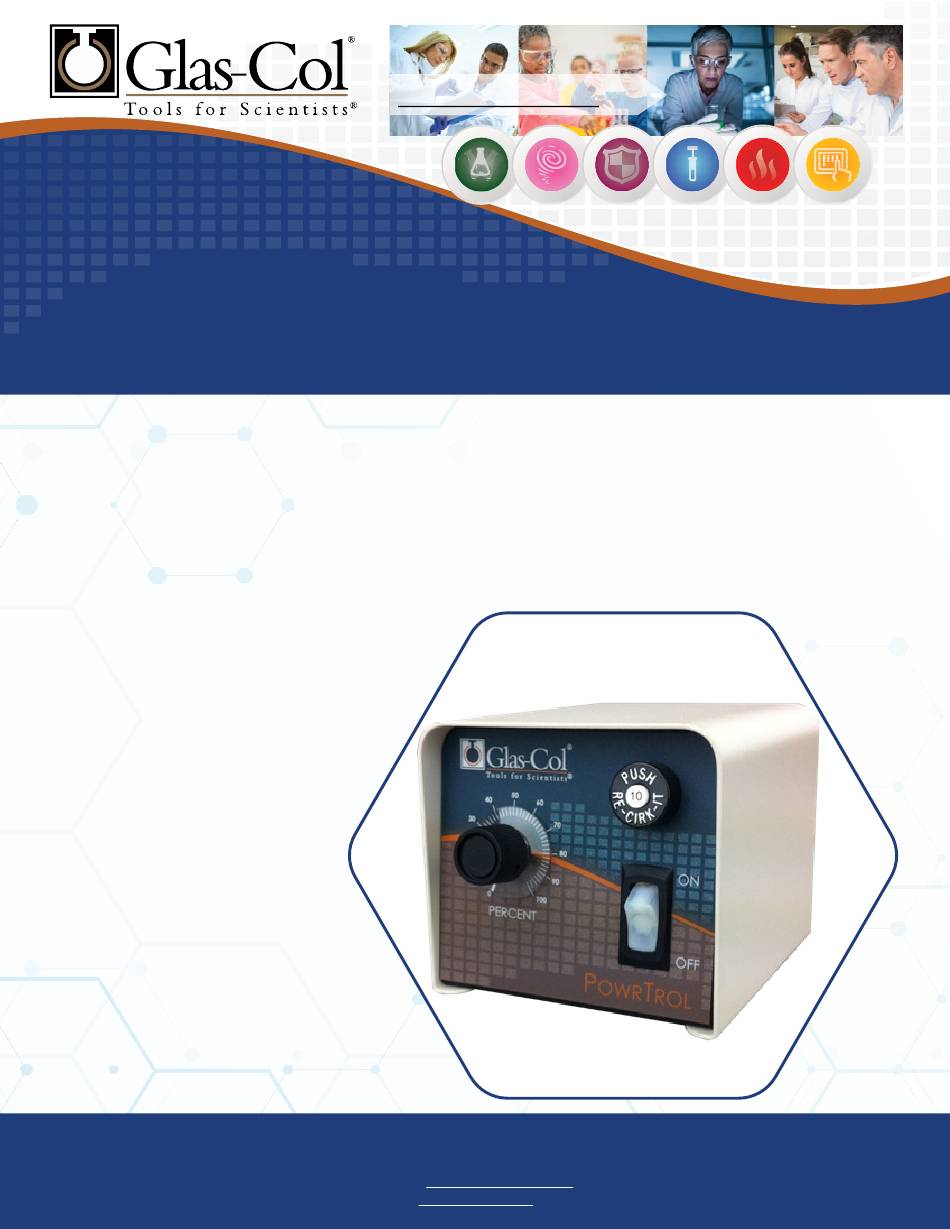

Instruction Notes for PowrTrol 104A PL120/104A PL124
General Description
The PowrTrol is a manually adjusted solid-state power controller. It is designed to provide precise and
variable control to resistive loads up to 10 amps. Operation is stable in ambient temperature from 30
to 130 degrees F.
Control Features
1.) Lighted On/Off Switch
2.) 10-amp output
3.) Dial is for reference only
4.) Circuit Protection
5.) Low pro�ile housing
Page 1
Tools for Scientists
User Instructions
711 Hulman Street P.O. Box 2128, Terre Haute, IN 47802 0128 USA
Phone: (812) 235-6167 • Fax: (812) 234-6975
Email: pinnacle@glascol.com
Glas-Col, LLC
www.glascol.com
®
Advertisement
Table of Contents
Related Manuals for Glas-Col PowrTrol 104A PL120
Summary of Contents for Glas-Col PowrTrol 104A PL120
- Page 1 Tools for Scientists ® User Instructions Instruction Notes for PowrTrol 104A PL120/104A PL124 General Description The PowrTrol is a manually adjusted solid-state power controller. It is designed to provide precise and variable control to resistive loads up to 10 amps. Operation is stable in ambient temperature from 30 to 130 degrees F.
- Page 2 Tools for Scientists ® User Instructions How to Setup and Operate First connect the heater load (10 amps or less) to the load receptacle on the rear panel. Next plug the control line cord into the appropriate 3-wire grounded power receptacle. Toggle the lighted power switch to the “ON”...
- Page 3 • 240V, 50/60 Hz (104A PL124) Operating Environment • 30 to 130 degrees F/0 to 55 degrees C; 0 to 90% RH, non-condensing Glas-Col, LLC 711 Hulman Street P.O. Box 2128, Terre Haute, IN 47802 0128 USA Phone: (812) 235-6167 • Fax: (812) 234-6975 Email: pinnacle@glascol.com...
- Page 4 Tools for Scientists ® User Instructions Limited Warranty See the current Glas-Col warranty policy located under the General Sales Policy on the Glas-Col website at www.glascol.com Glas-Col products are intended only for legal and legitimate purposes in commercial laboratory and industrial settings.
