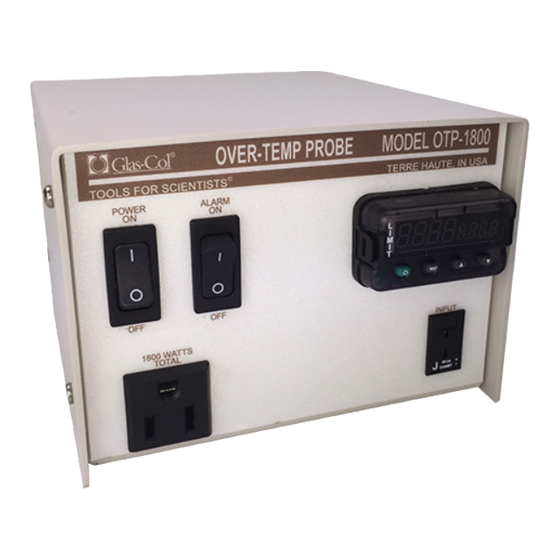

This control is a microprocessor-based, digital indicating, automatic temperature limit control with a single input and a
single output. The control displays the process temperature and the condition of the control, either Safe or Fail. This unit
comes with a 6' detachable power cord, grid support bracket, which is ideal for fume hood mounting to maximize bench
space. This family of control accepts a type "J", "K", "T" thermocouples or RTD input depending on the model ordered.
This control automatically stores all information in a non-volatile memory.
12/22/2014
108A OTP1800
Digital
Control
Module
Sensor
Input
General Description
1
Grid
Support
Fuse
Alarm
250 Volt
15 amp
Power
Inlet
(02.293.480)
Rev.2
