Glas-Col PowrTrol 104A PL1202 User Instructions

Download this manual

user instructions

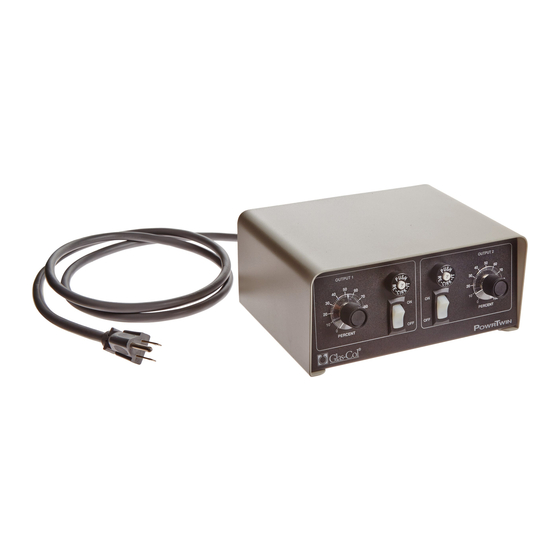

General Description

The PowrTwin is a manually adjusted, dual output, solid-state power controller. It is

designed to provide precise and variable control to resistive loads up to 14 amps total: 7

amps per circuit. Operation is stable in ambient temperature from 30 to 130 degrees F.

Control Features

1. Lighted On/Off switch per output

2. 7-amp relay output per circuit.

3. Non-Linear control (scale is for reference only)

4. Individual circuit protectors

5. Low profile modular housing.

J:\Std User Instructions\POWRTWIN.doc

Instruction Notes for PowrTrol 104A PL1202

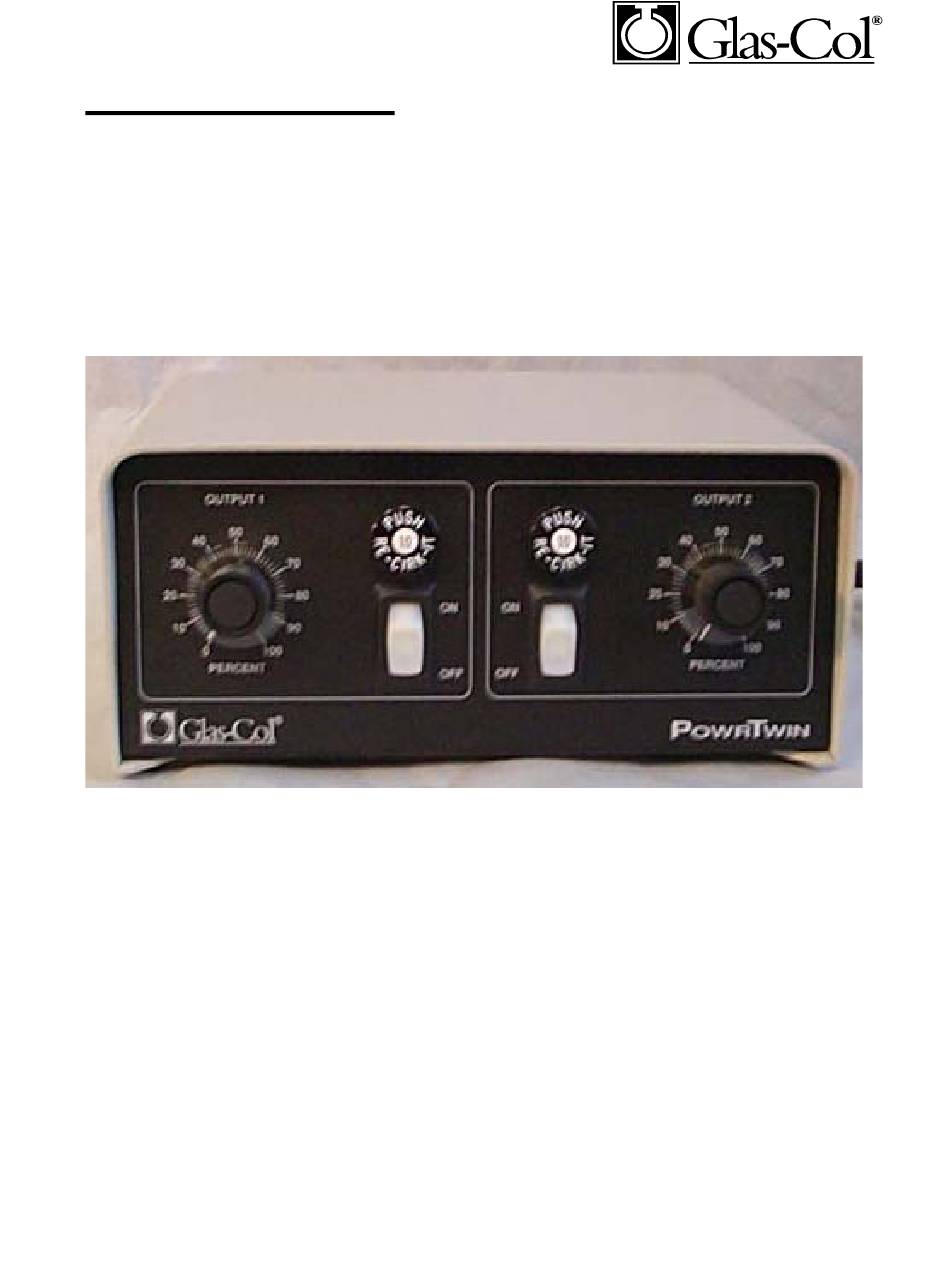

Figure 1
