INSTRUCTION MANUAL
HI97105 | HI97115
Marine Master Waterproof
Multiparameter Photometer
pH
X
Alkalinity
X
Ammonia
X
Calcium
X
Magnesium
X
Nitrate Low Range
X
Nitrate High Range
X
Nitrite Ultra Low Range
X
Phosphate Ultra Low Range
X
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI97105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments HI97105

Summary of Contents for Hanna Instruments HI97105

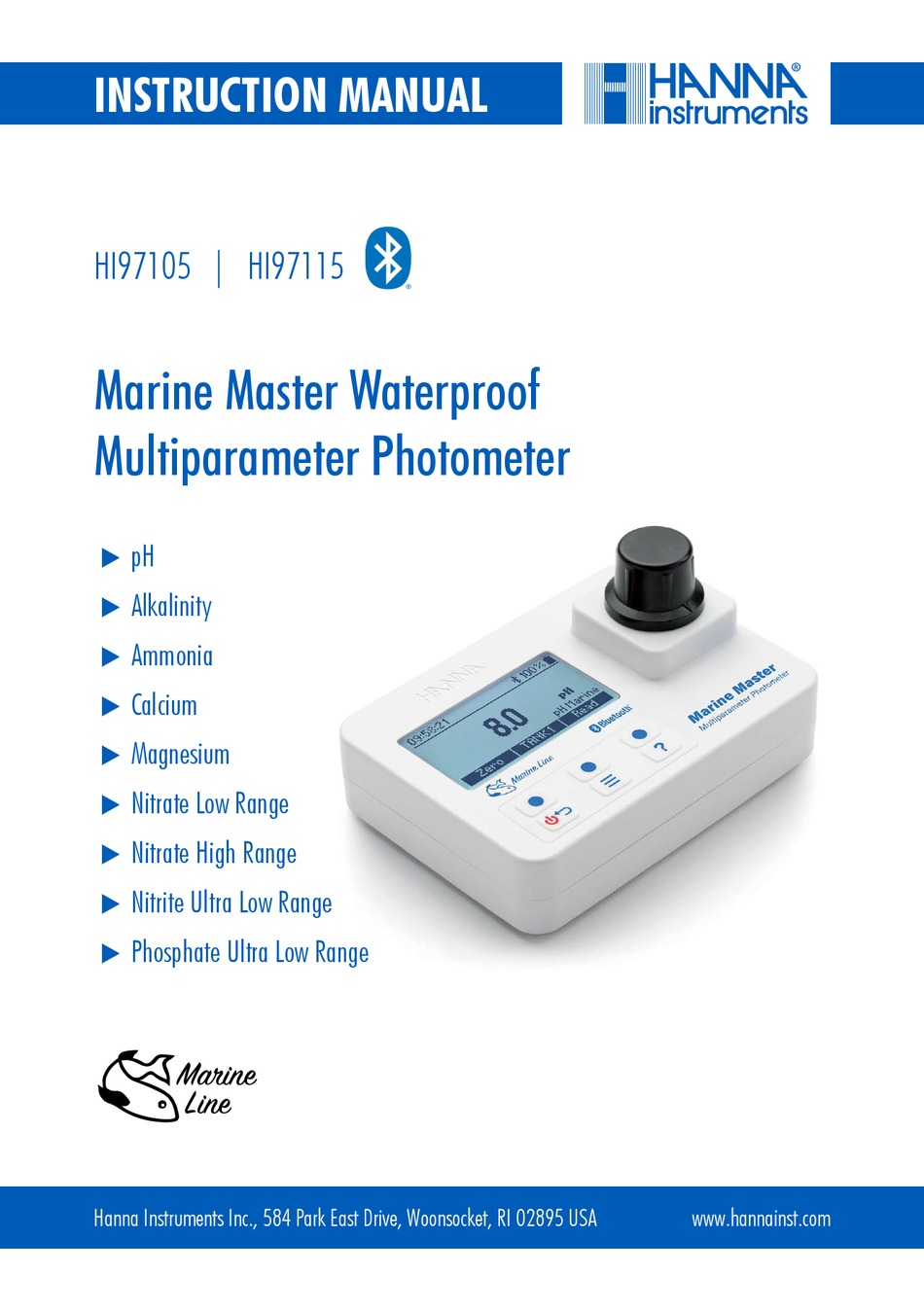

  • Page 1 INSTRUCTION MANUAL HI97105 | HI97115 Marine Master Waterproof Multiparameter Photometer Alkalinity Ammonia Calcium Magnesium Nitrate Low Range Nitrate High Range Nitrite Ultra Low Range Phosphate Ultra Low Range Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA www.hannainst.com...

  • Page 2: Table Of Contents

    All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. Hanna Instruments reserves the right to modify the design, construction, or appearance of its products without advance notice.

  • Page 3: Preliminary Examination

    Preliminary Examination 1. PRELIMINARY EXAMINATION Remove the instrument and accessories from the packaging and examine it carefully. For further assistance, ® please contact your local Hanna Instruments office or email us at tech@hannainst.com. Each HI97105 HI97115 is supplied with: • Sample cuvette (2 pcs.) •...

  • Page 4: Safety Measures

    Safety Measures 2. SAFETY MEASURES The chemicals contained in the reagent kits may be hazardous if improperly handled. Read the Safety Data Sheets (sds.hannainst.com) before performing tests. Safety equipment • Follow instructions carefully and wear suitable eye protection and clothing when required.

  • Page 5: Methods

    5  Specifications 3.3. METHODS Accuracy Range Resolution Description at 25 °C (77 °F) 6.3 to 8.6 ±0.2 pH Colorimetric Adaptation of Phenol Red Method. of reading Colori metric Method. 0.0 to 20.0 ±0.3 dKH Reaction causes a distinctive range of ±5 % colors from yellow to greenish blue to of reading...

  • Page 6: Description

    With the CAL Check™ functionality, users are able to validate the performance of the instrument at any ® time. Hanna Instruments CAL Check cuvettes are certified against NIST‑traceable reference instrument(s). The built-in tutorial mode guides users step‑by‑step through the measurement process. The tutorial mode includes all steps required for sample preparation, the required reagents and quantities.

  • Page 7: Functional Description

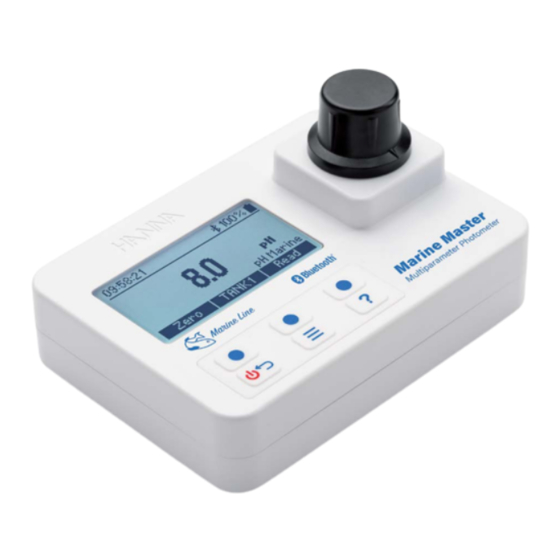

    Description 4.2. FUNCTIONAL DESCRIPTION 09:58:21 pH Marine Zero TANK1 Read 1. Liquid Crystal Display (LCD) Marine Master 2. Keypad Multiparameter Photometer 3. ON/OFF power button 4. Cuvette holder 5. Indexing mark 6. Battery cover HI97115 Woonsocket RI USA Made in Romania 3 x 1.5V AA SN: XXXXXXXXXXXX Contains...

  • Page 8: Precision & Accuracy

    Description 4.3. PRECISION & ACCURACY Precision is how closely repeated measurements are to one another, usually expressed as standard deviation (SD). Accuracy is defined as the closeness of a test result to the true value and is method specific. Although good precision suggests good accuracy, precise results can be inaccurate. Precise, accurate Precise, not accurate Not precise, accurate Not precise, not accurate...

  • Page 9: General Operations

    The CAL Check screen guides users step‑by‑step through the validation process. Warning: Do not use any solutions or standards other than the Hanna Instruments® CAL Check standards. For accurate validation, please perform it at room temperature, 18 to 25 ° C (64.5 to 77.0 ° F).
  • Page 10 Alkalinity, Ammonia, Calcium, Magnesium, Phosphate ULR), then press Next to continue. The “Please wait...“ message will be displayed during the measurement. Note: HI97100-ZERO, HI97100-525, and HI97100-610 are included in the HI97105-11 CAL Check™ standards for Marine Master photometer – cuvette kit. Please see Accessories for ordering codes.

  • Page 11: Chemical Formula & Unit Conversion

    General Operations 5.2. CHEMICAL FORMULA & UNIT CONVERSION Chemical formula and unit conversion factors are method‑dependent and pre‑programmed into the instrument. Note: When powered on, the instrument starts with the previously selected chemical form. To view the displayed result in the desired chemical formula: 1.

  • Page 12: General Setup

    General Operations 4. Press No or the key to return to the previous screen. Press Yes to delete selected log. Press Del All to erase all the logged data. If Del All is pressed, follow the prompt to confirm. Press Yes to delete all logged data, No, or the key to return to the log recall.
  • Page 13 Press the functional key to enable or disable the beeper. Locations Option: 10, 25 (HI97105); 10, 25, 50, 75, 100 (HI97115) This function allows users to edit between 10 (default) and up to 100 reading locations. Press Modify and use the functional keys to set desired option.
  • Page 14 General Operations Tutorial Option: Enable, Disable Press the functional key to enable or disable the tutorial. When enabled, the user will be guided step‑by‑step through the measurement procedures. Bluetooth, HI97115 only Option: ON, PAIR, OFF Press Modify and use the functional keys to set desired option. key to return to the Setup menu without saving.

  • Page 15: Reagents & Accessories

    General Operations Restore Factory Settings Press Select to reset to factory settings. Press Accept to confirm or Cancel to exit without restoring the factory settings. 5.5. REAGENTS & ACCESSORIES Press the key to enter the menu. Use the functional keys to select Reagents / Accessories and press Select to access a list of reagents and accessories.

  • Page 16: Bluetooth Connectivity, Hi97115 Only

    General Operations 5.8. BLUETOOTH CONNECTIVITY, HI97115 ONLY Using Hanna Lab App To connect the photometer to the Hanna Lab App: 1. Power on the instrument and press Continue to enter measurement mode. is displayed flashing indicating & the instrument is in discoverable mode. Note: For Bluetooth connectivity, ensure Bluetooth option is configured as ON (default) in Setup.

  • Page 17: Photometer

    Note: At power on the instrument starts with the previously selected method. 6.2. READING LOCATION SELECTION The user has the option to select a measurement location from up to 25 TANKS (HI97105) and from up to 100 TANKS (HI97115). From menu, having previously selected required Method, press the corresponding functional key to select a location.

  • Page 18: Collecting & Measuring Samples And Reagents

    Cuvette Preparation 6.3. COLLECTING & MEASURING SAMPLES AND REAGENTS Proper Use of Powder Packet 1. Use scissors to open the powder packet. 2. Push the edges of the packet to form a spout. 3. Pour out the content of the packet. Proper Use of Dropper Bottle 1.

  • Page 19: Measurement Recommendations

    Measurement Recommendations Technique Icons Description For one inversion: • Hold the cuvette in vertical position • Turn the cuvette upside‑down and wait for all of the solution to flow to the cap end Invertion • Return the cuvette to the upright vertical position •...

  • Page 20: Battery Management

    6.6. BATTERY MANAGEMENT ® The meter will perform an auto‑diagnostic test when it is powered on. During this test, the Hanna Instruments logo will appear on the LCD. If the auto‑diagnostic test was successful, the meter is ready for use.

  • Page 21: Method Procedure

    Marine pH 7. METHOD PROCEDURE 7.1. MARINE pH REQUIRED REAGENTS Code Description Quantity HI780‑0 Marine pH Reagent 5 drops REAGENT SETS HI780‑25 Marine pH Reagent 100 tests For other accessories see Accessories section. MEASUREMENT PROCEDURE Select the pH Marine method using the procedure described in Method Selection section. Note: If tutorial mode is disabled, follow the measurement procedure below.

  • Page 22: Marine Alkalinity

    Marine Alkalinity 7.2. MARINE ALKALINITY REQUIRED REAGENTS Code Description Quantity HI772S Marine Alkalinity Reagent 1 mL REAGENT SETS HI772‑26 Marine Alkalinity Reagent 25 tests For other accessories see Accessories section. MEASUREMENT PROCEDURE Select the Alkalinity Marine method using the procedure described in Method Selection section. Note: If tutorial mode is disabled, follow the measurement procedure below.

  • Page 23: Marine Ammonia

    Marine Ammonia 7.3. MARINE AMMONIA / NH REQUIRED REAGENTS Code Description Quantity HI784A‑0 Marine Ammonia Reagent A 1 mL HI784B‑0 Marine Ammonia Reagent B 1 packet HI784C‑0 Marine Ammonia Reagent C 1 packet REAGENT SETS HI784‑25 Marine Ammonia Reagents 25 tests For other accessories see Accessories section.
  • Page 24 Marine Ammonia • Press Zero. The display will show “‑0.0‑” when the meter is zeroed and ready for measurement. • Remove the cuvette. • Unscrew the cuvette cap. Using scissors, open one packet of HI784C‑0 along the dotted line. Push the two corners together to make a spout. Add the content of the packet to the cuvette.

  • Page 25: Marine Calcium

    Marine Calcium Percentage of Unionized Ammonia (NH 21 °C (70 °F) 24 °C (75 °F) 26 °C (79 °F) 29 °C (84 °F) 7.4. MARINE CALCIUM REQUIRED REAGENTS Code Description Quantity HI7581 Marine Calcium Reagent A 1 mL HI7582 Marine Calcium Reagent B 1 packet REAGENT SETS HI758‑26...
  • Page 26 Marine Calcium • Press Zero. The display will show “‑0.0‑” when the meter is zeroed and ready for measurement. • Remove the cuvette. • Use the minipipette to add 0.1 mL of sample to the cuvette. See Collecting & Measuring Samples and Reagents for tips for proper usage of the minipipette.

  • Page 27: Marine Magnesium

    Marine Magnesium 7.5. MARINE MAGNESIUM REQUIRED REAGENTS Code Description Quantity HI783A‑0 Marine Magnesium Reagent A 4 mL HI783IND‑0 Marine Magnesium Indicator Reagent 1 packet REAGENT SETS HI783‑25 Marine Magnesium Reagents 25 tests For other accessories see Accessories section. SAMPLING PROCEDURE Prepared sample cuvette (sample plus reagents) must be 22 to 28 °C (72 to 82 °F).

  • Page 28: Marine Nitrate Lr

    Marine Nitrate LR • Remove the cuvette. • Unscrew the cap and add the content of one packet of HI783IND‑0 Marine 30 sec. Magnesium Indicator Reagent. Ensure all powder is added to the sample, loss of powder will result in false high readings. Replace the plastic stopper and the cap.
  • Page 29 Marine Nitrate LR PREPARE THE FILTER HOLDER ASSEMBLY 1. Unscrew the two halves of the reusable filter holder and carefully place one paper filter on the lower piece. The upper piece is marked ‘TOP’; the lower piece has no marking. Ensure the filter paper is on top of the clear colorless gasket in the filter holder.
  • Page 30 Marine Nitrate LR • Add the content of one packet of HI781B‑0 Marine Nitrate LR Reagent into the mixing cuvette. Replace the plastic stopper and cap. Shake vigorously for 1 minute. • Remove the cap of the mixing cuvette. Thread the covered needle onto the 10 mL syringe, remove the plastic cover and draw up the contents of the mixing cuvette into the syringe.

  • Page 31: Marine Nitrate Hr

    Marine Nitrate HR 7.7. MARINE NITRATE HR REQUIRED REAGENTS Code Description Quantity HI782‑0 Marine Nitrate HR Reagent 1 packet REAGENT SETS HI782‑25 Marine Nitrate HR Reagent 25 tests For other accessories see Accessories section. MEASUREMENT PROCEDURE Select the Nitrate Marine HR method using the procedure described in Method Selection section.

  • Page 32: Marine Nitrite Ulr

    Marine Nitrite ULR 7.8. MARINE NITRITE ULR REQUIRED REAGENTS Code Description Quantity HI764‑0 Marine Nitrite ULR Reagent 1 packet REAGENT SETS HI764‑25 Marine Nitrite ULR Reagent 25 tests For other accessories see Accessories section. MEASUREMENT PROCEDURE Select the Nitrite Marine ULR method using the procedure described in Method Selection section.

  • Page 33: Marine Phosphate Ulr

    Marine Phosphate ULR INTERFERENCES Interference may be caused by: • Antimonious, Auric, Bismuth, Chloroplatinate ions, Cupric, Iron (Ferric), Iron (Ferrous), Lead, Mercurous, Silver, Strong reducing or oxidating agents • Nitrate above 100 ppm could yield falsely high readings 7.9. MARINE PHOSPHATE ULR REQUIRED REAGENTS Code Description...
  • Page 34 Marine Phosphate ULR • Press Read. The display will show a 3 minute countdown prior to the measurement. To skip the timer, press Read. When the timer ends, the meter will perform the reading. The instrument displays the results in ppm of phosphate (PO ¯).

  • Page 35: Warning & Error Descriptions

    The measured value is outside the limits of the method. Verify that the sample does not contain any debris. Check sample preparation, measurement preparation and method range. Date and time settings have been lost. Reset the values. If the issue persists, please contact Hanna Instruments technical support.

  • Page 36: Battery Replacement

    English is the only available language. Help function is not available. Restart the meter. If the issue persists, please contact Hanna Instruments technical support. Battery level is too low for the meter to function properly. Replace the batteries with new ones.

  • Page 37: Accessories

    Marine Nitrate HR Reagent ‑ 25 tests HI783-25 Marine Magnesium Reagent ‑ 25 tests HI784-25 Marine Ammonia Reagent ‑ 25 tests Reagent Standards HI97105-11 CAL Check™ standards for Marine Master photometer – cuvette kit Other Accessories HI70436M Deionized water (230 mL) HI7101419...

  • Page 38: Certification

    If the meter is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid. When shipping any meter, make sure it is properly...

  • Page 39: Regulatory Notices, Hi97115 Only

    Regulatory Notices, HI97115 only REGULATORY NOTICES, HI97115 ONLY Stand-alone, Bluetooth, low-energy modules All modules have identical operation. All references to US FCC Rules and Canadian RSS standards on device classification and operation, listed under BMD-300 Module, apply to all models noted here. See the back of the instrument for fitted module's compliance approvals.
  • Page 40 Regulatory Notices, HI97115 only BMD-350 Module United States (FCC) FCC ID: 2AA9B05 Canada (ISED) IC: 12208A‑05 Australia / New Zealand (RCM) BMD‑350 complies with the AS/NZS 4268:2017 Japan (MIC) South Korea (KCC) R-C-Rgd-BMD-350 Brazil (ANATEL): Contains ANATEL approved module # 00857‑21‑05903 Eurasia (EAC) EAЭC   N RU  Д-US. ...
