USER
MANUAL
INDUSTRIAL RANGE

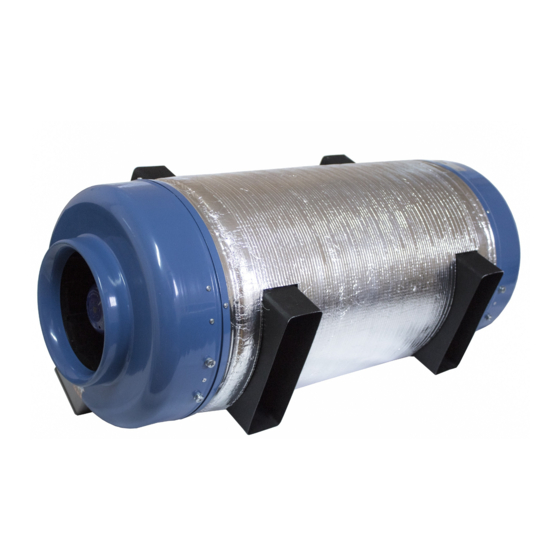

PRANA 340S
• Some content and functionality may vary from device to device depending on the model,
region, or software version, and are subject to change without notice.
• Read all safety information carefully to ensure safe and proper use of the device.
MODEL RANGE: PRANA 2022®
Use the QR code or visit the website:
http://prana.help/p023 to overview useful information about the
product.
PL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 340S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for prana 340S

  • Page 1 INDUSTRIAL RANGE PRANA 340S Use the QR code or visit the website: http://prana.help/p023 to overview useful information about the product. • Some content and functionality may vary from device to device depending on the model, region, or software version, and are subject to change without notice.
  • Page 2 Before using and installing the product read the user’s manual carefully. After reading the user manual, keep it for as long as you use the product and be sure to provide the user manual when passing the control to another user.
  • Page 3: Table Of Contents

    CONTENTS WARNINGS AND SAFETY MEASURES ........4 SYSTEM CONFIGURATION ............8 DESCRIPTION OF THE REMOTE CONTROL ......10 DESCRIPTION OF THE WINE CONTROL UNIT ..... 11 MOBILE APPLICATION ..............12 DESCRIPTION OF THE TABS OF THE MOBILE APP .... 14 CHOICE OF RECUPERATOR ............
  • Page 4: Warnings And Safety Measures

    WARNINGS AND SAFETY MEASURES • This appliance can be used by children aged from 8 years and above, people with reduced physical, sensory or mental capabilities or with lack of experience and knowledge as long as they are supervised or instructed on the safe use of the device and understand the hazards involved.
  • Page 5 • The fan inside the device rotates during operation. Avoid putting foreign objects inside the device during operation. Doing so may result in personal injury. • Maintenance of the product should only be performed by a suitably qualified person with the appropriate level of electrical safety clearance who is familiar with the user manual.
  • Page 6 • Do not locate the junction box at the lowest point of the product to prevent condensation and risk of shorting. Do not expose the product to water. Do not install or maintain the product with wet hands. Always keep the conductive parts of the network dry, insulated and inaccessible in order to prevent accidents or short-circuits in the network.
  • Page 7 • The manufacturer declines responsibility for possible damage directly or indirectly caused by the ventilation system to people, animals, property if it is caused by failure of observing the operating rules and conditions, product adjustment, intentional or negligent actions of the buyer (user) or third parties.
  • Page 8: System Configuration

    SYSTEM CONFIGURATION The availability of certain functions and capabilities depends on the configuration of your recuperator. PARAMETER ** A ** H ** WA ** WH Wall version Mini-heating Winter mode Heating element control Date and time Bluetooth support Wi-Fi support* Air quality sensors* Operation modes* AUTO and AUTO+...
  • Page 9 The letter designation of the ventilation systems configuration: **A - ventilation system is equipped with a control unit in a dust-proof enclosure; **H - ventilation system is equipped with a control unit in a dustproof enclosure with the possibility of connecting and controlling a supply air after-heating heater;...
  • Page 10: Description Of The Remote Control

    DESCRIPTION OF THE REMOTE CONTROL The graphic below shows the appearance of the remote control. Purpose of the remote control buttons. 1 - Display brightness adjustment 2 - Switch off 3 - Extract control 4 - Reduced speed 5 - Increase speed 6 - Simultaneous flow control 7 - Tide control 8 - Minimum mode...
  • Page 11: Description Of The Wine Control Unit

    DESCRIPTION OF THE WINE CONTROL UNIT The graphic below shows the appearance of the controls. Purpose of the control buttons. PRANA RECUPERATOR 1 - Information panel 2 - ON/OFF «Mini-heating»* 3 - «Winter mode*» function 4 - Sleep timer function...
  • Page 12: Mobile Application

    If not, enable them yourself and restart the app. Without this permission, our app cannot enable the search. The bottom list after the search will place all PRANA ventilation systems under the following conditions: • They are enabled. • Have a built-in Bluetooth module...
  • Page 13 Select a device from the list, its name by PRANA Recuperator by default and the password is 0000. PRANA Recuperator -67 dBm SCAN Select the Bluetooth connection method (for the initial connection) and press the «Connect» button. You can then control the system (recuperator) PRANA.
  • Page 14: Description Of The Tabs Of The Mobile App

    DESCRIPTION OF THE TABS OF THE MOBILE APP Below is a description of the tabs of the PRANA ONLINE mobile application as a component of the ecosystem (service). Image «Menu of tabs» of the PRANA ONLINE mobile application. - Selecting the recuperator...
  • Page 15: Choice Of Recuperator

    SELECTING THE RECUPERATOR The contents of the tab are shown graphically below. PRANA Recuperator -67 dBm SCAN The tab allows you to select the management system, give a name, change the name, change the password, set the connection method, connect to the storage and delete the...
  • Page 16: System Management

    SYSTEM MANAGEMENT For ease of use (if there are 2 or more systems) you can assign each system an individual name and password to access All further actions take place on the tab «Select Recuperator». To rename the system, press next to the system you are currently connected to, select «Rename»;...
  • Page 17 If all done correctly, the system display will show RESET. Parameters that will assume the factory state: • The system name will assume the factory value: PRANA Recuperator; • The system password will be set to factory default: 0000;...
  • Page 18: Control

    CONTROL The contents of the tab are shown graphically below. The tab allows you to control the selected system, change motor speeds, set operating modes and use the functions of the mobile app.
  • Page 19 Purpose of the Control tab buttons. 1 - Turning Off 2 - Manual control of air streams 3 - Separate airflow control 4 - Minimal mode 5 - «Air current» mode 6 - Mini-heat function 7 - Dimming the brightness of the display 8 - «Sleep Timer»...
  • Page 20: Passive Operation Mode

    PASSIVE OPERATION MODE Passive mode is the operation of the recuperator when motors are switched off. It consists in movement of uncontrolled air flows through the recuperator. This is done by the difference of pressure and temperature inside and outside the room. UNFREEZE FUNCTION During the cold period in case of improper operation of the wall or combined heat exchanger there is a risk of icing of...
  • Page 21: Manual Operation

    MANUAL OPERATION Manual mode is used as the default operating mode. The performance of the system changes in 10% increments. The speed modes are switched with the +/- buttons on the remote control or in the mobile app. You can switch the system of simultaneous streams control by pressing 2x on the remote control or in the mobile...
  • Page 22: Minimum Mode

    MINIMUM MODE «SUP1, EXT1» on the information panel - the system operates in «Minimal» mode. Minimal is the quietest mode of the system, designed to work at night or when there is no need for more air exchange. It is activated by a button on the remote control or by the button in the mobile application.
  • Page 23: Sleep Timer Mode

    SLEEP TIMER MODE On the display panel - the selected time of the set sleep timer is displayed. The function is activated with the button on the remote unit. Switching the timer configuration is set with the controller button on the remote control unit. The function is activated with the button on the remote control.
  • Page 24: Mini-Heating Mode

    MINI-HEATING MODE When the outdoor temperature is below 4 °C, in order to prevent the heat exchanger from freezing and the condensate escape route, the system must be operated with the «Mini- heating»* and «Winter mode»* activated. The function is activated by pressing on the remote control in the mobile app or...
  • Page 25: Device Update And Software

    PRANA is not responsible for the fact that the customer was not able to use the PRANA ONLINE services on their devices and/or does not use them correctly. This is due to the large number of manufacturers of multimedia devices for which it may take some time to adapt the services.
  • Page 26: Sensors Indicators

    SENSORS INDICATORS (TEST) The contents of the tab are shown graphically below. Humidity Air pressure 18.6 SUPER 20.0 The information from the sensors can be checked in real time. The function is in the testing phase. Sometimes errors in operation may occur. The availability of certain sensor values depends on the configuration of your recuperator.
  • Page 27 Correspondence of «Sensor Indicators» values. 1 - Air quality index, TVOC 2 - Carbon dioxide equivalent level, CO 3 - Relative humidity, Rh% 4 - Atmospheric pressure, mm Hg. 5 - Tidal air after recuperation, С о 6 - Tidal air to recuperation, С...
  • Page 28: Programmed Control

    PROGRAMMED CONTROL (TEST) The contents of the tab are shown graphically below. Bounded Supply Heater Extract Auto Auto+ CREATE NEW Operation of the system by schedule. Ability to select the modes of operation on certain days and time intervals. The function is at the testing stage. Sometimes errors in operation may occur.
  • Page 29: Programmed Control Function

    PROGRAMMED CONTROL FUNCTION (TEST) The function allows you to pre-program the operating mode of the recuperator at certain time intervals. The function is in the testing phase. Sometimes errors may occur in the operation. To create a new rule, click Create new. In the «Start»...
  • Page 30 Bounded Supply Extract Heater Auto Auto+ Bounded Supply Extract Heater Auto Auto+ Start: 10:00 Finish: 11:00 MONDAY 10:00 - MONDAY 11:00 Supply 10/10, Extract 10/10, Heater is off TUESDAY 10:00 - MONDAY 11:00 Supply 1/10, Extract 10/10, Heater is off CREATE NEW SAVE CANCEL...
  • Page 31: Statistics And Graphs Account

    STATISTICS AND GRAPHS ACCOUNT (TEST) The contents of the tab are shown graphically below. No device is connected! Please, connect to device via WiFi to use this feature Ability to view the indicators from the system sensors at different time intervals. The function is in the testing phase.
  • Page 32: Account

    The tab also allows you to read the «GDPR AGREEMENT» policy and select the interface language. In some PRANA ventilation systems, in addition to the Bluetooth control method, there is a control with Internet connection use* (the system can be equipped with a Wi-Fi module*).
  • Page 33 Internet service «PRANA ONLINE». The standard set of functions will work without PRANA ONLINE service, but by using a mobile application (via Bluetooth), remote control, remote control unit, and statistics from the recuperator is not transferred to the storage.
  • Page 34: Dc Console Malfunction

    DC CONSOLE MALFUNCTION If a malfunction of the remote control occurs during operation, follow the steps in this manual. The images show the back side of the remote control. • Press on the ribbed part of the back cover. • Slide the cover outside of the remote control.
  • Page 35 • Rotate the batteries around their axis (as shown in the illustration) and check for visual traces of soiling. The type of batteries used in the remote control is AAA/ R03/1.5V. • If the batteries are missing, proceed to install the batteries (see «Replacing the Remote Control Batteries»...
  • Page 36: Battery Replacement Remote Dc

    BATTERY REPLACEMENT REMOTE DC • Remove the used batteries. • Insert new batteries, making sure that the «+» and «-» polarities indicated in the compartment. Insert the batteries starting on the «-» side. • Place the back cover on the remote control, push it all the way in and make sure the cover is in its original position.
  • Page 37: Cleaning The Contacts Of The Remote Control

    • Do not use new batteries together with old ones or different types of batteries. • Do not use an accumulator instead of batteries. • For the new PRANA system, batteries are included. They must be installed in the remote control before they can be used.
  • Page 38: Air Duct Maintenance

    AIR DUCT MAINTENANCE During operation of the ventilation system, elements of the network can become dirty. It is necessary to service the network by cleaning each of the elements. 1. Maintenance of exhaust and tidal air diffusers and louvers (if necessary): 1.1 Remove the diffusers and louvers and wash them with a warm solution of neutral detergent.
  • Page 39: Ventilation System Maintenance

    VENTILATION SYSTEM MAINTENANCE Maintenance consists of inspecting, if necessary, cleaning surfaces and checking the electrical components of the ventilation system. Observe safety rules when carrying out maintenance or repair work. Before starting maintenance or repair work make sure that the ventilation system and accessories are disconnected from the power supply.
  • Page 40 9. Carefully inspect the fan blades. Covering with dust or other materials can imbalance the fan blades. This causes vibration and accelerates wear of the motor bearings. 10. Check for contaminants in the air passages of the recuperator and each item to be disassembled (including side screens of recuperator).
  • Page 44 MODEL RANGE: PRANA 2022®...
