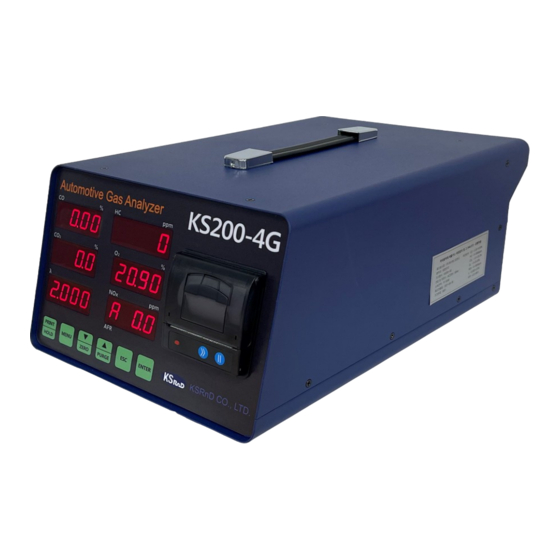

Automotive gas analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KS200-4G
Automotive Gas Analyzer
Manual
(Ver. 0.1.4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS200-4G and is the answer not in the manual?

Questions and answers

Related Manuals for KS RnD KS200-4G

Summary of Contents for KS RnD KS200-4G

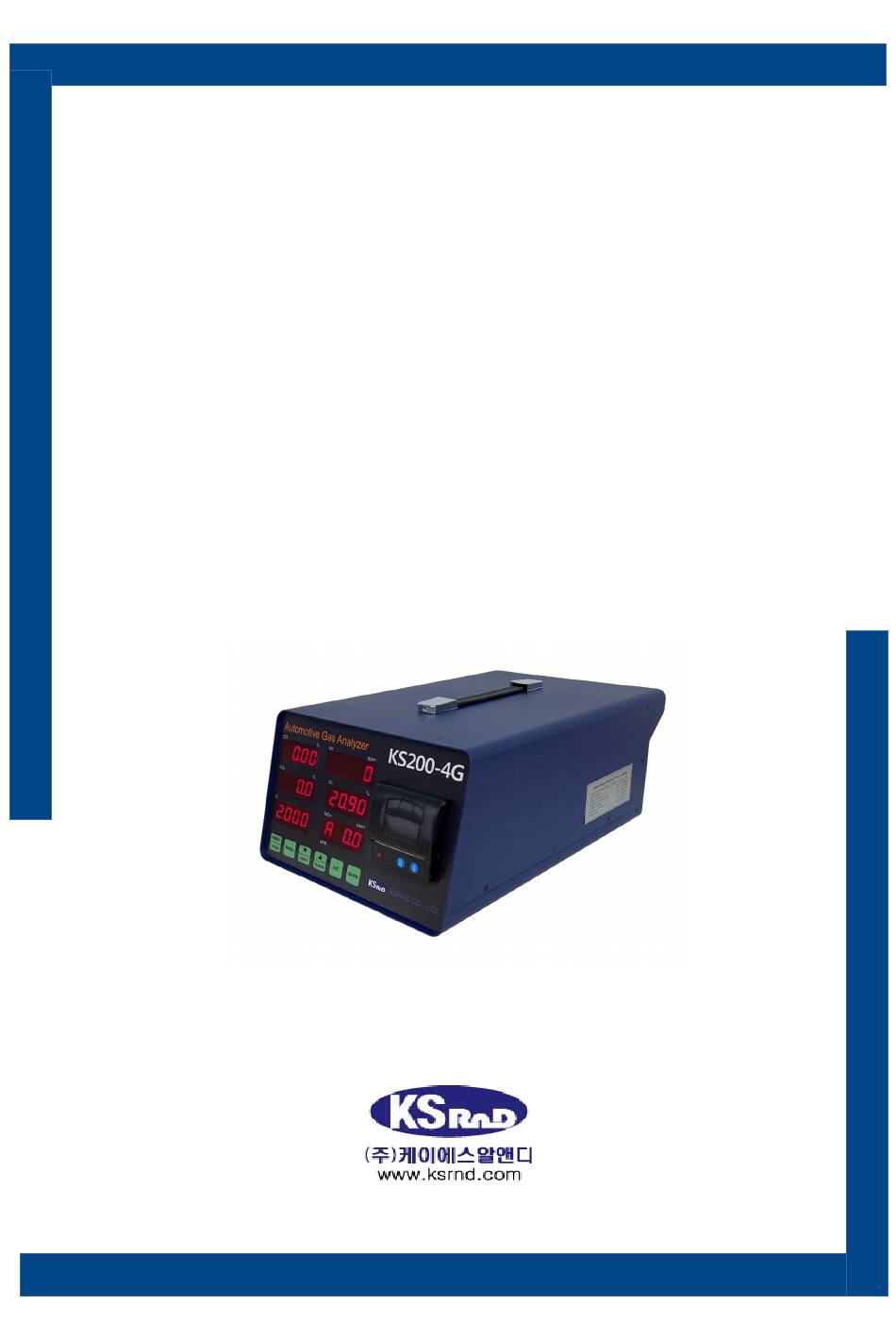

  • Page 1 KS200-4G Automotive Gas Analyzer Manual (Ver. 0.1.4)

  • Page 2: Table Of Contents

    Contents 1. Safety guideline ……………………………………………………………………………… …………………………………………………………………………… Purpose of use …………………………………………………………………………… Terms of use 2. Product descriptions ………………………………………………………………………… 4 2-1 Outlook …………………………………………………………………………………… 2-2 Front Part …………………………………………………………………………………… 2-3 Back Part …………………………………………………………………………………… 2-4 Specification …………………………………………………………………………………… 3. Installation and precautions ……………………………………………………………… 3-1 How to install …………………………………………………………………………………… 4.

  • Page 3: Safety Guideline

    1. Safety guideline 1-1. Purpose to use KS200-4G measures the concentration of automobile exhaust gas to diagnose and maintain the condition of the vehicle. . 1-2. Terms of use ① Use the rated voltage. ② An altitude of less than 1000m and a humidity of less than 85%.

  • Page 4: Specification

    KS200-4G MANUAL . Specification 2-1. Product ① Full ② Front ③ Side ④ Back 4/26...
  • Page 5 KS200-4G MANUAL 2-2. Display 2-3. Back ⑨ ④ ⑦ ⑧ ③ ⑥ ⑤ ① ② NAME Description ① Power switch 220V (1A Fuse in it) ② RS232 9Pin connector(communication) Dust filter Remove dust ③ ④ INLET Gas inlet or Cal gas inlet (Using pump) ⑤...
  • Page 6 Main filter Water separation & remove dust ⑧ WATER OUTLET Water out ⑨ Cal gas inlet (NOT using pump) 2-4. KS200-4G Specification (Blue is Option) Measurement items CO, HC, CO2,O2,NOx, Ramda, AFR CO,HC,CO2 : Non-Dispersive Infrared Measurement principle O2,NOx Electro-Chemical 9.99%...

  • Page 7: Installation And Precautions

    KS200-4G MANUAL Installation and precautions 3-1. Installation ① Insert one end of the probe hose into the measurement probe and the other end into the analyzer GAS INLET. *The exhaust of a car can pulse, especially at low RPM, drawing air in causing bad readings ensure the flexible probe is fully inserted.

  • Page 8: Measurement Mode

    KS200-4G MANUAL Measurement Mode 4-1. Warm up ① Power [ON] and start initialization. 0.63 WarM tIME ② Warming up is carried out step by step, and the initial count value may vary depending on the surrounding temperature or the state of use of the device.

  • Page 9: Ready

    [OFF] when the measurement is not performed for a long time. * KS200-4G automatically turns off the pump after 30 minutes to maintain the standby state. ② After 10 minutes from the ready state, it automatically changes to STAND-BY mode.

  • Page 10: Measurement

    KS200-4G MANUAL 4-4. Measurement ① Probe put on clean air press ZERO key start cal. ② Insert the probe of the measuring instrument and press ENTER key measure the exhaust gas. ③ After measuring it, remove the probe from the exhaust port. press PURGE key Clean inside with fresh air for value reduce to “o”.

  • Page 11: Print

    KS200-4G MANUAL 4-6. Printer ① When the result value comes out, press the key to print it. ② Print mark. KS200-4G Automotive Emission Analyzer 2021/1/1 AM 09:00:00 0.00% 0000ppm CO₂ 00.0% O₂ 20.9% 0000ppm λ 1.000 00.0 KSRnD CO., LTD.

  • Page 12: Hc Test

    KS200-4G MANUAL NAME FUNCTION ① Use it when choosing a menu or additional function. SELECT ② PRINT print ③ UP/ PURGE Value Purge or Increase ④ DOWN/ZERO Move position Use when ending the selection mode and switching to the ⑤...
  • Page 13 KS200-4G MANUAL 5-2. HC Test During vehicle exhaust gas measurement, the level of contamination is indicated by measuring the sample collection probe line and the hydrocarbon (HC) component accumulated inside the analyzer. ① In ready mode press MENU key move on “ HC TEST ”.

  • Page 14: Choice Fuel

    KS200-4G MANUAL 5-3. Choice FUEL AFR. choose the fuel for the measurement vehicle, calculrate RAMDA and ① In ready mode press MENU key move on “FUEL ****” . ▼ , ▲ ENTER ②press choose fuel press key. Fuel start GASOLIN → LPG → CNG → ALCOHOL and the end.

  • Page 15: Pef

    KS200-4G MANUAL * For Lambda calculation, based upon measurements of CO, CO2, HC and O2, the following formula is standardized: Displayed on the instrument as LAMBDA (O). Gasoline Alcohol 1.8500 2.5000 3.8300 3.0000 0.0000 0.0000 0.0000 0.5000 14.7 15.5 16.9 * LAMBDA CALCULATIONS - Brettschneider 5-5.

  • Page 16: Set Date

    KS200-4G MANUAL ① In ready mode press MENU can check it. 0.500 λ 5-6. Set date Can set date and time. ① Press the MENU key in standby mode to move to the time setting. Now you can see the current time.
  • Page 17 KS200-4G MANUAL *Notice Check the gas pressure meets the prescribed value. 5-7-2. Calibration gas setting 1) material 항목 내용 Standard gas Standard gas with a test report from an accredited institution. CO : 1.00~6.00%m C3H8 : 500~2000ppm, CO2 : 12~15%...
  • Page 18 KS200-4G MANUAL 5-7-3. Calibration ① Place the analyzer in [standby]. modE λ ② Press the MENU key until the screen below appears. λ ③ Press the ENTER key, it will be automatically [zero adjustments]. λ ZEro 18/26...
  • Page 19 KS200-4G MANUAL ④ After [ZERO Adjustment], it displays the previously set gas concentration value, and the top spot blinks. 1.20 11.1 1.05 λ ⑥ Pressing the ▲ key increases the value of the blinking number and sets the number. Pressing the ▼...
  • Page 20 KS200-4G MANUAL ⑧ [CAL] Connect the tube of the standard gas cylinder to the inlet and turn the cylinder secondary valve of the standard gas counterclockwise to adjust the flow meter scale to 4 to 6 L/min. 1.22 10.1 1.25 λ...
  • Page 21 KS200-4G MANUAL ** When operating the pump during calibration (use to inject gas at the same pressure as in the measurement mode.) Pressing the PURGE key in-state ⑦ activates the pump and displays the current pressure. (Ex: P 100) 1.20 11.1...

  • Page 22: Others

    KS200-4G MANUAL 6. Others 6-1. Flow diagram 6-2. Electric block diagram 22/26...

  • Page 23: Dust Filter

    KS200-4G MANUAL 6-3. Dust Filter ① Filter contains a lot of moisture or contaminated, please change Dust filter. ③ Separate the filter from the rubber. ④ Replace the filter and reassemble it in reverse order. (Please pay attention to the direction.)

  • Page 24: Probe

    KS200-4G MANUAL 6-4. Probe ① Be careful not to touch end of the probe tip. with water. ② After use, the probe tip is hot, so be careful of burns. 24/26...

  • Page 25: Accessories

    KS200-4G MANUAL 6-5. Accessories ⑩ ① ② ④ ⑦ ⑪ ③ ⑤ ⑥ ⑨ ⑧ Part No. NAME Description ① GP-001 Main filter Water separation & remove dust ② GP-002 Filter rubber Fix Main filter & Dust filter ③ GP-003...
  • Page 26 KS200-4G MANUAL 26/26...
