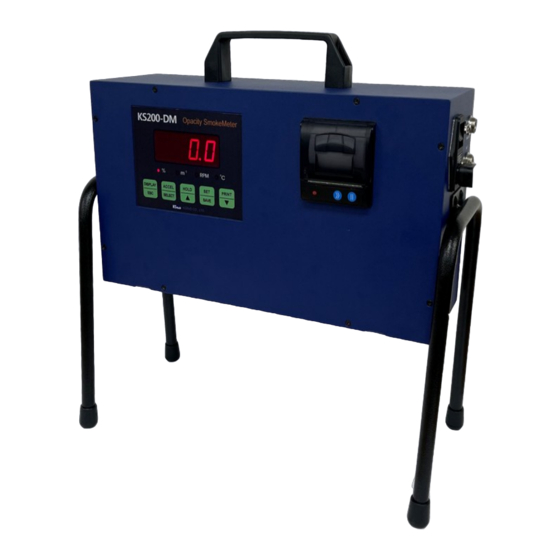

KS RnD KS200-DM Manual

Opacity smoke meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KS200-DM
OPACITY SMOKE METER
MANUAL
(Ver. 0.4.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS200-DM and is the answer not in the manual?

Questions and answers

Related Manuals for KS RnD KS200-DM

Summary of Contents for KS RnD KS200-DM

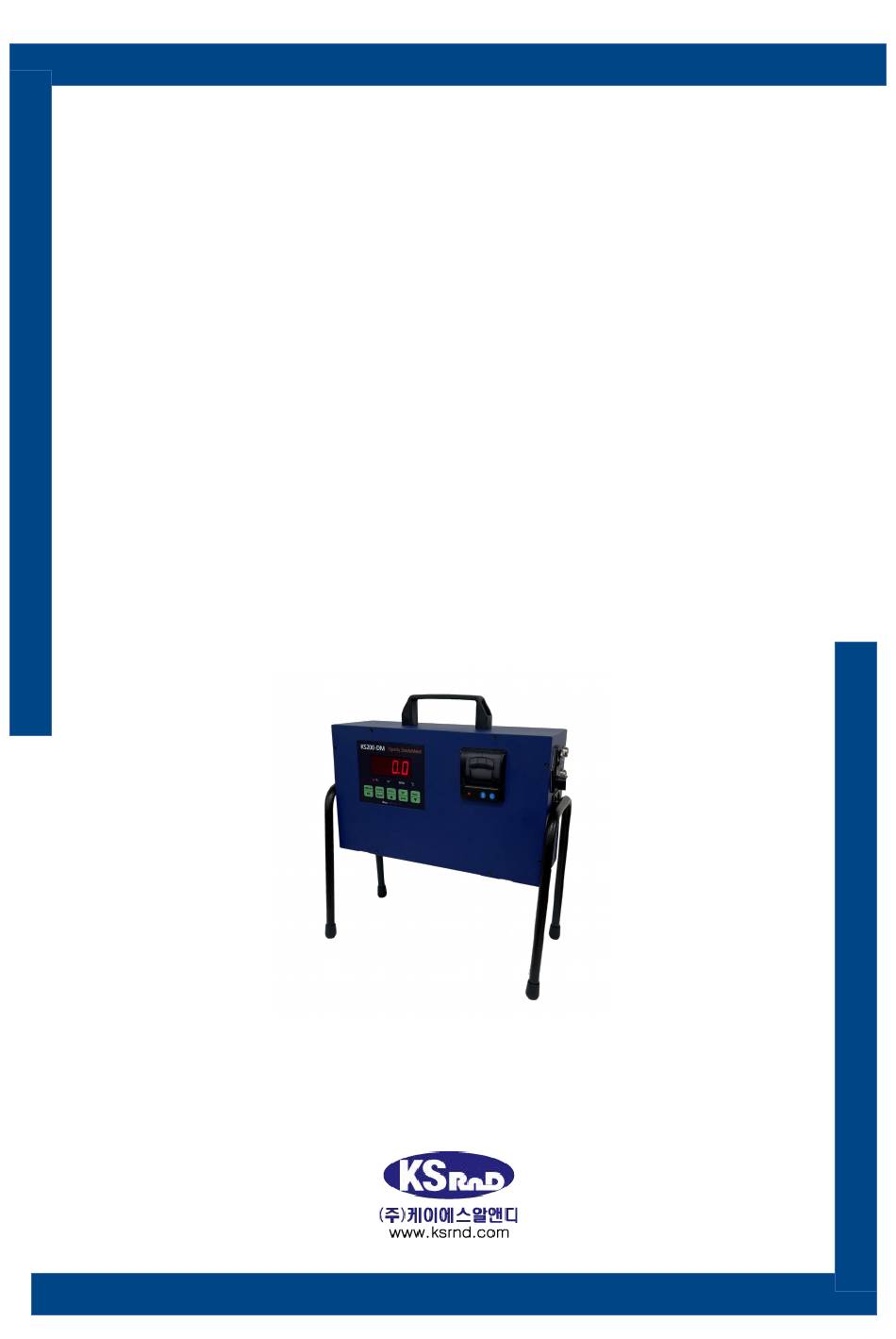

  • Page 1 KS200-DM OPACITY SMOKE METER MANUAL (Ver. 0.4.0)

  • Page 2: Table Of Contents

    contents 1. Safety guideline ……………………………………………………………………………… …………………………………………………………………………… Purpose of use …………………………………………………………………………… Terms of use Product description s……………………………………………………………………… 4 2-1 Outlook …………………………………………………………………………………… 2-2 Front Part …………………………………………………………………………………… 2-3 Back Part …………………………………………………………………………………… 2-4 Specification …………………………………………………………………………………… 3. Installation and precautions ……………………………………………………………… 3-1 How to install ………………………………………………………………………………...

  • Page 3: Safety Guideline

    1. Safety guideline 1-1. Purpose to use KS200-DM measures the concentration of automobile exhaust gas to diagnose and maintain the condition of the vehicle. . 1-2. Terms of use ① Use the rated voltage. ② An altitude of less than 1000m and a humidity of less than 85%.

  • Page 4: Product Description S

    KS200-DM Manual . Specification 2-1. Product ① Full ② Front ③ Side ④ Back 4/15...

  • Page 5: Front Part

    KS200-DM Manual 2-2. Display 2-3. Back and Side ① ② ③ ④ ⑤ ⑥ ⑦ NAME Description ① Refresh the cell with outside air ② INLET Gas inlet Power switch 220V (1A Fuse in it) ③ ④ RS232 9Pin connector(communication) ⑤...

  • Page 6: Specification

    KS200-DM Manual 2-4. Specification NAME Description Model Name KS200-DM Measurement Smoke opacity , RPM, ℃ items Measurement Partial flow opacimeter principle Measuring range 0.0~100.0% 0.00~21.42 0~8000rpm 0~150℃ opci Resolution 0.1% 0.01m-1 1rpm 1℃ function Repeatability Under 1% Response time 0.5sec (90%)

  • Page 7: Installation And Precautions

    KS200-DM Manual Installation and precautions 3-1. How to Install follow the picture, lay down the machine and tight the bolt (proceed both side) Stand the main body of the machine correctly, level it up, and tighten it strongly so that it does not shake.

  • Page 8: Display

    KS200-DM Manual 4-2. Display ① Measure mode tap [Display] key move on next step, The corresponding LED is on. Opacity Meter ● ○ ○ ○ ℃ Smoke (%) → Light absorption coefficient (m-1) → RPM (rpm) → Oil temperature (°C)

  • Page 9: Measurement( Peak Hold)

    KS200-DM Manual 4-4. Measurement (Free acceleration mode) ① Before stating measurement, check whether the selection mode is selected as the peak hold mode. ② Insert the probe of the measuring instrument. Step on the accelerator pedal. ③ Press [Accel] key and [Set] key choose measurement.

  • Page 10: Select Mode

    KS200-DM Manual Opacity Dust Meter 2021/1/1 AM 09:00:00 Free Acceleration Test Opacity(%) 3750 3550 3300 (30.0) Diff ( 5.0) ----------------------------- Judgment PASS ----------------------------- (ex Print) 5. MODE 5-1. Key & Function NAME Description Use it when choosing a menu or additional function.

  • Page 11: Set Zero, Span

    KS200-DM Manual NAME Description ① Set Zero, Span ② DATE Set Date ③ HOLD HOLD Mode ④ Display version ⑤ TEST Display AD value ⑥ Display value at PC ⑦ Choose RPM (Factory mode) 5-2. Set Zero, Span ① Press the SET key in the measurement mode to move to the "CAL".

  • Page 12: Remote Controller

    KS200-DM Manual 6. Remote Controller (Options) Remote control can operate the measuring instrument from a long distance. It helps someone who operate the measuring instrument in the driver's seat. 6-1. Connet remote controller Connect the remote control to the remote control terminal by referring to the chapter 2 configuration diagram.

  • Page 13: Probe

    KS200-DM Manual 7-2. Probe ① Be careful not to touch the end of the probe tip. ② After use, the probe tip is hot, so be careful of burns. 7-3. About error Code Error Check point It’s Zero error. Make sure the probe end is placed in a contaminated place. Make sure the Zr Er ①...

  • Page 14: Accessories

    KS200-DM Manual 7-4. Accessories ⑨ ① ② ⑤ ⑥ ③ ④ ⑩ ⑧ ⑦ Part No. NAME Description ① DP-001 Power cable Power cable ② DP-002 Probe Smoke probe ③ DP-003 Probe handle Smoke probe handle ④ DP-004 Hose band Probe hose band ⑤...
  • Page 15 KS200-DM Manual 15/15...
