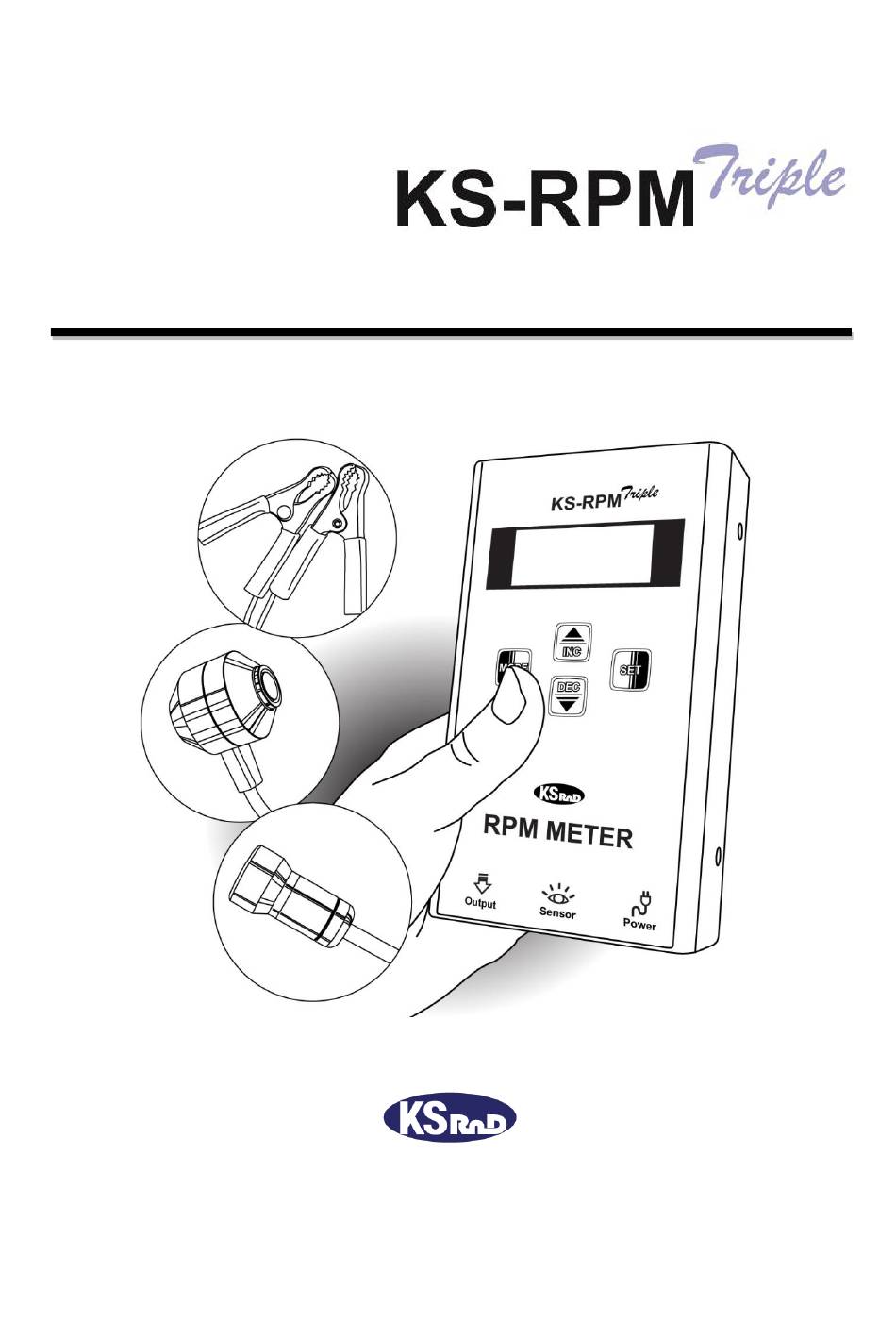

- Page 1 User Manual KS RnD CO., LTD.
- Page 2 KS-RPM Triple User Manual User Manual V0.55 Table of contents ………………………… User Precaution ………………………… Composition Item ………………………… Option ………………………… Technical Specifications ………………………… Material ………………………… Preparation before Use ………………………… Product Name ………………………… How to Connect Devices ………………………… How to Use...
-
Page 3: User Precautions
KS RnD CO., LTD. User Precautions Please use this product after you have read the manual carefully to use the device more safely and efficiently. <General Safety Compliance> 1. Don’t use this product except for those who know how to use. - Page 4 KS-RPM Triple User Manual Composition Item Composition Contents Product Machine Sensor 1 Battery clamp of measuring RPM (3 m) Sensor 2 Cigar lighter jack of measuring RPM (1 m) Sensor 3 Vibration sensor of measuring RPM (2 m) Sensor 4...
-
Page 5: Technical Specifications
KS RnD CO., LTD. Technical Specifications Details Contents Analysis Range 10 ~ 5,000 rpm Resolving Power 10 rpm Analysis Range 0 ~ 200 ℃ Temp. Resolving Power 0.1 ℃ Use Temperature -10 ~ 45 ℃ Use Humidity 30 ~ 90 %... -
Page 6: Preparation Before Use
KS-RPM Triple User Manual Preparation before use How to charge the battery As shown in the figure below, charger is connected to the terminal as in the Charge time & use time Charge time About 4 times Use time About 10 times... - Page 7 KS RnD CO., LTD. How to Connect Devices ▪ Use battery clamp 1) Connect the battery clamp (8 pin connecter) to of device. 2) Connection (+) terminal -> Red clamp (-) terminal -> Black clamp ※ Please connect the terminal correctly, even though miss match of the terminals doesn’t harm of device.
- Page 8 KS-RPM Triple User Manual ▪ Using oil temperature sensor 1) Connect the oil temperature sensor (8 pin connecter) to of device. , and input your sensor to place that measure the car’s 2) Turn the power on engine oil. ※ Watch out burn since engine oil is hot.
- Page 9 KS RnD CO., LTD. 2) Using key, select the number of cylinder. The order of cylinder number movements 1→2→3→4→5→6→8→10→12→1. 3) Using key, set-up cylinder number. ▪ How to set-up manual factor(only battery clamp) When you want to measure the value more correctly.
- Page 10 KS RnD CO., LTD. Techno-park 201-906-1, 388, Songnae-daero, Wonmi-gu, Bucheon-si, Gyeonggi-do 420-733 Korea Tel : 82-32-325-6920 Fax : 82-32-325-6921 www.ksrnd.com...
