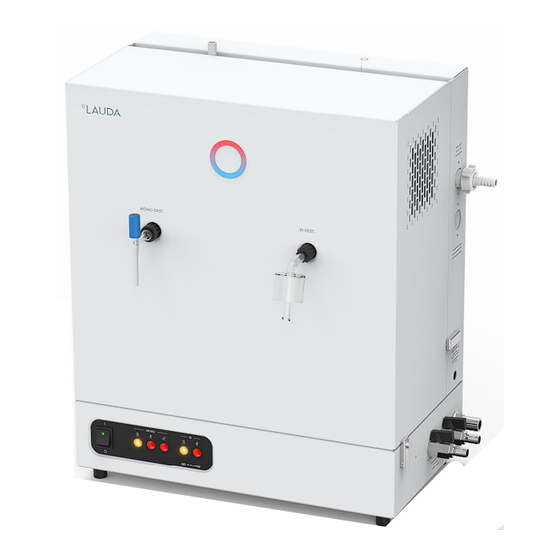

Lauda Puridest PD 2 D Operating Instructions Manual

Bi distillation apparatus
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Instructions

Puridest Bi Distillation Apparatus
PD 2 D, PD 4 D, PD 8 D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Puridest PD 2 D and is the answer not in the manual?

Questions and answers

Summary of Contents for Lauda Puridest PD 2 D

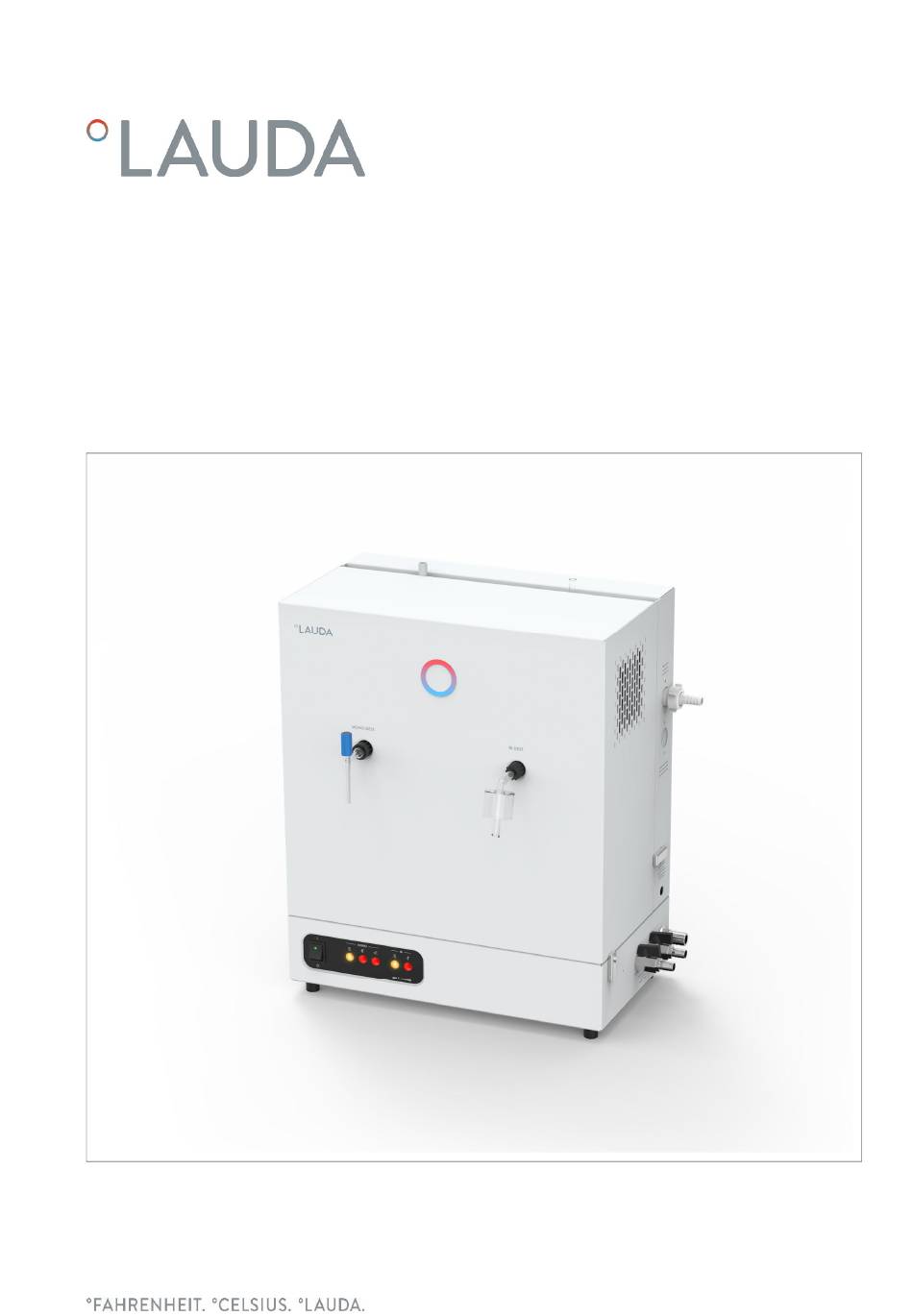

  • Page 1: Operating Instructions

    Operating Instructions Puridest Bi Distillation Apparatus PD 2 D, PD 4 D, PD 8 D...
  • Page 2 2 / 32 Puridest Bi Distillation Apparatus 09/2020...
  • Page 3 LAUDA Puridest Bi Distillation Apparatus models PD 2 D, PD 4 D, PD 8 D produce ultra-pure, bacteria and pyrogen-free distillate with a very low conductivity (approx 1.6 µS/cm at 25 °C). The distillate is in conformity with DAB regulations and the regulations of international pharmacopoeia.
  • Page 4 4 / 32 Puridest Bi Distillation Apparatus 09/2020...

  • Page 5: Table Of Contents

    Content Operating Instructions ................................... 1 Using of the Bi Distillation Apparatus ........................... 7 Intended Use ....................................7 Improper Use ....................................7 Warranty ....................................8 Before Initiation ..................................8 Transport, Set-up and Location of the Distillation Apparatus ....................8 Removing the Transport Protection of the Glass Condenser ....................9 Operating Voltage .................................
  • Page 6 13.2 PD 4 D - version 220 V / 3 ~..............................19 13.3 PD 4 D - version 400 V / 3 ~..............................19 13.4 PD 8 D - version 220 V / 3 ~..............................20 13.5 PD 8 D - version 400 V / 3 ~..............................20 14 Connection to the mains supply ............................

  • Page 7: Using Of The Bi Distillation Apparatus

    Intended Use In LAUDA Puridest Bi Distillation Apparatus models PD 2 D, PD 4 D and PD 8 D, electric heating elements serve to boil water in the mono stage boiler (left-hand side) and evaporate it. The steam is led to the steel condenser of the mono stage where it condenses on a water-cooled cooling coil.

  • Page 8: Warranty

    For all laboratory apparatus and their accessories from LAUDA-GFL Gesellschaft für Labortechnik mbH, there is a war- ranty claim, as well for spare parts, repairs and modifications, carried out by LAUDA-GFL. In order to identify defective units, we require both model and serial number on the nameplate, left-hand side of the Distillation Apparatus and, if appli- cable, a copy of the invoice.

  • Page 9: Removing The Transport Protection Of The Glass Condenser

    Removing the Transport Protection of the Glass Condenser When installing the glass condenser and the glass fittings, pay special attention due to danger of glass breakage. The glass condenser and the glass fittings are placed beneath the hood of the Distiller. In order to be able to remove the hood, two each quick-release catches on each side of the unit as well as two hidden screws (see photo below) between the hood and the basic housing need to be loosened.

  • Page 10: Water Connections

    Water Connections All water connections of the Distillation Apparatus, except the distillate withdrawals, are situated on the right-hand side of the unit. Hoses for water inlet and outlet are not included in the standard scope of supply. Tap water inlet ① The tap water inlet provides the Distillation Apparatus with water through a solenoid valve.

  • Page 11: Cooling Water Outlet ⑥

    Cooling water outlet ⑥ Connect a ¾" temperature-resistant hose to the cooling water outlet. It must not be longer than approx. 1.5 m. The hose must be led into a drain on a lower level and must have a slope on its complete length. It must be ensured that the cooling water flows off without causing backwater.

  • Page 12: Functional Description

    Distillation Apparatus for double distillation LAUDA Puridest Bi Distillation Apparatus models PD 2 D, PD 4 D und PD 8 D work fully automatically. After switching on the main switch oft he Distillation Apparatus, the green pilot lamp in the main switch (I) will light up.

  • Page 13: Maintenance, Service And Trouble Shooting

    Maintenance, Service and Trouble Shooting Caution: Before service and maintenance always let the Double Distiller cool down! Danger of scaldings! Caution: Before opening the Distillation Apparatus and before cleaning always cut off power (pull the plug or switch the main switch off). Danger of electrical shocks! 10.1 Descaling...

  • Page 14: Water Shortage In Mono Or Bi Stage

    The operational interruption "Clean" is reset by switching the unit's main switch off and then on again after 10 seconds. The LAUDA-GFL Puridest Bi Distillation Apparatuses are produced of first class materials. Nevertheless, the unit should only be subjected to mechanical strain within sensible limits.

  • Page 15: Disposal Of Old Units

    LAUDA-GFL will take responsibility, within the scope of the legal directives, for an environmentally sound handling and disposal of all used LAUDA-GFL units as of the production year 1995 that are returned to us free of charge and will have it materially recycled.

  • Page 16: Technical Data

    Technical Data 12.1 Puridest Bi Distillation Apparatus models PD 2 D, PD 4 D PD 2 D PD 4 D Exterior dimensions (W x D x H) 530 mm x 260 mm x 495 mm 570 mm x 280 mm x 610 mm Distillation capacity 2 l / h mono or bi distillate 4 l / h mono or bi distillate...

  • Page 17: Puridest Bi Distillation Apparatus Model Pd 8 D

    12.2 Puridest Bi Distillation Apparatus model PD 8 D PD 8 D Exterior dimensions (W x D x H) 735 mm x 390 mm x 720 mm Distillation capacity 8 l / h mono or bi distillate Distillate quality Mono distillate approx.

  • Page 18: Circuit Diagram

    Circuit diagram Sensor board Clean Heating element mono stage Heating element mono stage Heating element mono stage Heating element bi stage Heating element bi stage Heating element bi stage Low water cut-off mono stage Low water cut-off bi stage Pilot lamp Clean LED 6 V DC Pilot lamp Low Water mono stage LED 230 V AC...

  • Page 19: Pd 4 D - Version 220 V / 3

    13.2 PD 4 D - version 220 V / 3 ~ 13.3 PD 4 D - version 400 V / 3 ~ 09/2020 Puridest Bi Distillation Apparatus 19 / 32...

  • Page 20: Pd 8 D - Version 220 V / 3

    13.4 PD 8 D - version 220 V / 3 ~ 13.5 PD 8 D - version 400 V / 3 ~ 20 / 32 Puridest Bi Distillation Apparatus 09/2020...

  • Page 21: Connection To The Mains Supply

    Connection to the mains supply The electrical connection must ensure an all-pole separation of the Bi Distillation Apparatus from the mains supply. In- stalled assembly parts, such as CEE shock-proof sockets or main switches, must be installed so as to ensure clear identifi- cation and they must be within easy reach in an emergency case.

  • Page 22: Connection To The Mains Supply (Examples)

    14.1 Connection to the mains supply (examples) Components B1 Shock-proof socket, on-site B2 CEE plug, not assembled, according to IEC standard 60309-2 F1 Mains fuse (on-site, by customers) F2 Mains fuse (on-site, by customers) F3 Mains fuse (on-site, by customers) S1 Main switch (on-site, by customers) 14.1.1 PD 2 D for 230 V...

  • Page 23: Pd 4 D And Pd 8 D For 220 V / 3 ~ At Mains Supply 230 V / 3 ~ / Pe 50 / 60 Hz

    14.1.2 PD 4 D and PD 8 D for 220 V / 3 ~ at Mains supply 230 V / 3 ~ / PE 50 / 60 Hz (see nameplate) PD 4 D and PD 8 D Mains connection through on-site switch S4, all-pole separa- tion from the mains possible.

  • Page 24: Pd 4 D And Pd 8 D For 400 V / 3 ~ At Mains Supply 400 V / 3 ~ / N / Pe 50 / 60Hz

    14.1.4 PD 4 D and PD 8 D for 400 V / 3 ~ at Mains supply 400 V / 3 ~ / N / PE 50 / 60Hz (see nameplate) PD 4 D and PD 8 D Mains connection through on-site switch S4, all-pole sepa- ration from the mains possible.

  • Page 25: List Of Spare Parts

    List of spare parts When ordering spare parts, please always state type and serial number of the unit in question. 09/2020 Puridest Bi Distillation Apparatus 25 / 32...
  • Page 26 Pos. No. Part-No. Article A000089 Float switch 0015583 Tube (Model PD 2 D) 0015205 Tube (Model PD 4 D) 0015206 Tube (Model PD 8 D) 0015207 Seat for float switch A000090 Solenoid valve with A000108 Quantity regulator (Model PD 2 D) A000104 Quantity regulator (Model PD 4 D) A000105...

  • Page 27: Accessories And Options

    Accessories and Options Separate Water Supply, to feed the boiler with softened or desalinated water (pressure > 1 bar / 14.5 psi) and the cooling coil with phosphatised or normal tap water (pressure > 3 bar / 43.5 psi). Accessory must be installed in our works. When a sepa-rate water supply is installed, the hourly capacity of distilled water is reduced by approx.
  • Page 28 Pre-Filter 1 µm, for pre-cleaning the tap water, and to protect the unit from premature contamination. Complete with connections for pressure hose ½" (inner diameter 12.7 mm), including filter candle. The candle should be replaced at least every six months. Pre-Filter with candle Spare candle Part-No.
  • Page 29 09/2020 Puridest Bi Distillation Apparatus 29 / 32...
  • Page 30 30 / 32 Puridest Bi Distillation Apparatus 09/2020...
  • Page 31 09/2020 Puridest Bi Distillation Apparatus 31 / 32...
  • Page 32 LAUDA-GFL Gesellschaft für Labortechnik mbH Schulze-Delitzsch-Straße 4+5 ◦ 30938 Burgwedel ◦ Deutschland Tel.: +49 (0) 5139 9958-0 ◦ Fax +49 (0) 5139 9958-21 E-Mail: info@lauda-gfl.de ◦ Internet: www.GFL.de...

This manual is also suitable for:

Puridest pd 4 dPuridest pd 8 d
