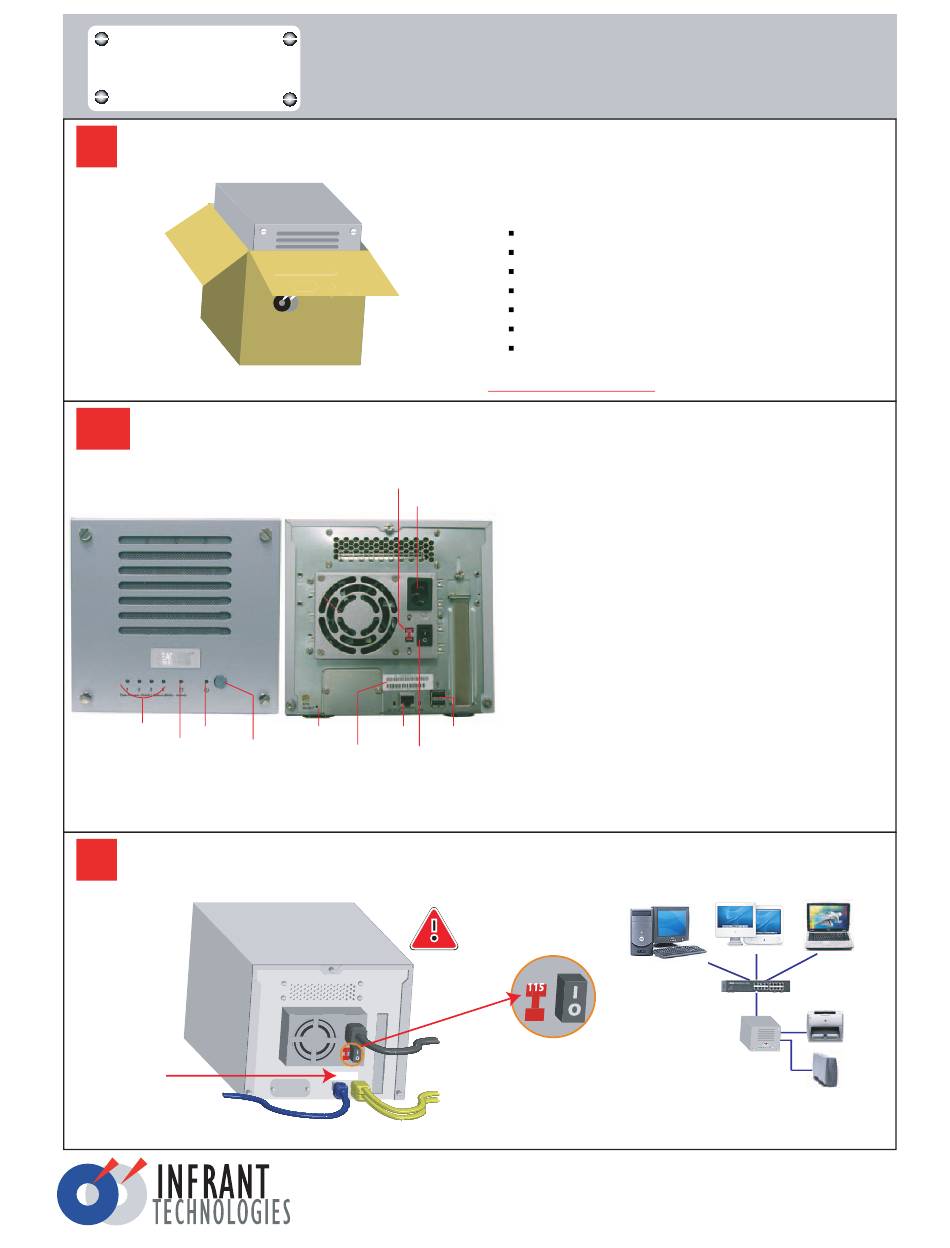

Infrant Technologies READYNAS X6 Getting Started

READYNAS
X6
version B
1
Unpack and Check ReadyNAS X6 Contents
If you purchased a diskless ReadyNAS, please see the Disk Installation Guide before continuing to Step 2
☼ ☼
About ReadyNAS X6
Power LED
Disk LEDs
On/Off Switch
Activity LED
2
Connect ReadyNAS and Power On
Serial Number
is the
MAC Address
(12-digit, starting with
000DA2)
Ethernet cable
(to Network Switch)
Getting Started
Important setup information and guide to ReadyNAS documentation
INFRANT
TECHNOLOGIES
(version B)
Power Voltage Selector
Power Connector
System Reset Ethernet USB Ports
Switch
MAC Address Power Switch
S/N number
Check Power
Voltage Selector
setting before power on
Power cable
USB cables
(to Printers/UPS/USB devices)
Infrant Technologies Inc.
3065 Skyway Ct., Fremont CA 94539
Phone: (510)4 38-7982
Email: support@infrant.com
Web: www.infrant.com
Contents
ReadyNAS X6 Appliance
ReadyNAS X6 Getting Started
ReadyNAS X6 Disk Installation Guide
ReadyNAS Installation CD
AC Power Cable
Ethernet Cable
Warranty Card
•
On/Off Switch - Press once to turn on when device is off. Make sure the
power switch on the back is turned on. Press for 5 seconds to gracefully
shutdown device. Always use the On/Off swith to turn off system when
possible to avoid data loss.
•
Power LED - Blinks slowly, about once every second, during boot. LED
becomes solid when the system is ready.
•
Activity LED - Blinks green for disk activity.
•
Disk LEDs - Solid green for normal disk online, blinks once per second for
disk failure. Fast blink (about 3 times per second) for RAID synchonization.
•
Power Switch - Controls AC power to the ReadyNAS. Use the On/Off Switch
in the front to turn system off gracefully to avoid data loss.
•
Power Connector - When the Power Swith is in the On position, attaching
the power cable will automatically turn on the ReadyNAS. This enables the
ReadyNAS to boot up in the event that power returns after a power failure.
•
MAC Address - The MAC address assigned to the Ethernet interface. Use the
MAC address (12-digit, 000D-A2xx-xxxx) to identify this system in RAIDar
listing.
•
Ethernet Port - Auto-switching 10/100/1000. Use a CAT-5 network cable to
connect to your network.
•
USB Ports - The ReadyNAS supports USB printers, UPS, wireless network
adapters, and USB disks.
•
System Reset Switch - Depressing this switch for 30 seconds while powering
up the system will set the system back to factory default state. See " System
Reset Switch" chapter in ReadyNAS User Guide for details.
(to AC outlet)
© 2005 Infrant Technologies, Inc. All rights reserved.
ReadyNAS, RAIDar, RAIDiator, X-RAID and FrontView are trademarks
of Infrant Technologies, Inc. All other product names are the properties
of their respective owner.
Printed in U.S.A. P/N: IT-05-1-1065-U-01
Connect ReadyNAS
10/2005
