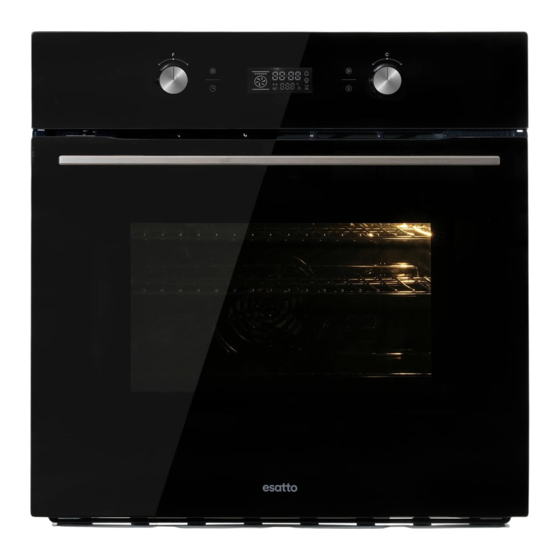

- Page 1 Model/s Version EOP6010TB V1.1 1022 Everything you need for your 60cm 10 Function Built-in Pyrolytic Oven is in this User Manual...
- Page 2 Australia 3121 — requirements of your appliance to ensure optimum performance. Telephone 1300 11 4357 Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team www.esatto.house...
-
Page 3: Table Of Contents
Contents Page 2 Page 4 Welcome Safety Instructions Page 7 Page 8 Installation Your Built-in Oven Instructions Page 9 Page 10 Technical Operation Specifications Instructions Page 16 Page 17 Maintenance Troubleshooting & Cleaning Page 19 Page 20 Purchase Details... - Page 4 READ CAREFULLY AND KEEP This manual explains the proper use of your new FOR FUTURE REFERENCE Esatto oven. Please read this manual carefully before using the product. This manual should be Read this manual thoroughly before first use, kept in a safe place for handy reference.
- Page 5 CHILDREN & VULNERABLE PEOPLE SAFETY • The means for disconnection must be incorporated in the fixed wiring in accordance WARNING: Risk of suffocation, injury or permanent with the wiring specifications. disability. • Accessible parts may become hot during use.
- Page 6 User Manual Safety Instructions (Continued) APPLIANCE USE All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable WARNING: Risk of fire, explosion, electric shock or and are marked with the appropriate symbol. damage to the appliance. CAUTION: During unpacking, the packaging •...
-
Page 7: Installation Instructions
SHELF PLACEMENT WARNING: esatto.house To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. Installation Instructions The shelves should use with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out. - Page 8 5. Temperature & Time selector knob 6. Time button 7. Pause/Cancel button ACCESSORIES Your Esatto Built-in Oven is supplied with: • 2 × Wire Shelf For grill, dishes, cake pan with items for roasting and grilling • 2 × Slider Brackets These shelf support rails on the right and left sides of the oven can be removed.
-
Page 9: Technical Specifications
Technical Specifications Model EOP6010TB Volume (Net/Gross): 71/80L Product Dimensions (W × D × H): 595 × 575 × 595mm Weight (Net/Gross): 39kg / 43kg Supply Voltage 220-240V AC 50Hz–60Hz Rated Power 3.2kW Number of Functions Glass Door Quad-glazed • Technical specifications can be changed without prior notice to improve product quality. - Page 10 User Manual Operating Instructions OVEN FUNCTIONS FUNCTION DESCRIPTION Oven Light: This function enables the user to observe the progress of their cooking without letting heat escape by opening the door. The oven lamp will operate for all functions except Pyrolytic Cleaning function. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food (without the use of any heating elements).
- Page 11 BEFORE FIRST USE • Before using the oven for the first time, read this manual thoroughly, even if you are familiar with this type of appliance. Pay particular attention to the safety instructions, installation instructions and operating instructions. • Remove labels or accessories attached inside the oven. If any, take out the protective film or stickers on front side of the appliance.
- Page 12 User Manual Operating Instructions (Continued) SETTING THE CLOCK After connecting the unit to the power, the display with show “0:00”. 1. Press the “ ” time button to change the hour value. 2. Rotate the Temperature & Time selector knob “ C ” to adjust the hour value between 0–23. 3.
- Page 13 USING THE OVEN LIGHT FUNCTION • Rotate the Function & Time selector knob “ F ” until Oven Light function icon is displayed. • Press the start button “ ” to confirm the setting. • “0:00” and the Oven Light function icon will display on the screen with “:” flashing while the oven cavity light will operate.
- Page 14 User Manual Operating Instructions (Continued) DELAYED START COOKING MODE (Semi-Automatic Programming) This function can be used to start cooking at a set time duration. This setting can only be performed from the oven standby mode and if the oven clock time has been set. 1.
- Page 15 PYROLYTIC CLEANING FUNCTION WARNING: Before activating the Pyrolytic Cleaning function: • Remove any excessive spillage and make sure that oven is empty • Ensure that all accessories, including slider brackets, are removed from the cavity of the oven before performing the Pyrolytic cleaning function as they can be heavily damaged.
-
Page 16: Maintenance & Cleaning
User Manual esatto.house Maintenance & Cleaning esatto.house tenance & Cleaning esatto.house esatto.house PRIOR TO CLEANING YOUR OVEN REMOVING THE OVEN DOOR & INNER GLASS tenance & Cleaning esatto.house The removable door allows for full access to the OVEN (OPTIONAL) tenance & Cleaning... - Page 17 Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Set all controls in the OFF position and disconnect the power. • Call After Sales Support on 1300 11 4357 or email support@residentiagroup.com.au Some minor faults can be fixed by referring to the instructions given in the table below.
- Page 18 User Manual Attach your receipt to this page...
-
Page 19: Purchase Details
Purchase Details For your records, please record details of your purchase below and staple your receipt on the opposite page. Your serial number can be found on the rating plate of your Built-in Oven. STORE DETAILS STORE NAME ADDRESS... -
Page 20: Warranty
User Manual Warranty WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY BUILT-IN OVENS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 21 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service...
- Page 22 – that you can refer to at any time. purchaser; Simply visit the below website, or ask your retailer for help: www.esatto.house/nz/registration h) damage caused by power outages or surges damage caused by pests WARRANTY (eg.
- Page 23 This page is intentionally blank. But if you want to draw something, make notes or even write a recipe, it’s all yours!
- Page 24 everything you need A RESIDENTIA GROUP INITIATIVE...
