Vision ZD2102IN-8 Installation & Operation Manual

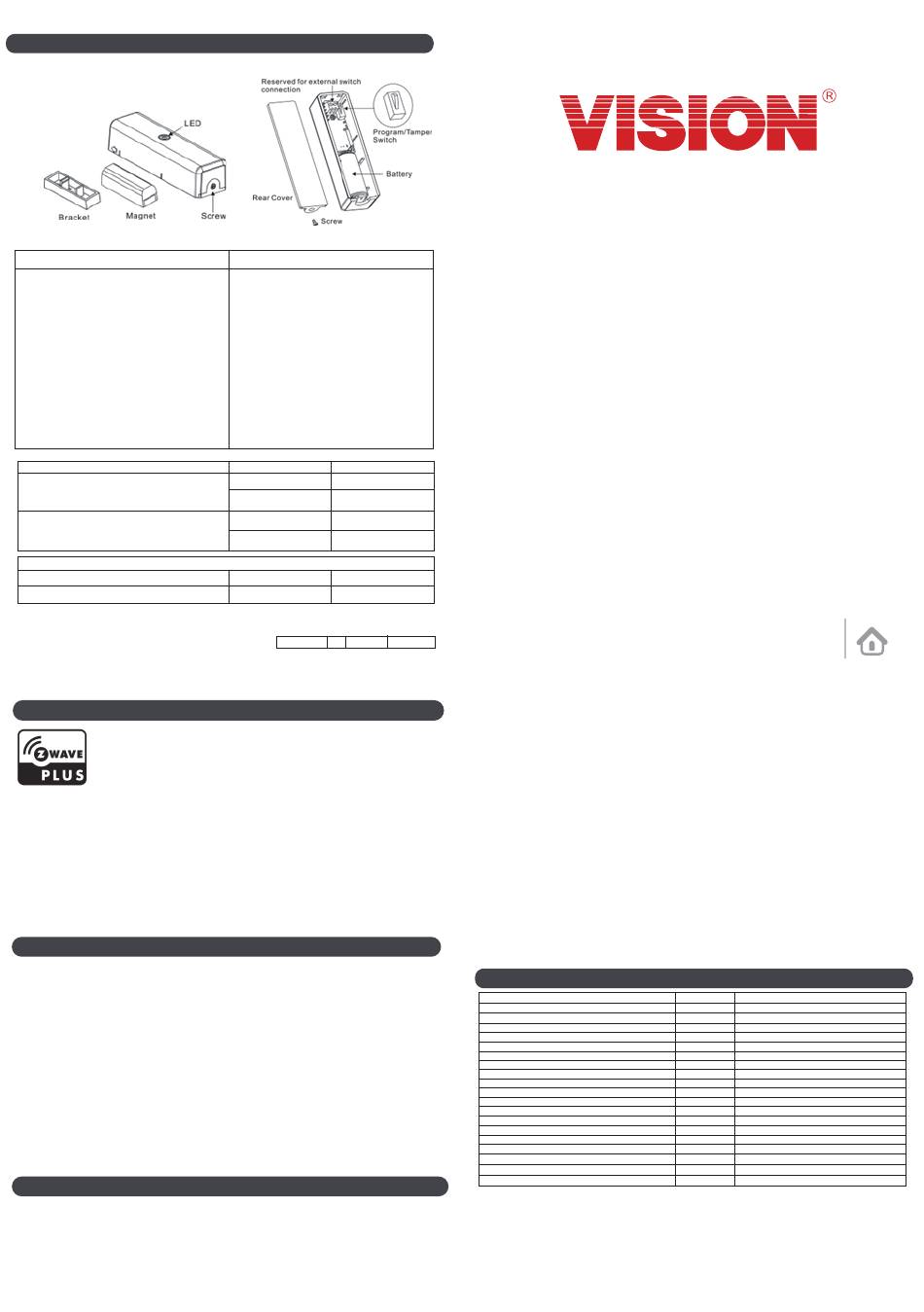

Product Description and Specification:
Specification:
Protocol: Z-Wave™ (ZGM230S)
Frequency Range:
865.22MHz (ZD2102IN-8)
922~926MHz (ZD2102TH-8)
868.42MHz (ZD2102EU-8)
869.00MHz (ZD2102RU-8)
908.42MHz (ZD2102US-8)
912.00MHz (ZD2102USLR-8)
916.00MHz (ZD2102IL-8)
919~923MHz (ZD2102KR-8)
919.80MHz (ZD2102HK-8)
922~926MHz (ZD2102JP-8)
921.42MHz (ZD2102BR-8)
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~ 60°C (5°F ~140°F)
Battery: CR123A * 1PC
Notification V8 Type
Notification Type
Event
Basic Set:
Reed Switch
Introduction
Thanks for choosing the Vision's wireless door/window
sensor of the home security device. This sensor is a
Z-Wave Plus™ V2 enabled device (interoperable, two-way
RF mesh networking technology) and is fully compatible
with any Z-Wave™ enabled network and it's security framework.
Z-Wave Plus enabled devices displaying the Z-Wave PlusTM logo can
also be used with it regardless of the manufacturer, and ours can also be
used in other manufacturer's Z-Wave Plus enabled networks. Monitors
door and window. Sends Z-Wave signal when door or window opening or
closing. Lower power consumption, longer operating distance and battery
life. Improving RF communication. When the device is secure included
into Z-Wave network, above communication will be encrypted.
Limited Warranty
Vision Guarantees that every wireless door/window sensor is free from
physical defects in material and workmanship under normal use for one
year from the date of purchase. If the product proves defective during this
one-year warranty period, Vision will replace it free of charge. Vision
does not issue any refunds. This warranty is extended to the original end
user purchase only and is not transferable. This warranty does not apply
to: (1) damage to units caused by accident, dropping or abuse in
handling, or any negligent use; (2) units which have been subject to
unauthorized repair, taken apart, or otherwise modified; (3) units not used
in accordance with instruction; (4) damages exceeding the cost of the
product; (5) transit damage, initial installation costs, removal cost, or
reinstallation cost. For information on addtional devices, please visit us at
www.visionsecurity.com.tw
Federal Communications Commission Statement
This equipment has been followed to comply with Part 15 of the FCC
Rules. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
Package Content
1pc ZD2102-8 Door Sensor
1pc Magnet
1pc CR123A Lithium Battery
1pc Accessary Pack
1pc Installation & Operation manual
SWITCH TYPE STATUS
Reed Switch 0x06
Tamper
0x07
Switch
Close:0x07
Reed Switch
Open:0x16
Tamper Close:0x00
Switch Open:0x03
Open Close
0xFF 0x00
ZD 2102-8 V0 1120104
Installation & Operation Manual
Door/ Window Sensor
ZD2102IN-8
ZD2102TH-8
ZD2102EU-8
ZD2102RU-8
Z D 2 1 0 2 I L - 8
ZD2102KR-8
ZD2102HK-8
ZD2102JP-8
ZD2102BR-8
ZD2102US(USLR)-8
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try and correct the interference by
one of the following measures:
-Reorient or relocate the receiving antenna,
-Increase the separation between the equipment and receiver,
-Connect the equipment into and outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesirable operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
Command Class
COMMAND CLASS NAME
ASSOCIATION
ASSOCIATION GROUP INFO
BATTERY
CONFIGURATION
DEVICE RESET LOCALLY
FIRMWARE UPDATE MD
INDICATOR
MANUFACTURER SPECIFIC
MULTI CHANNEL ASSOCIATION
SENSOR MULTILEVEL
NOTIFICATION
POWERLEVEL
VERSION
WAKE_UP
APPLICATION STATUS
SECURITY_2
SUPERVISION
TRANSPORT_SERVICE
ZWAVEPLUS_INFO
www.visionsecurity.com.tw
VERSION REQUIRED SECURITY CLASS
2 S2
3 S2
1 S2
4 S2
1 S2
5 S2
3 S2
2 S2
8 S2
1 S2
8 S2
1 S2
3 S2
2
S2
1 None
1 1 None
1 None
2 None
2 None
