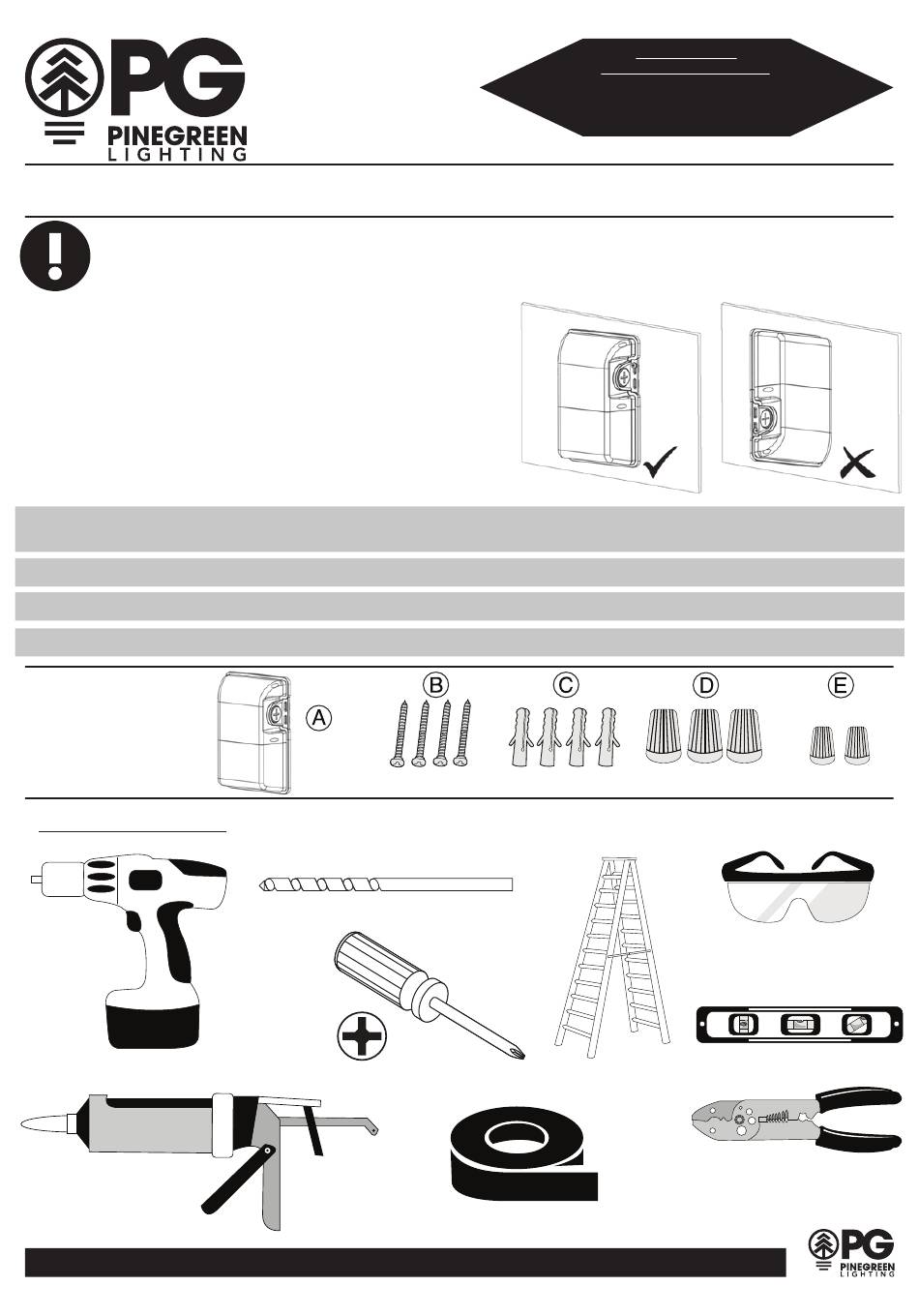

INSTALLATION INSTRUCTIONS: CL-MWP3500L-3CCT | 3500 LUMEN MINI WALL PACK
PRECAUTIONS:
Please read and understand this entire manual before installing or operating this light fixture.
• Read all instructions before installation, then store in a safe place for
future reference. Failure to do so may result in faulty assembly
and potential injury.
• This light fixture should be installed outdoors to a wall.
• Do not immerse components in liquid.
• Your light is water-resistant.
• Never look directly into the light when illuminated.
• This product is designed to operate in temperatures ranging from
-40
F to 113
F (-40
C to 45
o
o
o
• If you are unfamiliar with electrical installation contact a qualified
electrician.
WARNING: Before installation or servicing, turn the power OFF at the circuit breaker or fuse. Place tape over the circuit breaker switch
and verify power is OFF at the light fixture.
WARNING: Risk of fire. Keep the lamp heads at least 3 in. from combustible materials.
CAUTION: Burn hazard. Allow the light fixture to cool before touching.
CAUTION: Do not mount the fixture upside down.
HARDWARE:
TOOLS REQUIRED:
Please read these instructions thoroughly prior to installation, then store in a safe place for future reference.
Power Drill
Silicone Sealant
NOT INCLUDED
If you have questions or are missing parts, please contact customer service at 1-888-745-4837
C).
o
1 X Light
4 x Mounting Screws
6 x Mounting Screws
NOT INCLUDED
Please read these instructions thoroughly prior to installation, then store in a safe place
1/8" Drill Bit
Phillips Screwdriver
Electrical
TO AVOID ELECTRICAL SHOCK, MAKE SURE TO TURN
OFF THE MAIN POWER SOURCE OR DISCONNECT POWER
1 x Motion Light
1 x Motion Light
6 x Mounting Screws
4 x Wall Anchors
6 x Wall plugs
Ladder
6 x Wall plugs
Tape
WARNING:
RISK OF ELECTRICAL SHOCK.
DURING THE INSTALLATION OR SERVICE
OF THIS PRODUCT
3 x Large Wire Nuts 2 x Small Wire Nuts
1 X Mounting Plate
1 x S
1 X Mounting P
Safety Glasses
Level
Wire Stripper
