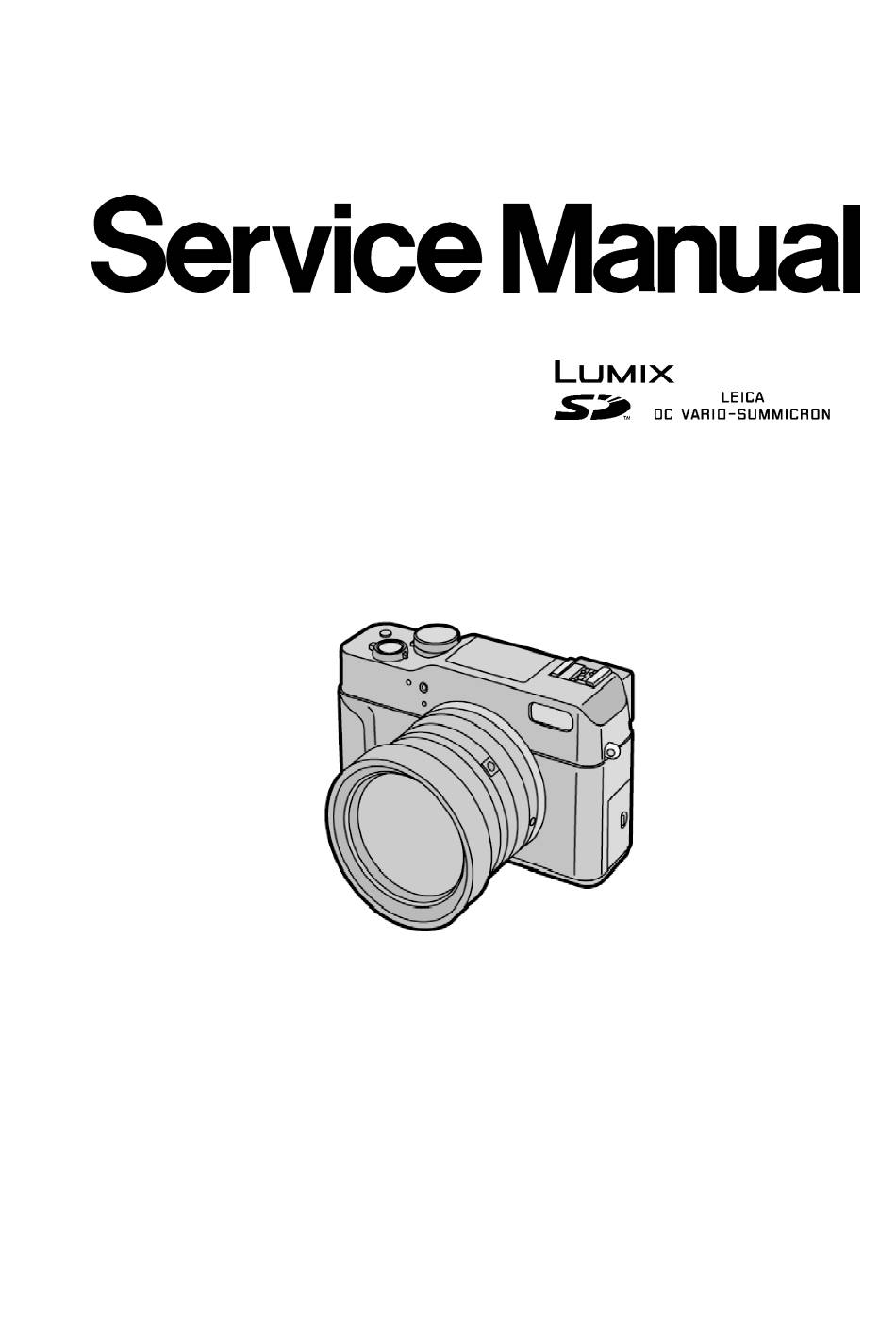

ORDER NO. DSC0401003C0
B26
Digital Camera
DMC-LC1PP / DMC-LC1EB / DMC-LC1EG / DMC-LC1GC /
DMC-LC1GD / DMC-LC1GN
Vol. 1
Colour
(K)...........Black Type
SPECIFICATIONS
1
