Summary of Contents for ModVans CV1

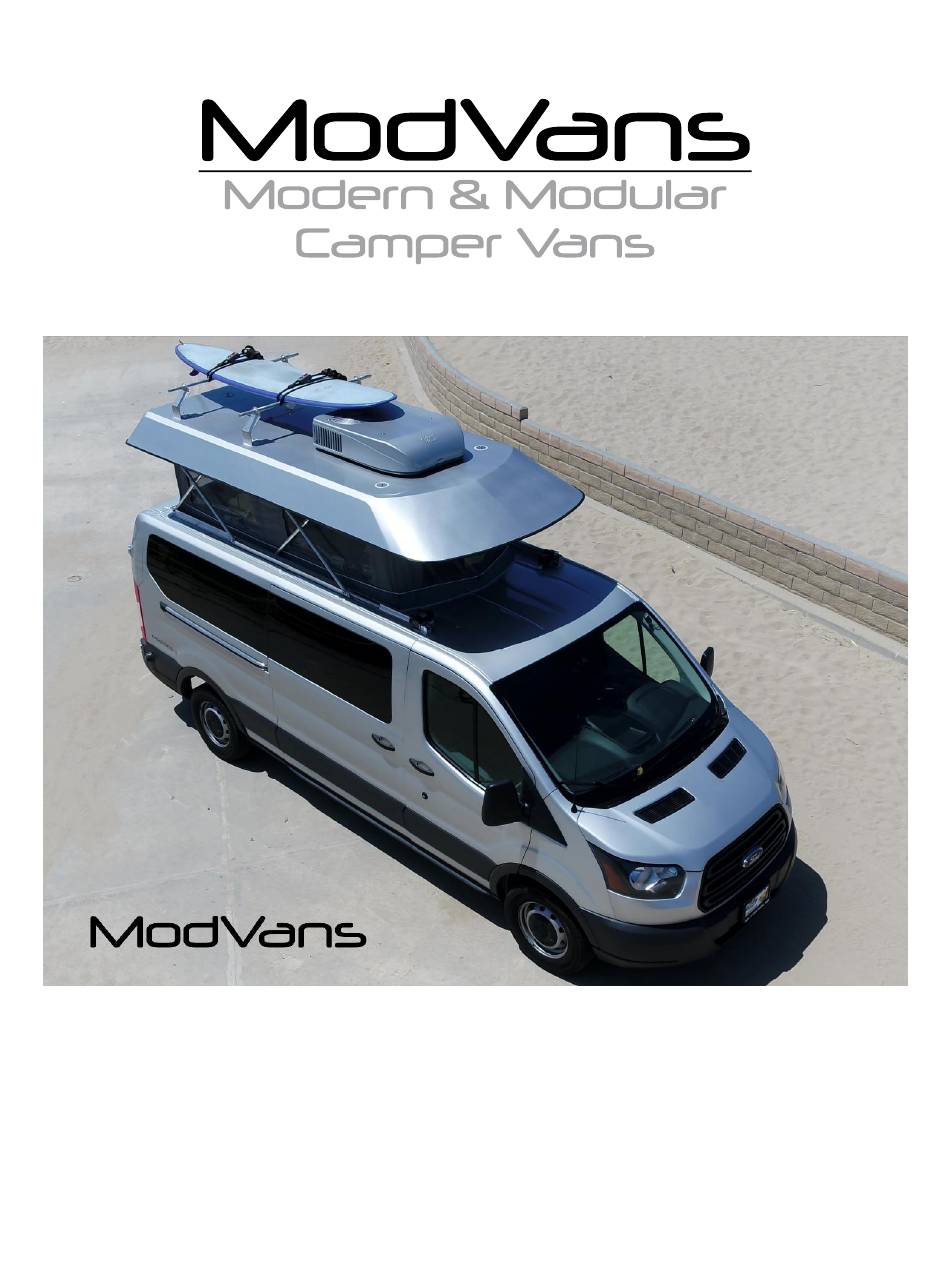

- Page 1 ModVans CV1 Owner’s Manual Version 1.1 Copyright © 2018–2020, ModVans, All Rights Reserved...
-
Page 3: Table Of Contents
Front Row Swivel Seats ........................13 Cabinets ..............................13 Solar Charging System (Optional) ......................14 Appliances and Devices ..........................15 Fast Charging USB Ports .......................... 15 Furnace ..............................15 LED Cabin Lights ............................16 Propane Stove ............................16 ModVans CV1 Owner’s Manual V1.1... - Page 4 Toilet ............................... 17 Water Heater (Optional) ......................... 17 Exterior Shower (Optional) ........................18 Cell Phone Booster (Optional) ........................ 18 Awning (Optional) ........................... 18 Power Running Boards (Optional) ......................19 Troubleshooting ............................19 House Battery Usage ..........................19 ModVans CV1 Owner’s Manual V1.1...
-
Page 5: Warnings, Cautions And Dangers
Driving your CV1 is much like driving a large, modern SUV with these big exceptions: 1. The popup top must be lowered while the RV is motion 2. The CV1 is 8’4” tall (approximately 13’ tall with cell phone booster antenna raised) – use caution when driving under any structure or obstacle 3. -
Page 6: Tire Changes
Ford designated locations. The jack is in its original location, under the passenger seat. Due to the CV1’s passenger seat swivel, access to the jack is more difficult, but the jack can be retrieved and stored under the seat in its original position. -
Page 7: Major Systems
Major Systems 12V System The CV1 has two 12V batteries: the chassis battery and the house battery. The chassis battery starts the chassis engine and runs other chassis based systems such as the headlights. The house battery runs all the RV’s non 110V camping equipment. When the RV’s engine is running, the batteries are automatically connected so the chassis alternator can supply 12V power and charge both batteries. -
Page 8: Storing Or Parking
As mentioned above, to protect your house battery, it is best to keep it from draining below 11V. The simplest way to do this is to turn off the house 12V system when storing or parking your CV1 for more than 1-2 days. -
Page 9: 120V Inverter Function
Transfer Switch Function When your CV1 is plugged into shore power and the inverter is on, all 120V power applications are run directly from shore power. This allows you to run loads such as the rooftop A/C that cannot normally be run off the house battery. -
Page 10: Draining The Fresh Water System
7. Close drain valves and faucets – the fresh water system is ready for use. Cold Weather Operation The CV1’s plumbing and optional hot water heater can be damaged by freezing water. Damage due to freezing is NOT covered under warranty. The CV1’s water systems have some capability for running in sub-freezing conditions. -
Page 11: Propane System
If the stove won’t light after a fill-up, check the manual cut off valve on the propane tank to ensure that it is open. ModVans CV1 Owner’s Manual V1.1... -
Page 12: Seating
LP Gas switch off when the RV is in motion. Seating Row Seating The ModVans CV1 comes standard with 3-person 2 row seating, which can be installed in three configurations: Camp Mode, Transport Mode, and Dinette Mode. The components of the 2 row seats are the driver’s side captain’s chair with cupholders, passenger’s side captain’s chair, middle seat (which... -
Page 13: Front Row Swivel Seats
Front Row Swivel Seats The ModVans CV1 comes standard with a passenger side swivel seat. Some CV1 customers opt to add a driver side swivel as well. To operate swivel seats vans with manually operated seats, slide the seat forward, tilt the seatback forward, move the swivel handle toward the middle of the van, and swivel the seat toward the middle of the van. -
Page 14: Solar Charging System (Optional)
Battery Monitor. The Solar Panel is a large panel mounted on the roof of your CV1. The large size allows some parts to be covered or shadowed while continuing to generate electricity. The amount of output will depend heavily on how much sunlight reaches the panel. -
Page 15: Appliances And Devices
Fast Charging USB Ports The CV1 includes 2 fast charging (2.1A) USB ports. They are located in the control panel, behind the volt meter, and are powered by the house battery. There are two additional USB ports in the dash (one on top in front of the driver, and one below the vehicle climate controls). -
Page 16: Led Cabin Lights
The CV1 also has two large interior lights mounted above the rear doors. These are part of the van chassis and are powered by the chassis battery. They come on automatically when any door is open. To override and turn them off, press the button inside the rear door frame on the driver’s side, or turn off... -
Page 17: Rooftop A/C
Toilet The CV1’s toilet contains an integrated fresh water tank, black water tank, and battery operated pump. We supply all toilet parts sealed in their original packaging, so the toilet will require a bit of attention before its first use. -
Page 18: Exterior Shower (Optional)
1. Ensure that the van is level, particularly from side to side. Damage can result if the van is tilted. 2. Ensure that the space into which the awning will extend is clear and there are no obstructions. ModVans CV1 Owner’s Manual V1.1... -
Page 19: Power Running Boards (Optional)
Turn the furnace off or use the ECO setting • Turn the hot water heater off • Turn the LP Gas switch off when the furnace and stove are not in use (the solenoid value uses battery power when the switch is on) ModVans CV1 Owner’s Manual V1.1...
