USER'S MANUAL for
TPAC1008 02 series
HMI with PLC
ME7030_15
06/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPAC1008 02 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

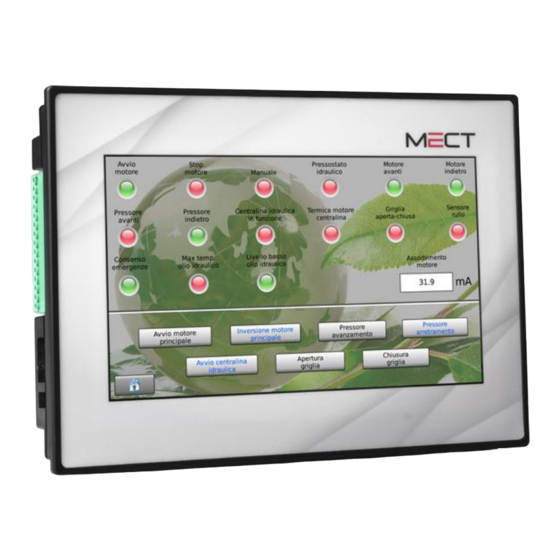

Summary of Contents for Mect TPAC1008 02 Series

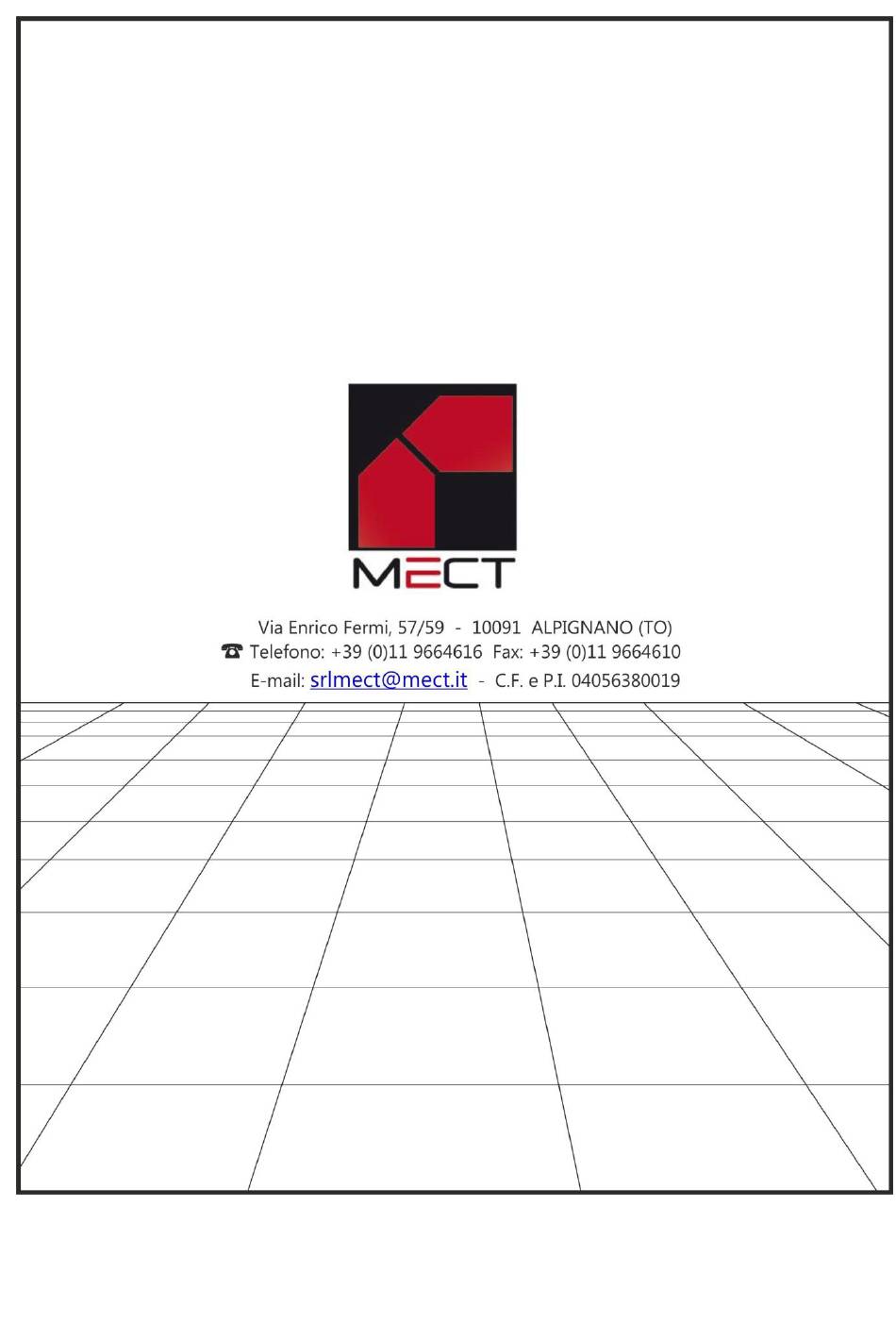

  • Page 1 USER’S MANUAL for TPAC1008 02 series HMI with PLC ME7030_15 06/22...
  • Page 2 HMI with PLC: TPAC1008 02 Mect srl ME7030_15 06/22...
  • Page 3: Table Of Contents

    HMI with PLC: TPAC1008 02 Mect srl INDEX 1. Introduction ....................... 1 1.1. Staff skill ......................1 1.2. Symbols ....................... 1 1.3. Terms ........................1 1.4. Security ........................ 2 1.5. REFERENCE MANUAL ..................2 2. System description ....................3 2.1. Specification ......................4 3.
  • Page 4: Introduction

    Products described in this manual are devoted to PLC programmers or automation experts only. MECT S.r.l. declines any responsibility about malfunctioning or damage caused by incorrect use of MECT devices, due to noncompliance to this manual information. MECT S.r.l has an help desk.
  • Page 5: Security

    HMI with PLC: TPAC1008 02 Mect srl 1.4. Security Attention Switch off devices before connecting them. ESD (Electrostatic discharge) Modules have electronic components that can be damaged by. electrostatic discharge. Be sure to be connected to ground when handle the devices.
  • Page 6: System Description

    USB pen drive for software updates and data log. Through a GPRS/UMTS or Wi-Fi key (optionally sold by Mect) is possible to connect the operator panel to a Wi-Fi or Mobile network. Settings under MENU  OPTIONS  NETWORK_CFG  tab “Wi-Fi”...
  • Page 7: Specification

    HMI with PLC: TPAC1008 02 Mect srl 2.1. Specification Il TPAC1008 02 is based on a multiprocessor system. PLC and HMI are based on a 454MHz ARM9, I/O interface and acquisition is managed by a Cortex M3 processor. Two systems are on different boards and communicate via a CAN interface.
  • Page 8 HMI with PLC: TPAC1008 02 Mect srl Digital output 12 Max output current: 200mAdc@24Vdc   Analogue input PT100, TCJ, TCK,TCT, S, B, R, 0 10Vdc, 0 20mA   Analogue output 10Vdc, 0 20mA, PWM @250Hz  Analogue output...
  • Page 9: Hardware Installation

    HMI with PLC: TPAC1008 02 Mect srl 3. Hardware installation In the following figure there are mechanical dimensions of TPAC1008 02. 3.1. Mechanical dimensions Side view Rear view Figure 3 Figure 4 Side view Figure 5 ME7030_15 06/22...
  • Page 10 HMI with PLC: TPAC1008 02 Mect srl Technical specification Table 2 MECHANICAL Material Polycarbonate, Polyamide 6.6 Dimensions W x L x H 195 mm x 145 mm x 60.5 mm Mounting plate 138mm x 188mm Installation Panel installation Environmental conditions Operating Temperature 0 °C ...
  • Page 11: Panel Mount

    HMI with PLC: TPAC1008 02 Mect srl 3.2. Panel mount 3.2.1. Distance System must be installed with a space for heat dissipation and cabling. Avoid cabling superimposing to avoid EMC problems. Figure 6A – Horizontal mounting Figure 6B – Vertical mounting...
  • Page 12: Tpac1008 02 Wiring

    HMI with PLC: TPAC1008 02 Mect srl 4. TPAC1008 02 wiring 4.1. Connections In the following figure see the wiring diagram with the available I/O. Figure 7 Bidirectional encoder:  Input A Encoder: IN 2  Input B Encoder: IN 3 Counter: ...
  • Page 13 HMI with PLC: TPAC1008 02 Mect srl Table 3 TPAC1008 02 AA Input type Resolution BIT Note 0.005mA 020 mA Input impedance 8 0.003V 0V Input impedance 500K 1°C Cold junction Thermocouples: J(0°C  600°C), compensation T(0°C  400°C), Analogue K(0°C ...
  • Page 14: Power Supply

    HMI with PLC: TPAC1008 02 Mect srl 4.2. Power supply 4.2.1. Isolation Device has no galvanic isolation between input, output and power supply. 4.2.2. System power supply The TPAC1008 02 has a 24Vdc (12-36Vdc) supply acording to the scheme in the figure.
  • Page 15: Digital Input/Output Wiring

    HMI with PLC: TPAC1008 02 Mect srl 4.3. Digital input/output wiring The digital I/Os are PNP type, the wiring must follow the scheme below. Figure 9 Each digital output can source a 200mA max, and the total current can be lower than 4.4.
  • Page 16 HMI with PLC: TPAC1008 02 Mect srl thermocouple Figure 10 TPAC1008 02 can be connected to PT100. 2 different scales are possible:  Da –40.0 °C a 200.0°C  Da –40 °C a 800°C The scale –40.0°C to 200.0°C has a resolution of 0.1°C.
  • Page 17: Analogue Output Wiring

    HMI with PLC: TPAC1008 02 Mect srl Configuring input as 0V or 4m is possible to connect up to 4: Figure 12 4.5. Analogue output wiring 2 analogue output channels are available. See in the figure the current analogue output wiring.
  • Page 18: Canopen (Tpac1008 02 Aa Model)

    HMI with PLC: TPAC1008 02 Mect srl See in the figure the voltage analogue output wiring. Figure 14 4.6. CanOpen (TPAC1008 02 AA model) Can interface on TPAC1008 02 AA is on M3 terminal board on pins. Table 4 Signal...
  • Page 19 HMI with PLC: TPAC1008 02 Mect srl Figure 15 Cable type Cable between TPAC1008 02 and CANopen slave must be a shielded twisted pair, and to avoid external disturbances the shield must be connected to both 0V of the communicating systems. The cable length is a function of the baud rate as follows.
  • Page 20: Modbus Wiring (Tpac1008 02 Ab Model)

    HMI with PLC: TPAC1008 02 Mect srl 4.7. ModBus wiring (TPAC1008 02 AB model) ModBus on TPAC1008 02 AB is a 4 wire RS485 serial line, on the M3 terminal (RTU0) board on pins. Table 6 Signal GNDiso 4.8. Analogue outputs wiring (TPAC1008 02 AD/AE/AF models)
  • Page 21: Peripherals

     data storage: data logger  connect USB peripherals as printers, mouse, etc.  connect a Wi-Fi or Mobile key (optionally supplied by Mect) to connect to a different network from LAN. Specific connection of external peripherals are implemented on request.
  • Page 22: Ethernet

    HMI with PLC: TPAC1008 02 Mect srl 5.2. Ethernet TPAC1008 02 has a 10/100Mbit/s Ethernet port with auto configuration, with direct or inverse connection cable. Il TPAC1008, by Ethernet, can be controlled by a personal computer, it is possible to control the I/O of TPAC1008 by means of a program on a PC.
  • Page 23: System Variables

    HMI with PLC: TPAC1008 02 Mect srl 6.1. System variables Here some system variables available for PLC program. Table 11 Variable Name Type Description PLC_Revisione Revision RO firmware revision PLC_HWconfig Configuration PLC_AnInConf_1 Analogue input RW Bit 0..3 input configuration 1...
  • Page 24 HMI with PLC: TPAC1008 02 Mect srl  3 TCJ (J type thermocouple)  4 TCK (K type thermocouple)  5 TCT (T type thermocouple)  6 PT100E (1 digit Resolution) range: -40 +800°C  7 PT100R (0.1 digit Resolution) range: -40 +200°C...
  • Page 25 HMI with PLC: TPAC1008 02 Mect srl Conf 2: 0 ÷ 10000 value: 0.0 ÷ 10.000V resolution 3 digit Conf 3: 0 ÷ 600 value: 0 ÷ 600°C resolution 1 digit Conf 4: 0 ÷ 1200 value: 0 ÷ 1200°C resolution 1 digit Conf 5: 0 ÷...
  • Page 26 HMI with PLC: TPAC1008 02 Mect srl Conf 6: -40 ÷ 800 value: -40 ÷ 800°C resolution 1 digit Conf 7: -400 ÷ value: -40.0 ÷ 200.0°C 2000 resolution 1 digit Conf 8: 0 ÷ 1710 value: 0 ÷ 1710°C resolution 1 digit Conf 9: 100 ÷...
  • Page 27 HMI with PLC: TPAC1008 02 Mect srl PLC_AnOut_1 Analogue output RW Conf 1 0 ÷ 2000 Conf 2 0 ÷ 1000 Conf 3 0 ÷ 100 PLC_AnOut_2 Analogue output RW Conf 1 0 ÷ 2000 Conf 2 0 ÷ 1000 Conf 3 0 ÷...
  • Page 28: How To Order

    The system can use 5472 interchange variables between HMI and automation (at maximum) which include: internal variables, interchange variables on Modbus network, retentive variables. The variables are defined by a software “Mect Suite”. 7. How to order ME7030_15 06/22...
