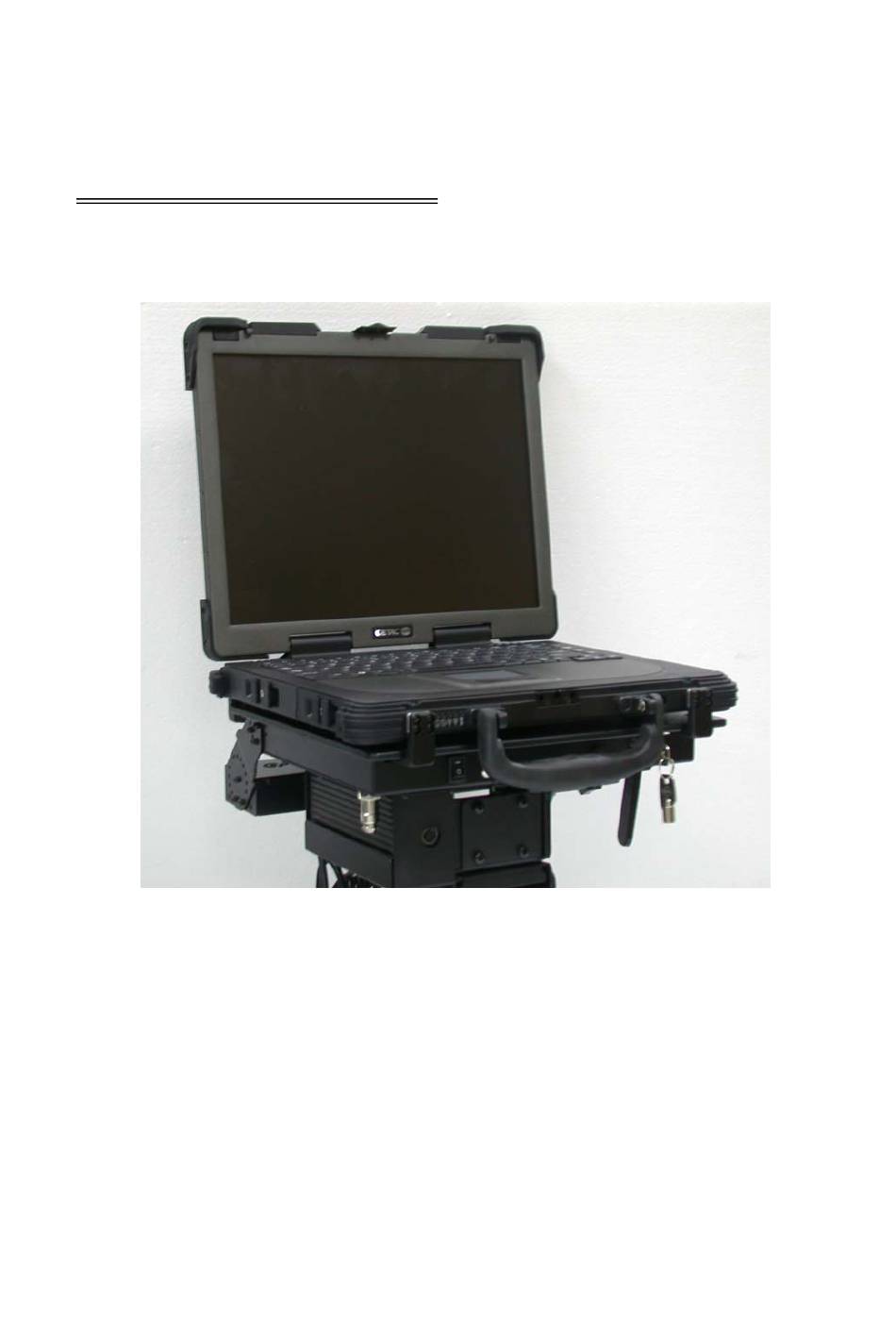

  • Page 1 Getac M220 Vehicle Docking User’s Guide...
  • Page 2: Getting Started

    & hardware features of your vehicle dock plus it gives you a basic overview of the operating system and installed applications. Unpacking Check to be sure that your M220 Vehicle Docking package contains the following items: M220 Vehicle Docking DC Adapter...
  • Page 3 Power Switch Turns the Vehicle Docking power ON and OFF External Shows the current status of the external DC Power-in. Power Indicator System Power Shows the current status of the System Power Indicator conductive between Vehicle Docking and M220. Fuse 16 Amp Fuse Lock Security & System protection Lock...
  • Page 4 Front-Side View Mechanical Diagram. The Mechanical Diagram may provide a basic construction idea for the further installation into vehicle.
  • Page 5 Rear Components Component Description GPS Connector Connects the GPS external antenna. GPRS Connector Connects the GPRS external antenna. Power Connector Connects the DC Car Adapter. BNC Video Connects the Video device with BNC interface, such Capture as CCD Camera. (M200) Connector USB Ports Each of the two ports connects a USB device.
  • Page 6 Top-Side View Components Component Description Docking For connecting to M220 System Connector (POGO) RF Connector For connecting to the GPS & GPRS of M220 Guide Pin For orientating and engaging to M220.
  • Page 7 Top-Side View Mechanical Diagram...
  • Page 8 Bottom-Side View Components Component Description Port Replicator Combines with the External interface connectors. Damper For shock absorption and fixing to the pedestal. Docking Connects the DC Car Adapter. Power-in Connector...
  • Page 9 Bottom View Mechanical Diagram This mechanical diagram indicates the correct dimension for the Docking Adapter. The dimension for the Pedestal Adapter has to match the dimension of Docking Adapter precisely. (Metric: mm) Caution: The dampers are made of rubber. We strongly suggest replacing them every two years.
  • Page 10 Left & Right Side Views Component Description Docking Engages the M220 with Vehicle Docking Handle Guide Pin For orientating and engaging to M220...
  • Page 11 Installation Instructions 1. Installing the Car DC Adapter. . To install the Car DC Adapter with DC Adapter Bracket. Caution: The power indicator (Green Light) has to be above the power cord, otherwise the power connector socket will not match the socket hole: Correct Incorrect Correct...
  • Page 12 1-2. Installing the Car DC Adapter assembly to the Vehicle Docking with the 4 Screws.
  • Page 13 2. Electrical Guidelines With the mechanical installation complete, connect the power cables. 2-1. Plug the Car DC Adapter power cable into Port Replicator. 2-2. Plug the DC Power Cable into the Car DC Adapter and Docking Power-in.
  • Page 14 Engaging the M220 with Vehicle Docking With assembled Vehicle Docking, the M220 can be set on the Vehicle Docking. 1. Plug the DC Power cable into the vehicle internal power socket (Cigarette Lighter), and turn on the Power switch. The External Power Indicator (Red Light) glows.
  • Page 15 3. Position M220 onto the Vehicle Docking against the front Guide Pins. 4. Pull the docking handle all the way forward to engage the Vehicle Docking and the M220.
  • Page 16 5. If the Vehicle Docking and computer properly engaged, then the System Power indicator (Green Light) glows. 6. Secure with the Key Lock. Caution: Please ensure the “Lock” has been fully turned for the Docking and Computer to connect.
