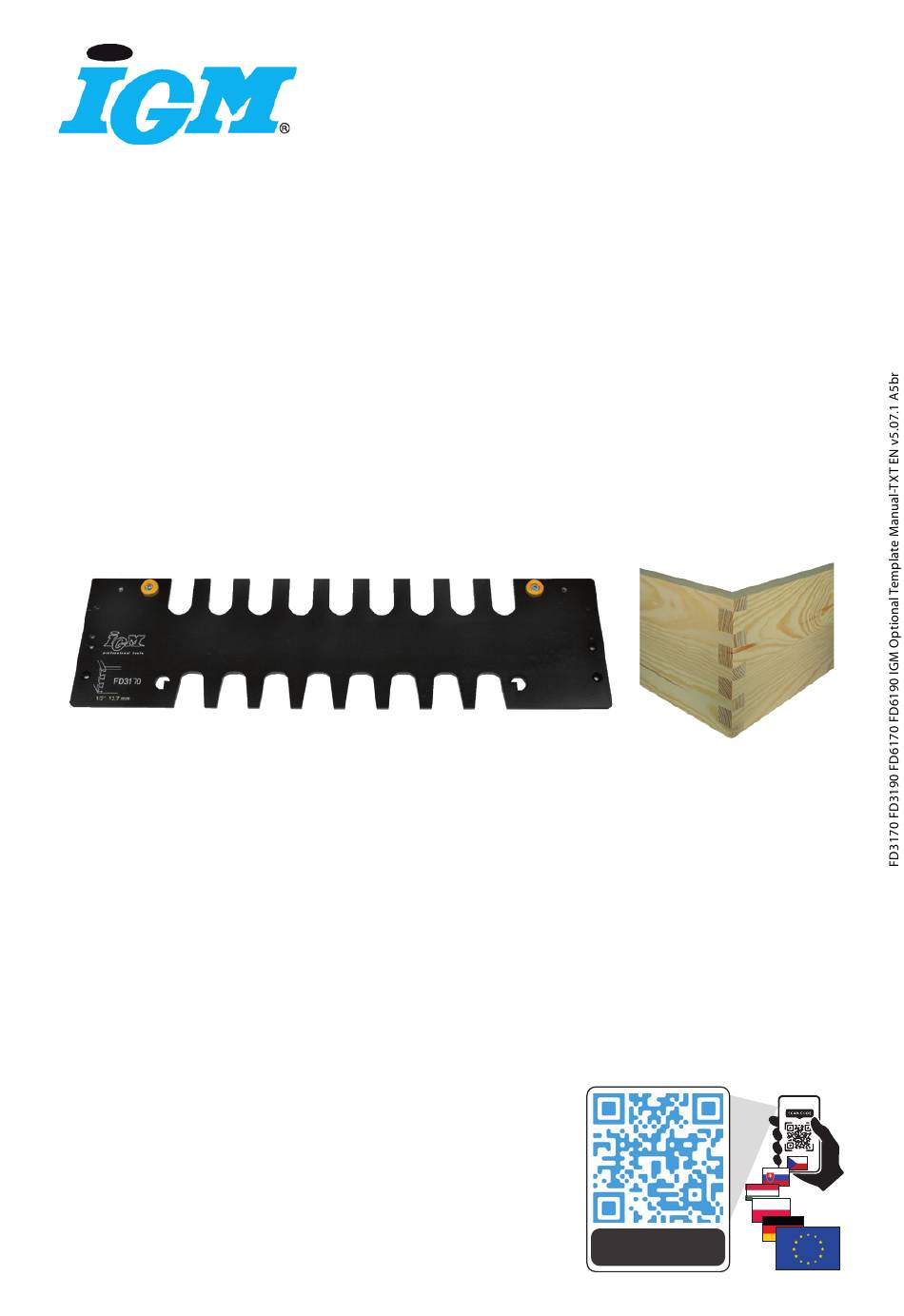

- Page 1 FD3170-3190 FD6170-6190 OPTIONAL TEMPLATE for dovetail jig FD300-600 12,7 mm(1/2”) THROUGH DOVETAIL FD3170&6170 19 mm(3/4”) THROUGH DOVETAIL FD3190&6190 Operationg instructions EN PDF ONLINE www.igmtools.info...
- Page 2 Operating manual OPTIONAL TEMPLATES for DOVETAIL JIG FD300 & 600 12,7 mm (1/2“) THROUGH DOVETAIL FD3170 & 6170 19 mm (3/4“) THROUGH DOVETAIL FD3190 & 6190 TEXT PART - V5 12,7 mm (1/2”) & 19 mm (3/4“) THROUGH DOVETAIL TEMPLATE Illustration I Each part is routed separately, secured under the front clamp.
- Page 3 Workpiece width 12,7 mm (1/2“) Through Dovetail This 12,7 mm (½”) through dovetail template can be used with stock from 31,6 mm (1-1/4”) to 305 mm (12”) wide with FD300 jig or to 610 mm (24“) wide with FD600 jig. For symmetrical pin placement, use this table as a guide: #of Whole Tails: 31,6 82,4...
- Page 4 Routing Y workpiece – Pins - Keep the scrap stock in place, it must be 6mm ( ¼”) thicker than your stock. - Loosen the screws that hold the template plate to the template bracket. Remove the plate but leave the brackets attached to jig.
- Page 5 Guide bush D11,1mm x 4mm FGB111-03 Guide bush D15,8mm x 4 – not included, from FD300 & 600 FGB158-04 Edge guide D21,9mm x 6mm yellow FD3170 FD3130-03 Edge guide D10mm x 10mm silver FD6170 – not included from FD3001-03 FD600 FD3190 &...
- Page 6 IGM nástroje a stroje s.r.o., Ke Kopanině 560, Tuchoměřice, 252 67, Czech Republic, EU +420 220 950 910, www.igmtools.com © 2023 IGM nástroje a stroje s.r.o.
