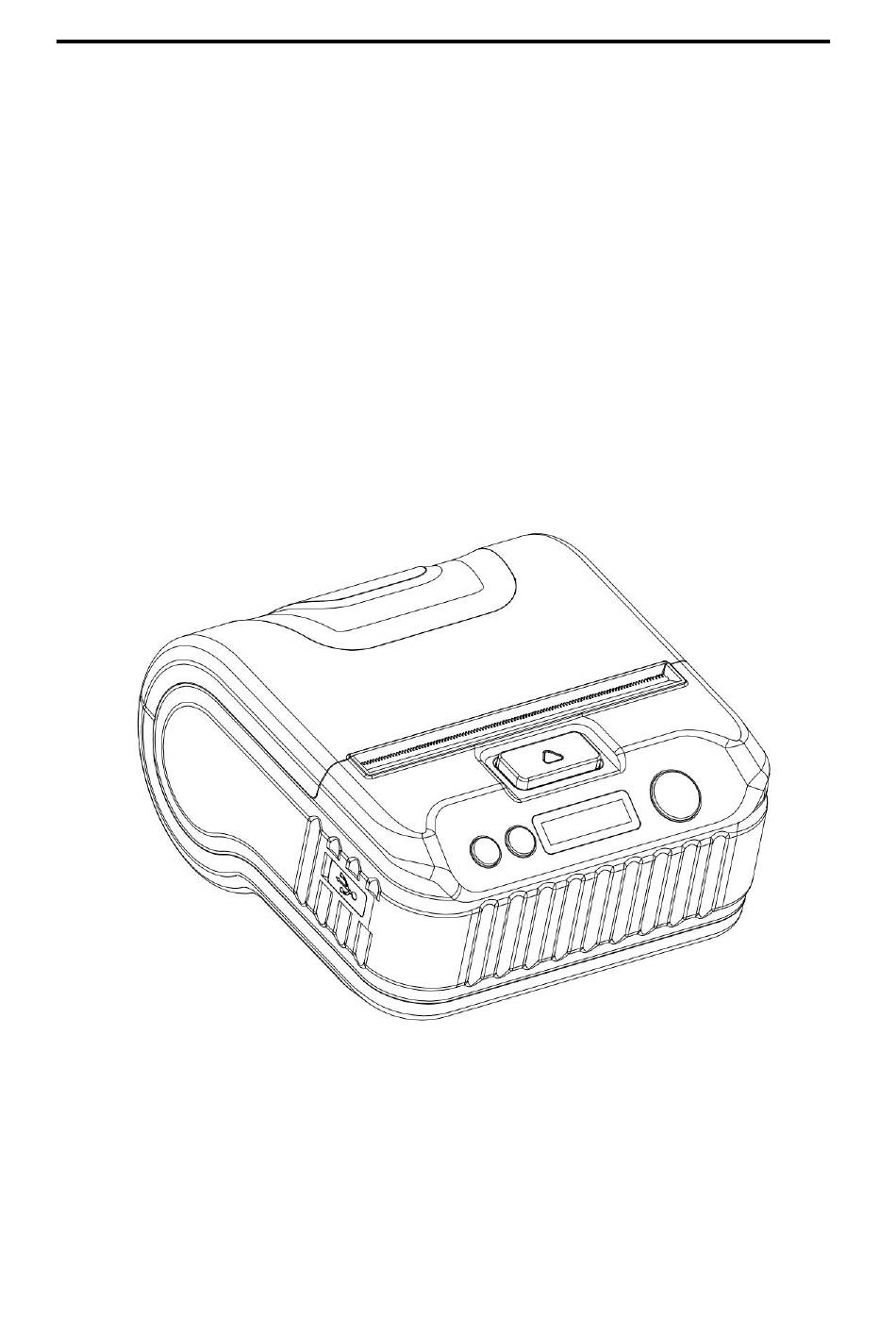

- Page 1 SPRT SP-L39 Users' Manual SP-L39 Portable Label Printer User's Manual （VER 1.00） www.sprinter.com.cn...
-
Page 2: Table Of Contents
SPRT SP-L39 Users' Manual Content Precautions................... 4 Safety Precautions................4 Precautions for use............... 5 Storage Precautions..............6 Chapter 1 Printer Appearance and Model........... 7 1.1 Appearance................7 1.2 Model..................8 Chapter 2 Performance Characteristics..........8 2.1 Printing performance.............. 8 2.2 Physical parameters............... 9 2.3 Environmental parameters........... - Page 3 SPRT SP-L39 Users' Manual 3.2.6 Printer parameter settings..........18 3.2.7 Charging..............20 3.2.8 Enter program upgrade mode........21 3.3 Printer parameter settings.............22 3.4 Printer Label Sensor Calibration...........22 3.5 Restore the printer to default ..........24 3.6 Printer connection and printing..........25 3.6.1 USB connection............25...
-
Page 4: Precautions
SPRT SP-L39 Users' Manual Precautions Please read this chapter carefully before using the printer! Safety Precautions This printer can only use the special battery and power adapter provided by the company, otherwise it may cause product damage, battery leakage, fire or even explosion. -
Page 5: Precautions For Use
SPRT SP-L39 Users' Manual part of your body to avoid burns caused by excessive temperature. Notice Danger of explosion if battery is replaced with wrong type Always dispose of used batteries Precautions for use The printer should not be immersed in water or exposed to rain, as this may cause damage to the printer. -
Page 6: Storage Precautions
SPRT SP-L39 Users' Manual will result in reduced print quality. Too high ambient humidity (above 85% relative humidity) or too low ambient humidity (below 20% relative humidity) can result in poor print quality. Using poor-quality paper or paper that has been stored for an extended period of time may result in poor print quality and even damage to the printer. -
Page 7: Chapter 1 Printer Appearance And Model
SPRT SP-L39 Users' Manual printer. Statement This is a Class A product, which may cause radio interference in a living environment. In this case, the user may be required to take practical measures for the interference. Chapter 1 Printer Appearance and Model... -
Page 8: Model
SPRT SP-L39 Users' Manual 1.2 Model Model Interface SP-L39BTDM USB、Bluetooth SP-L39W USB、WiFi Chapter 2 Performance Characteristics 2.1 Printing performance Printing method: line thermal printing; Printing paper width: 40-80mm... -
Page 9: Physical Parameters
SPRT SP-L39 Users' Manual Effective printing width: 72mm; Resolution: 8 points/mm (203dpi); Points per line: 80mm: 576 points/line; Printing speed: Normal paper: 80mm/s(Max); Label paper: 80mm/s(Max); Paper thickness: 0.06-0.0.08mm (normal thermal paper), 0.06-0.15mm (label paper); Printable content: GB18030 all Chinese characters and... -
Page 10: Environmental Parameters
SPRT SP-L39 Users' Manual Weight: 375g (without paper roll); Paper roll diameter: ≤50mm; Interface: USB, Bluetooth, WiFi 2.3 Environmental parameters Working environment temperature: -10℃～50℃; Working environment humidity: 10% ~ 90% (relative humidity); Storage environment temperature: -20℃～60℃; Storage environment humidity: 10% to 90% (relative humidity) 2.4 Other properties... - Page 11 SPRT SP-L39 Users' Manual set (see "SP-L39 Instruction Programming Manual" for details). Power supply mode: 7.4V/2000mAh rechargeable polymer lithium battery. Battery Alarm: When the battery is about to run out, the battery icon on the printer's LCD screen flashes. Charging: Fast charging, it can be fully charged within 4 hours.
-
Page 12: Chapter 3 How To Use
SPRT SP-L39 Users' Manual Chapter 3 How to use 3.1 Preparation before use 3.1.1 Battery installation and removal 1. Put the end of the battery into the slot on the back of the main body first (as shown in the figure below). -
Page 13: Cleaning And Maintenance
SPRT SP-L39 Users' Manual the finger grooves when sliding the baffle (as shown in Figure 2). 2. Load the roll paper with the thermal side facing down, and pull out the paper in the paper compartment (the end of the paper is beyond the tear-off sheet) (as shown in Figure 3). - Page 14 SPRT SP-L39 Users' Manual paper scraps and dust on the paper feeding roller of the machine core. 2. As shown in the figure below, use a cotton swab to dip an appropriate amount of alcohol, wipe the heating plate of the core, and remove impurities such as carbon deposits, dust and paper scraps.
-
Page 15: Others
SPRT SP-L39 Users' Manual 3.1.4 Others Instructions for opening and closing the door: After pressing the door opening button, the cover of the paper compartment pops Instructions for abnormal operation: No paper jam is allowed at the paper outlet. Placement direction: When printing, hand-held flat printing, try to ensure the stability of the paper roll. -
Page 16: Power On
SPRT SP-L39 Users' Manual Vector fonts are supported in label mode. 3.2.1 Power on Press and hold the [Power] key, you will hear the prompt tone of "one low and one high", and the LCD screen displays "Loading...", then release the [Power] key, the printer enters the working mode, and the working parameters of the printer are displayed on the LCD screen . -
Page 17: Paper Feeding (Manual Feeding)
SPRT SP-L39 Users' Manual Entering self-test: In the power-off state, press and hold the [FEED] key, press and hold the [Power] key, and when you hear the "one low, one high" power-on prompt and the LCD screen displays "Loading...", release the [Power] ] key and then release the [FEED] key, the printer's self-test test page will be printed out. -
Page 18: Printer Parameter Settings
SPRT SP-L39 Users' Manual from the host with hexadecimal numbers and its corresponding characters, which is convenient for debugging the application. Enter hexadecimal printing: in the power-off state, press and hold the【MODE】key, then press and hold the [Power] key, when you hear the "one low, one high"... - Page 19 SPRT SP-L39 Users' Manual setting mode, and the parameter setting content is different. a. In the power-off state, press and hold the 【MODE】 key first, then press and hold the 【POWER】key, and when you hear the "one low, one high" power-on prompt and the LCD screen displays "Loading...", release the 【...
-
Page 20: Charging
SPRT SP-L39 Users' Manual options, press 【 FEED 】 key to adjust the submenu of each parameter setting item; please refer to Appendix B for detailed setting method. After the setting is completed, wait for 5 seconds, automatically exit the setting mode, save the setting parameters. -
Page 21: Enter Program Upgrade Mode
SPRT SP-L39 Users' Manual displayed to indicate that it is fully charged. In the power-on state: the battery icon in the upper right corner keeps beating to indicate that it is charging; the battery does not move, indicating that it is fully charged. -
Page 22: Printer Parameter Settings
SPRT SP-L39 Users' Manual use "UpdateFirmware" upgrade tool to upgrade. You can also use the "SprtPrinterUpdateTools" (mobile phone upgrade tool) upgrade tool, connect Bluetooth or WiFi to upgrade. 3.3 Printer parameter settings The printer can use the special software <setting tool software> to set more parameters through the computer. - Page 23 SPRT SP-L39 Users' Manual set on the LCD screen. When it is currently in label paper mode, in the off state, first press the【MODE】key, then press and hold the [Power] key, when you hear the boot sound, release the [Power] key, and then press the 【FEED】...
-
Page 24: Restore The Printer To Default
SPRT SP-L39 Users' Manual 3.5 Restore the printer to default configuration When the printer configuration item is incorrectly configured and cannot work normally, use this function to restore the factory configuration content. In the off state, first press the 【MODE】 key, then press and hold the [Power] key, when you hear the boot tone and the LCD screen starts, release the 【POWER】... -
Page 25: Printer Connection And Printing
3.6 Printer connection and printing 3.6.1 USB connection The SP-L39 printer comes standard with a standard Type-C cable for connecting the printer to the host device. The USB of the printer belongs to the slave device type (DEVICE); the shape and... - Page 26 SPRT SP-L39 Users' Manual terminals with a Bluetooth interface can drive SP-L39 to print . The Bluetooth of SP-L39 thermal printer is compatible with Bluetooth 2.0 specification and Bluetooth dual-mode (supports Apple 4.0 and Android 2.0 Bluetooth specification), the power level is CLASS 2, and the effective distance is 10m.
-
Page 27: Wifi Connection
Notice: ① When pairing, the SP-L39 thermal printer must be turned on. ②Once the Bluetooth device of the printer is successfully paired with the host Bluetooth device and establishes a link, it will no longer provide search and link services for other primary Bluetooth devices until it is disconnected from the host device linked to it. -
Page 28: Buzzer Description
SPRT SP-L39 Users' Manual In the power-off state, press and hold the 【MODE】key and the 【POWER】 key to turn it on, release the 【POWER】 key, press the【FEED】 key four times, and then release the 【MODE】key. The printer enters the network configuration mode. And print out the prompt words “start network configuration”... - Page 29 SPRT SP-L39 Users' Manual will display the relevant information of the printer. If no data is sent to the printer or no external interface is inserted into the printer within 5 seconds, the LCD will automatically turn off the display until the external interface is inserted into the printer or the external device sends data to the printer, the LCD will display again.
- Page 30 SPRT SP-L39 Users' Manual ④ Text prompt display to show the current status of the printer. Running is displayed when the printer is in normal standby. When the printer has a print job, it will display Printing. When the printer has an error, it will display out of paper, abnormal temperature, abnormal voltage and abnormal paper cover alarm according to the error status.
- Page 31 SPRT SP-L39 Users' Manual icon will flash when the printer power is low.。 ④Text prompt display, where the current status of the printer is displayed in text. When the printer and peripherals are not connected, it displays: USB mode. When a USB interface is inserted, it shows: USB is connected.
-
Page 32: Chapter 4 Other Information
Chapter 4 Other Information 4.1 Command Programming Manual <SP-L39 commands Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. 4.2 Instruction on Label Paper Please do comply with the following instruction if the user adopts adhesive label paper, otherwise it may lead to the inaccurate locating the gaps, which results in the missed or blank receipt. - Page 33 SPRT SP-L39 Users' Manual Appendix A Setting instruction: hit the【MODE】button to choose “set” item; press it once,the set item will become the next alternative option, and it will print the present value of the chosen item. Hit the 【FEED】button to set the value needed, when pressing it once , the value will become the next one in sequence.
- Page 34 SPRT SP-L39 Users' Manual Language: FEED FEED English Chines Chinese-BIG5 FEED FEED FEED FEED Jap-ShiftJIS GB12345 Font: FEED FEED Song 12*24 Song 9*17 Song 8*16 FEED FEED FEED Density: FEED FEED FEED FEED FEED FEED Paper sensitivity setting: FEED FEED...
- Page 35 SPRT SP-L39 Users' Manual Print Mode： FEED FEED Logictic printing Standard printing Paper Width: FEED FEED 58mm 80mm 40mm (Option) FEED Power off Setting: FEED FEED FEED 20 min 10 min. 30 min Never FEED Printing Direction Setting: FEED Inversion...
- Page 36 SPRT SP-L39 Users' Manual Label Paper Setting: 70mm 70mm ＜ ＞ Appendix B Setting instruction: hit the【MODE】button to choose “set” item; press it once,the set item will become the next alternative option, and it will print the present value of the chosen item. Hit the【FEED】button to set the value needed, when pressing it once , the value will alter to the next one in sequence.
- Page 37 SPRT SP-L39 Users' Manual Language Setting： FEED FEED English Chinese Chinese-BIG5 FEED FEED FEED FEED Jap-ShiftJIS GB12345 Density Setting: FEED FEED FEED FEED FEED FEED Visible Bluetooth Setting: FEED FEED Label Length Setting: FEED 70mm 70mm ＞ ＜ Label Paper Sensitivity Setting:...
- Page 38 SPRT SP-L39 Users' Manual Self Test Paper Print: FEED Print Self Test Paper Print Sefl Test Erase Bluetooth Memory: FEED Erase Bluetooth Memory Erasing Working Mode: FEED FEED Factory Label Mode Label Mode Label Mode Return down: The manufacturer's label mode corresponds to the...
- Page 39 SPRT SP-L39 Users' Manual Beijing Spirit Tech Dev Co.,Ltd. Add: No. 26 Ave. 4, Chuangye Middle Road, Shangdi Information Industry Park, Beijing, CHINA Zip code: 100085, Tel: 010-51661178 FAX: 010-51661178-190 Technical support: 010-51661178-157 010-62969379 Service email: support@sprinter.com.cn...
