Summary of Contents for SPRT SP-TL31
- Page 1 ® SPRT SP-TL31Thermal Label Printer User’s Manual SP-TL31 Thermal Label Printer User’s Manual VER 1.00 Beijing Spirit Technology Development Co.,Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
® SPRT SP-TL31Thermal Label Printer User’s Manual Content Precautions.................................1 Chapter One Printer Appearance and Model....................2 1.1 Printer Appearance...........................2 1.2 Model..............................3 Chapter 2 Performance Features........................3 2.1 Printing performance..........................3 2.2 Printing paper............................4 2.3 Printing characters..........................4 2.4 Physical parameters..........................4 2.5 Environmental parameters........................ -
Page 3: Precautions
® SPRT SP-TL31Thermal Label Printer User’s Manual Precautions Before using the printer, please read this chapter carefully! Safety Precautions ◆Do not touch the print head and its connecting parts to avoid burns or damage to the print head due to static electricity. -
Page 4: Chapter One Printer Appearance And Model
® SPRT SP-TL31Thermal Label Printer User’s Manual humidity of 10% to 90%. Statement This is a Class A product. In the living environment, this product may cause radio interference. In this case, the user may be required to take practical measures for its interference. -
Page 5: Model

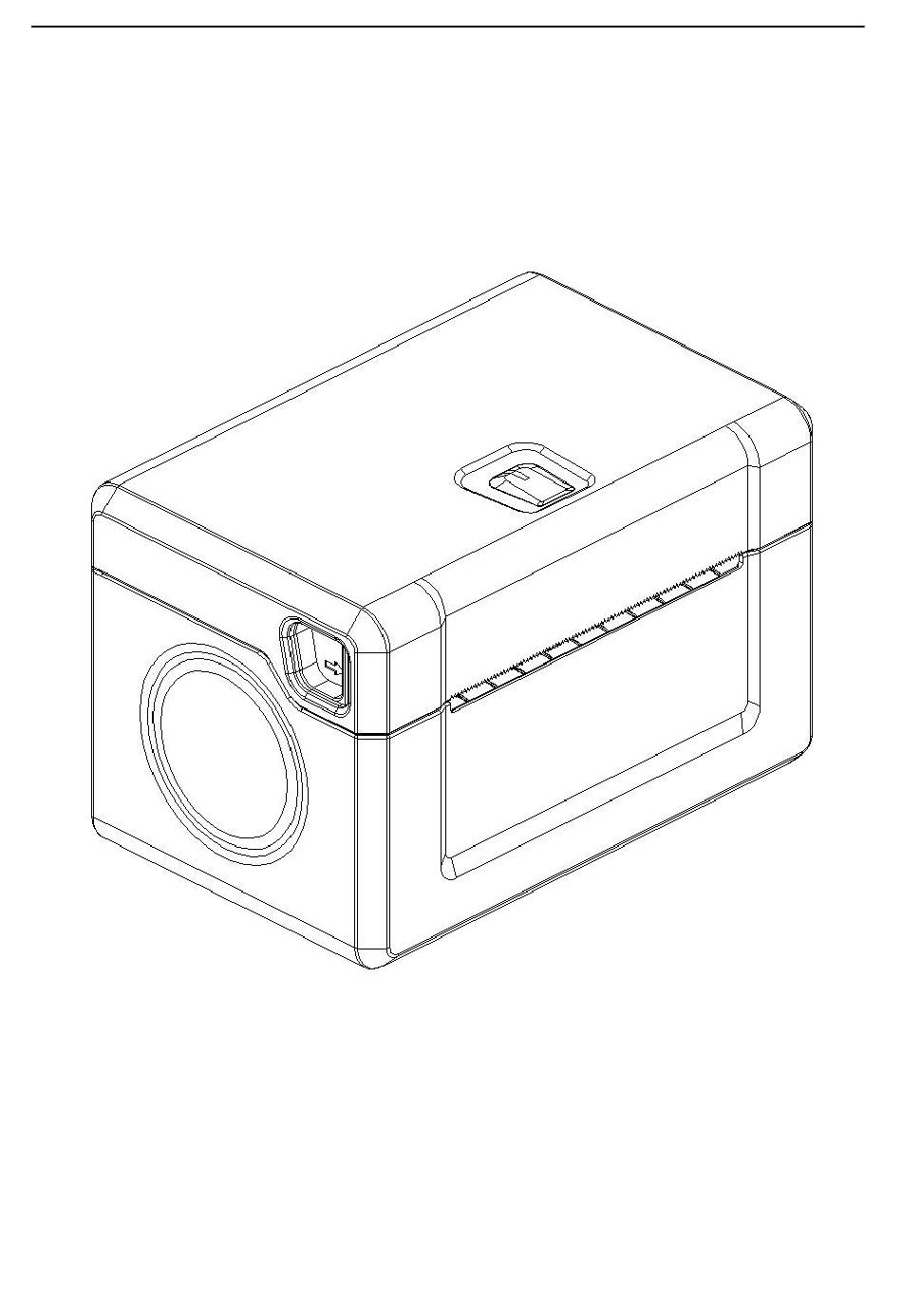

® SPRT SP-TL31Thermal Label Printer User’s Manual SP-TL31 Printer appearance figure 1.2 Model Model Name Description Printing Density SP-TL31 8dots/mm, 576dots/line SP-TL31BTDM USB,Blue Tooth Chapter 2 Performance Features 2.1 Printing performance Printing method: line thermal printing Printing paper width: 40mm(Min)---80mm(Max) -
Page 6: Printing Paper
Paper loading method: see 3.1.1 Printing Paper Roll Installation for details. Black mark positioning: yes (see 4.2 pre-printed black mark description for details). Print control commands: ESC/POS, TSC/TSPL. (See "SP-TL31/301 Printer Command Programming Manual" for details). Power supply mode: DC24V±5%, 2A. -
Page 7: Chapter 3 Methods Of Use
® SPRT SP-TL31Thermal Label Printer User’s Manual Chapter 3 Methods of Use 3.1 Operation Steps 3.1.1 Paper Installation Open the cover and fill the paper: 1. Open the paper compartment cover and adjust the position of the paper limit block so that the paper can be put in smoothly. -
Page 8: Paper Position Requirements
® SPRT SP-TL31Thermal Label Printer User’s Manual Caution! ！ 1. Pay attention to the direction of loading paper, make the printing surface face to the print head. 2. Please don’t feed or draw the paper forwards or backwards with hands. -
Page 9: Rubber Roller Replacement
® SPRT SP-TL31Thermal Label Printer User’s Manual at a slight angle away from the plastic case. 3. Remove the ribbon cable, replace with a new print head assembly, keep the ribbon cable direction unchanged, and assemble it in reverse according to the above steps. -
Page 10: Paper Feed (Manual Paper Feed)
® SPRT SP-TL31Thermal Label Printer User’s Manual Self-test prints out parameters in fellow order: manufacturer name, printer model, software version, interface type, default value of printer parameters, 96 characters in ASSIC code, default code page content (language setting is English) or Chinese character library name ( The language is set to Chinese) and the barcode type. -
Page 11: Factory Reset
® SPRT SP-TL31Thermal Label Printer User’s Manual detailed setup methods. To exit the parameter setting method, press the 【PAUSE】 button and 【FEED】 button simultaneously, then release the 【PAUSE】 button and the 【FEED】 button at the same time. The printer saves the set parameter values and exits the parameter setting mode to enter the normal working mode. -
Page 12: Usb Interface
A handheld device with Bluetooth interface, such as laptops, or other information terminals, can drive SP-TL31 printing via the Bluetooth interface. The initial device name is “TL31/301 BT Printer” and the initial password is “1234”. Users can use <SP-TL31/301 Setting Tool Software> to modify the device name and password as needed. -
Page 13: Indicator Light, Buzzer And Button Operation
3.4 Indicator light, buzzer and button operation The SP-TL31 printer has one button, one built-in buzzer and one Red and green two-color indicator. 【FEED】is the paper feed button. You can use the print command to enable or disable the button switch function. -
Page 14: Cleaning And Maintenance
® SPRT SP-TL31Thermal Label Printer User’s Manual The black mark pre-print regulations are as below: Printing Position: As the picture above, the black mark should be printed on the right edge of the side of words Width range: width≥7mm Height range: 4mm≤height≤6mm Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black mark paper... - Page 15 ® SPRT SP-TL31Thermal Label Printer User’s Manual...
- Page 16 ® SPRT SP-TL31Thermal Label Printer User’s Manual Appendix A Setting description: Use [Paper Hatch Cover] to select the setting item. Each time you press [Paper Hatch Cover], the setting item changes to the next item, and the current setting value of the item is displayed.
- Page 17 ® SPRT SP-TL31Thermal Label Printer User’s Manual 5.Printing direction setting: 6.Black mark on setting: 7.Printer mode setting: 8.Reprint setting for out of paper: Same as 【Black mark on setting】 9.Printing rapid setting: Speed setting item:...
