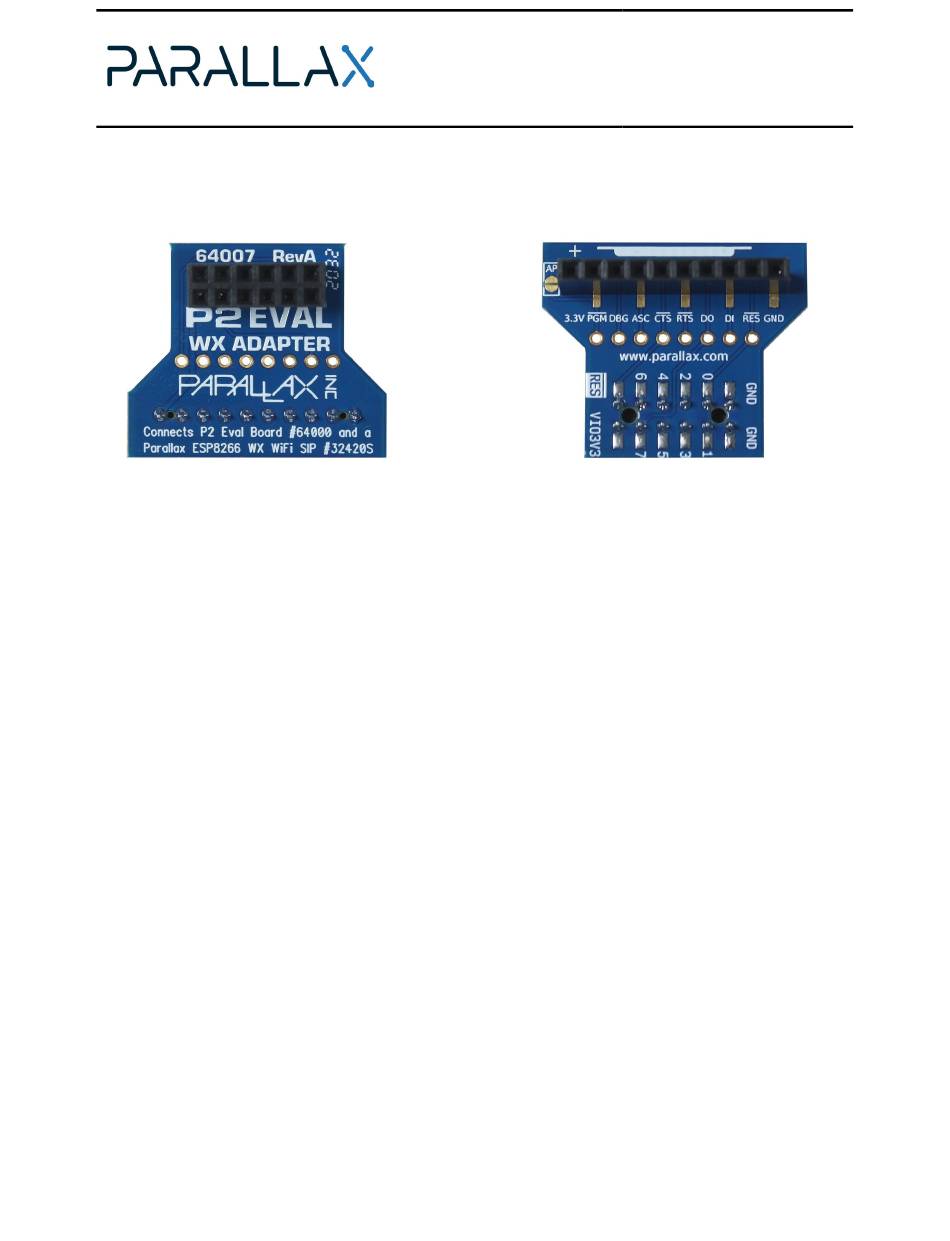

P2 WX Adapter Add-on Board (#64007)
This adapter provides a convenient way to add wireless programming and serial communication
capabilities to the Parallax Propeller P2 microcontroller. The adapter connects a Parallax ESP8266 WX
WiFi SIP module to any P2 development board with a standard 2x6 way accessory header.
The WX adapter can be connected to any P2 accessory header for serial-over-WiFi communications. For
wireless programming, look for the P56–P63 header marked with the "RES" logo.
Serial-over-WiFi communications from any accessory header is available with any ESP8266 WiFi SIP
module firmware version. To add the feature for programming the Propeller 2 wirelessly refer to the
instructions for upgrading your ESP8266 WiFi SIP module firmware to the latest version. P2 WiFi firmware
has a drag/drop P2 loader on its self-hosted web page, which will accept a P2 program binary file
compiled in any language.
Features
Connects a Parallax WX WiFi ESP8266 SIP module to the Propeller 2 Accessory Header
●
Allows wireless programming when used with an accessory header with the "RES" logo
●
Load a binary file created in any P2 programming software to the Propeller 2 over WiFi
●
Connect to any 2x6 way accessory header for serial-over-WiFi communication
●
Unpopulated pads allow access to all the WiFi module SIP control signals, handy for attaching
●
logic probes.
Golden Egg shaped Access Point (AP) enable pads.
●
Specifications
10-pin SIP socket with 0.1" spacing for the Parallax WX WiFi ESP8266 SIP Module (#32420S)
●
Unpopulated 8-pin SIP through-hole pads with 0.1" spacing for access to the WiFi module PGM,
●
DBG, ASC, CTS, RTS, DO, DI and RES control signals
2x6 female socket with 0.1" spacing compatible with the standard Parallax P2 Accessory sockets
●
PCB Dimensions: 1.2 x 1.0 in (30.48 x 25.4 mm)
●
Operating temperature: -40 to +185 °F (-40 to +85 °C)
●
Copyright © Parallax Inc.
Web Store: www.parallax.com
Tutorials: learn.parallax.com
Sales: sales@parallax.com
Tech Support: support@parallax.com
P2 WX Adapter Add-on Board (#64007)
Sales: (888) 512-1024
Educator Hotline: (916) 701-8625
Office: (916) 624-8333
Fax: (916) 624-8003
v1.0 11/12/2020 Page 1 of 7
Advertisement
Related Manuals for Parallax 64007
Summary of Contents for Parallax 64007
- Page 1 Golden Egg shaped Access Point (AP) enable pads. ● Specifications 10-pin SIP socket with 0.1" spacing for the Parallax WX WiFi ESP8266 SIP Module (#32420S) ● Unpopulated 8-pin SIP through-hole pads with 0.1” spacing for access to the WiFi module PGM, ●...
-
Page 2: Items Required
● Propeller 2 programming software that generates binary files, such as the Propeller Tool 2.3 ● Latest P2 firmware and example binary, downloaded from the 64007 product page at ● www.parallax.com . The file “LED57.binary” will blink an LED connected to P2 I/O pin P57. - Page 3 h ttp://192.168.4.1 2. You should see the Parallax Wireless Module webpage, with various menus on the left. If the menus are not visible and you are using a small-display device, then you might need to rotate the display to landscape view.
- Page 4 2. Once connected to the WiFi module, open your web-browser (Chrome or Edge recommended) and visit this address: h ttp://192.168.4.1 3. Click on the “P2 Drop Loader” menu on the left-hand-side.. Copyright © Parallax Inc. P2 WX Adapter Add-on Board (#64007) v1.0 11/12/2020 Page 4 of 7...
- Page 5 5. The upload will happen very quickly, and when successful the webpage will report the status message “Done!”. Tip! I f uploading the LED blink demo, ensure you have the P2 Edge Module “LED” dip-switch turned on! Copyright © Parallax Inc. P2 WX Adapter Add-on Board (#64007) v1.0 11/12/2020 Page 5 of 7...
-
Page 6: Pin Connections
IO13) VIO3V3 3.3V Supply voltage to WiFi module Pin connection diagram: Dark blue traces on top of PCB, light blue on bottom of PCB Copyright © Parallax Inc. P2 WX Adapter Add-on Board (#64007) v1.0 11/12/2020 Page 6 of 7... -
Page 7: Revision History
Dimensions Resources and Downloads Check for the latest version of this document and the schematic diagram from the P2 WX Adapter product page. Go to www.parallax.com and search 64007. Revision History Version 1.0: Original release. Copyright © Parallax Inc. P2 WX Adapter Add-on Board (#64007)
