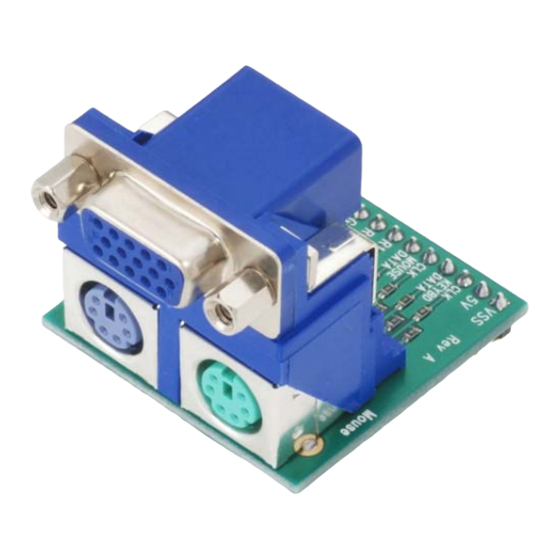

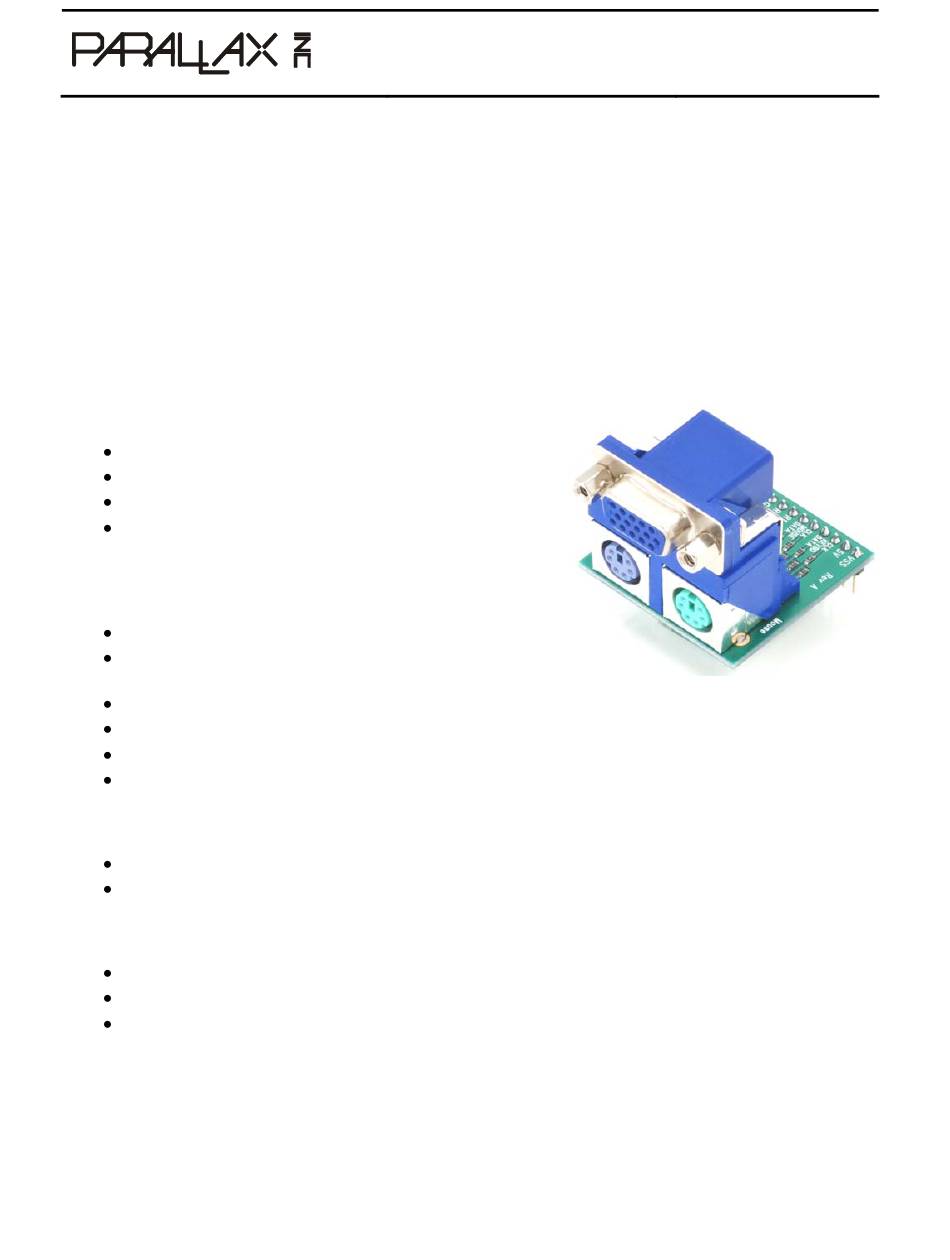

VGA-PS/2 Adapter Board Kit (#28075)
The VGA-PS/2 Adapter Board Kit makes it easy to add VGA, keyboard and mouse connections to any
breadboard project or prototype. PS/2 type keyboards and mice are supported by this kit as well as
standard VGA monitors.
microcontroller, and the I/O connections are designed to line up with P16 through P27 on the Propeller
chip. When using these I/O pins this board is directly compatible with the Keyboard, Mouse and VGA
objects that are also used with the Propeller Demo Board. These objects are available in the Propeller
Tool Library as well as on the Propeller Object Exchange.
Features
SIP header makes breadboard connection easy
Stacked connectors take up minimal space
Kit form allows you to customize installation
All surface-mount parts are in place; only soldering of
through-hole components is required
Key Specifications
Power requirements: 5 VDC
Power consumption: Determined by connected
peripherals
Interface (VGA): 2-bit DAC VGA signal
Communication (PS/2): TTL synchronous serial interface (PS/2 keyboard & mouse)
Operating temperature: 32 to 158 °F (0 to 70 °C)
Dimensions: 1.50" L x 1.50" W x 1.65" H (38.10mm L x 38.10mm W x 41.92mm H)
Application Ideas
Breaboard prototyping of projects requiring keyboard/mouse/VGA
Panel mounting of VGA-PS/2 connectors
Kit Contents
VGA-PS/2 Adapter Board PCB
VGA-PS/2 connector assembly
14-pin SIP male-male header
Copyright © Parallax Inc.
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
The VGA-PS/2 Adapter Board Kit was designed for use with the Propeller
VGA-PS/2 Adapter Board Kit (#28075)
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267
v1.0 8/20/2009 Page 1 of 3
Advertisement
Summary of Contents for Parallax VGA-PS/2
- Page 1 Tech Support: (888) 997-8267 VGA-PS/2 Adapter Board Kit (#28075) The VGA-PS/2 Adapter Board Kit makes it easy to add VGA, keyboard and mouse connections to any breadboard project or prototype. PS/2 type keyboards and mice are supported by this kit as well as standard VGA monitors.
- Page 2 If you instead planned on soldering wires, a ribbon cable or some other connector you can do that here instead of using the included 14-pin SIP Header. Copyright © Parallax Inc. VGA-PS/2 Adapter Board Kit (#28075) v1.0 8/20/2009 Page 2 of 3...
- Page 3 You can obtain the Propeller Tool software from the Downloads link at http://www.parallax.com/propeller You can obtain additional objects by visiting the object exchange at: http://obex.parallax.com Copyright © Parallax Inc. VGA-PS/2 Adapter Board Kit (#28075) v1.0 8/20/2009 Page 3 of 3...
