Nodon SIN-2-2-01 - ON/OFF Lighting Relay Switch Manual

Reference: SIN-2-2-01
Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC - 2 x 5A
Consumption: <1W
Maximum output power: 2 x 1150W (Resistive load)
List of compatible loads available on nodon.fr/loads
Radio frequency range: 868.0 to 868.6 Mhz
RF power max: +3dBm
Range: up to 30m indoor
Operational temperature: -10°C to 40°C
Protection rating: IP 30
Pairing: up to 22 controllers
EEP (EnOcean Profile): D2-01-12
Dimensions: 40 mm (l) x 44 mm (L) x 16.9 mm (h)
Weight: 34 g
Warranty: 2 years

USE CAUTIONS

  • Never use the device if it is not correctly installed and placed inside a connecting box in conformity with the current norms.
  • Keep the product far away from liquids.

DANGER OF ELECTROCUTION

shock hazard BEFORE ANY INSTALLATION MAKE SURE THE POWER SUPPLY IS DISCONNECTED TO AVOID ANY RISK OF ELECTROCUTION.

Directly cut the power supply from the breaker box to avoid any risk of electrocution. This relay switch is designed to be used power up, a wrong installation can create a fire or an electric shock. If you are not confident about electrical installation, please ask a professional.

The relay switch must be installed and connected carefully following the instructions of this user guide. We will not be responsible for any loss or damage resulting from a non-respect of the instructions of this user guide. Cut the power supply before any operation and don't do any modification if the LED is still ON.

INSTALLATION

Thanks to its small size, the ON/OFF Lighting Relay Switch can be installed anywhere in the wall or the ceiling (behind an existing wall switch, in a false ceiling, etc...).
Installation

information TIP
Add the ON/OFF Lighting Relay Switch to the electric panel with NodOn DIN Rail Box*.

* Optional accessory

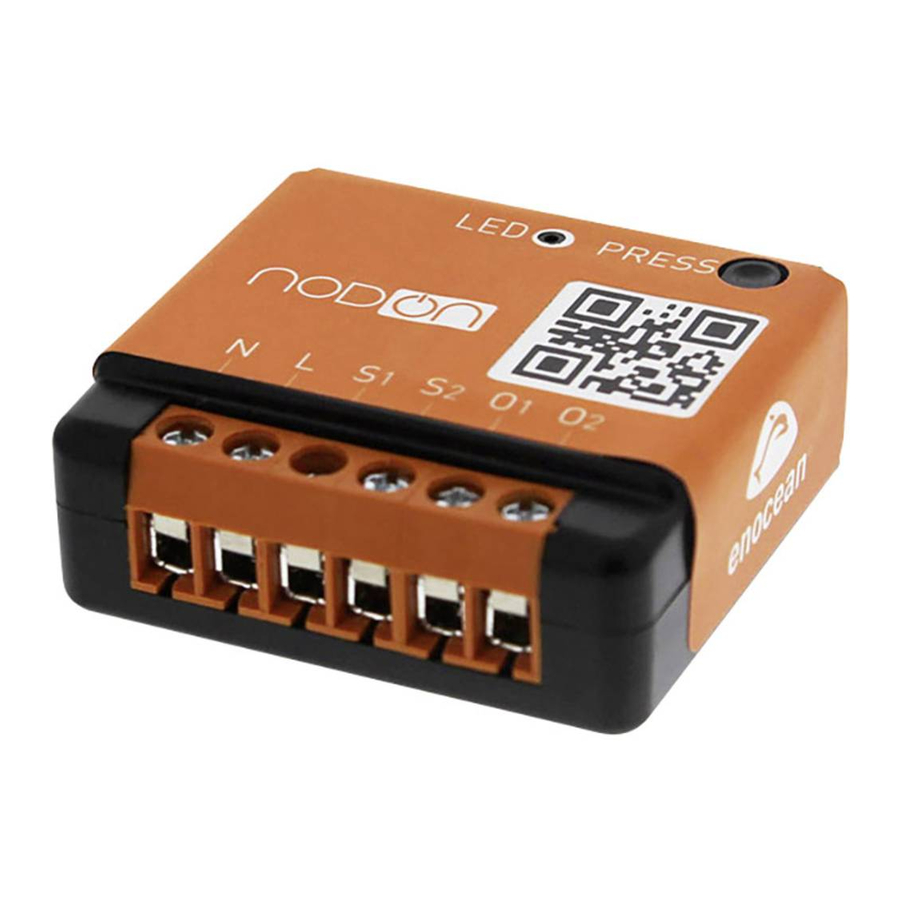

RELAY SWITCH INPUT/OUTPUT

N Terminal for the Neutral
L Terminal for the Line
Input terminal for the wired switch 1*
Input terminal for the wired switch 2*
Output 1 (controlled by )
Output 2 (controlled by )

Each terminal can accept a cable of 2.5mm² maximum, stripped of 8mm.

*Wired switch optional (see the installation diagrams section)

INSTALLATION DIAGRAM FOR ONE OR TWO LIGHTS

Installation Diagram for One or Two Lights

*Wired switch optional (see the installation diagrams section)

Install the Wired Switch

  1. Cut the power supply
  2. Dismantle the wired switch controlling the light(s) you want to connect.
  3. Install the ON/OFF Lighting Relay Switch according to diagram figure 1.
  4. Reinstall the wired switch.
  5. Turn the power supply back ON.

AUTO-DETECTION OF SWITCH TYPE

After turning the power supply ON, do a single push on the wired wall switch. The relay switch has an auto-detection system to automatically detect the type of wired wall switch (rocker or push-button) wired at the input.

Note: The same configuration is applied for both inputs ( and ). It is not possible to combine a rocker switch with a push-button. To perform a new auto-detection, the ON/OFF Lighting Relay Switch must be manually reset (see reset procedure).

PAIRING PROCEDURE

To add a remote or a wall switch or the Soft Button (EnOcean compatible) you must enter the pairing mode, your light must be switched OFF.

Relay switch must be power supplied.

FOR CHANNEL 1

( / )

Two modes:

  1. From the module
    Channel 1 Pairing from the Module
    Launch the pairing by doing 3 consecutive presses on the relay switch button. The LED blinks red.
  2. From the wired wall switch
    Channel 1 Pairing from the Wired Wall Switch - Step 1
    Action the wired wall switch 3 times (in less than a second). The lighting connected in blinks, meaning that the channel 1 ( / ) is in "pairing/unpairing mode".

    You have 30 seconds to pair your controller by briefly pressing (in less than a second) on the button of your choice, this one will turn the light ON for the channel 1, the opposite button will turn it OFF.

    You have now 30 seconds to pair your Soft Button by doing 5 brief consecutive presses on the button.
    Channel 1 Pairing from the Wired Wall Switch - Step 2
    The LED of the relay switch will blink green twice, confirming the pairing of the two devices.

    The light stops to blink, confirming the pairing of the two devices.

FOR CHANNEL 2

( / )

Two modes

  1. From the relay switch
    Channel 2 Pairing from the Relay Switch
    Launch the pairing by doing 3 consecutive presses on the relay switch button. The LED blinks red. Wait 1 second and do a new press on the relay switch button.
  2. From the wired wall switch
    Channel 2 Pairing from the Wired Wall Switch
    Press the wall switch 3 times (in less than a second). Wait 1 second and do a new press on the wall switch. The light connected in blinks, meaning that the channel 1 ( / ) is in "Pairing/Unpairing mode".
    Continue with steps 2 and 3a/3b to pair your controller.

Note: if the LED blinks orange during the pairing procedure, it means that more than 22 controllers are paired and that no more controller can be paired. You must remove one controller to add a new one.

USE OF YOUR SOFT BUTTON

The Soft Button will work as follows:

Types of press Action
Single press Reversal
Double press ON
Long press OFF

PAIRING WITH A HOME AUTOMATION GATEWAY


For more details on how to pair a home automation gateway or other compatible products, please consult the "Support" section on nodon.fr/en/

UNPAIRING PROCEDURE

Do the same procedure as pairing (see "pairing procedure") and takes care of pressing the button chosen to control your gate/garage door/electric latch or your electrical outlet.

RESET

Relay switch must be power supplied.

  1. Press more than 5 seconds on your module's button. The LED blinks orange.
  2. Press once again the button (short press) to confirm the reset. If the reset is correct, the LED blinks alternatively in red and green and stays green. Start again if necessary.
  3. Your module has now its original settings.

APPROVALS AND CERTIFICATIONS


Hereby, NodOn SAS declares that this radio equipment is conform to the RED directive 2014/53/UE. The integral text of the EU declaration of conformity is available at the following online address: nodon.fr/en/ "support" section.


The presence of this symbol on a product indicates that this one is conform to the European directive 2012/19/UE. Find out more about the provisions in force in your region regarding the separate collection of electrical and electronical devices. Respect the local rules and do not throw out the product with common domestic wastes. The correct rejection of ancient products allows to preserve the environment and health.


This product must be used indoor only.


This product is conform to EnOcean radio protocol.

CONTACT

NodOn SAS
121 rue des Hêtres
45590 St CYR EN VAL
(FRANCE)

AFTER SALES SERVICE

nodon.fr/en/ "support" section
