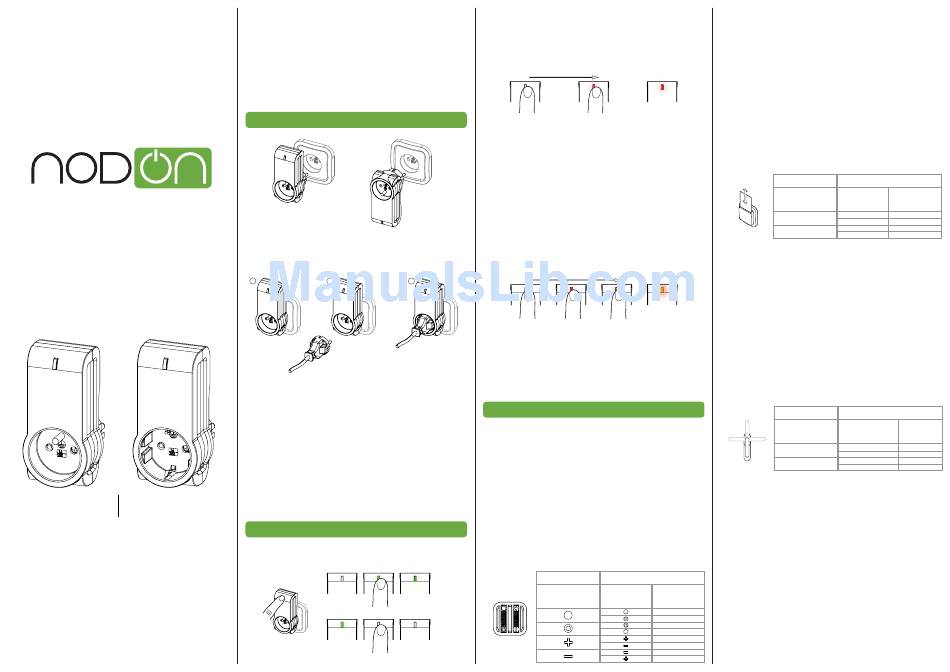

USER GUIDE
SMART PLUG
Smart Plug Type E Smart Plug Schuko
Reference: ASP-2-1-00 Reference: ASP-2-1-10
Power supply: 230V AC +/-10% - 50Hz
Self-consumption <1W
Max. power: - 3000W continuous (Resistive load)
- 3500W temporary (Resistive load)
Radio frequency: 868.3MHz
Indoor range: 30m
Operational temperature: -10°C / 50°C
IP20
Memory capacity: 24 emitters
EEP (Profil EnOcean ): D2-01-0A
®
Dimensions: L 51mm x l 36mm x h 104mm
Weight: 137g
Warranty: 2 years
The NodOn Smart Plug allows to control (Power ON or
®
Power OFF) an electrical appliance plugged on it:
bedside lamp, electrical heater, coffee machine, etc.
Once set up (see the set up procedures below), the
NodOn Smart Plug can be controlled by different
®
EnOcean compliant emitters (wall switch, remote
®
controller, sensor, window handle, card switch, etc.).
Check the compliant emitters list below..
INSTALLATION
Thanks to an innovative design, the Smart Plug can be
mounted on the power outlet in either side, head up or
head down.
1 2 3
1. Plug the NodOn ® Smart Plug on your power outlet.
2. Plug the electrical appliance, you want to control, on
the NodOn Smart Plug.
®
3. The Smart Plug allows to switch ON (Power ON) or
switch OFF (Power OFF) the electrical appliance you
want to control.
Switching ON or OFF can be done through the Smart
Plug local button, or any kind of emitter paired to the
Smart Plug (check the next steps of the user guide).
If the electrical appliance (ex.: bedside lamp) has an ON/OFF button, make
sure it's positioned on "ON", in order that the power ON of the appliance
by the Smart Plug will switch ON the lamp.
SMART PLUG MODES
"Local Control"
<1 sec
<1 sec
The Smart Plug can be switched ON or OFF locally,
through a short press on the local button. By default,
the Smart Plug is switched ON when the LED is green,
OFF when the LED is OFF.
"Pairing Mode"
2 sec
Press on the Smart Plug button during 2 seconds until
the LED becomes red. Release the button, the LED will
then glow in red. The Smart Plug is in "Pairing mode".
To pair an emitter, follow the "Pairing procedures". To
confirm that the pairing is OK, the LED will blink in
green.
If the LED blinks orange during "Pairing mode", it
means that the memory of the Smart Plug is full, or
that no emitter has been paired during the process.
In case of full memory, please unpair an emitter before
being able to pair a new one.
"Factory Reset"
>5 sec
To perform a factory reset, press on the Smart Plug
button during 5 seconds until the LED becomes orange.
Release the button, the LED will blink red/green.
The factory reset will remove all the emitters from the
Smart Plug memory, and set all the parameters of the
Smart Plug to default value.
PAIRING PROCEDURES
Wall Switch, Remote Controller, etc.
EnOcean Type "Rocker Switch" (EEP: F6-02-01)
®
To pair this type of emitter to the Smart Plug:
1. Put the Smart Plug in "Pairing mode".
2. Press any button of the emitter. The button pressed
during the pairing process is the button which will
switch ON the Smart Plug. The opposite button will
switch OFF the Smart Plug.
The other buttons of the emitter will not be able to
control the Smart Plug.
PAIRING MODE
ON
Button pressed during Button pressed on
"Pairing mode" the emitter
OFF
To unpair this emitter:
1. Put the Smart Plug in "Pairing mode".
2. Press any button of the emitter
The emitter can't control the Smart Plug anymore.
Key Card Activated Switch
EnOcean Type "Key Card Activated Switch" (EEP: F6-04-01)
®
{Blinking}
To pair this type of emitter to the Smart Plug:
1. Put the Smart Plug in "Pairing mode".
2. Insert or remove the card from the reader. The
movement of the card done during the pairing process
is the movement which will switch ON the Smart Plug.
The opposite movement will switch OFF the Smart Plug
3. To initialize the Smart Plug, insert and remove (or
remove and insert) the card.
PAIRING MODE
Movement done during
"Pairing mode"
INSERT
REMOVE
To unpair this emitter:
1. Put the Smart Plug in "Pairing mode".
2. Insert or remove the card.
{Blinking}
The emitter can't control the Smart Plug anymore.
Window Handle
EnOcean ® Type "Window Handle" (EEP: F6-10-00)
To pair this type of emitter to the Smart Plug:
1. Put the Smart Plug in "Pairing mode".
2. Make the relevant movement with the handle
according to your need. Check below table.
Note: "Bottom hung" and "Open" position are identically considered
PAIRING MODE
Open
Bottom hung
Movement done during
Open Open
"pairing mode"
Bottom hung Bottom hung
OPEN or BOTTOM HUNG OPENED or BOTTOM HUNG
CLOSE
Close
To unpair this emitter
1. Put the Smart Plug in "pairing mode".
2. Make any kind of movement with the handle.
The emitter can't control the Smart Plug anymore.
Opening sensor
EnOcean Type "Magnetic Contact" (EEP: D5-00-01)
®
To pair this type of emitter to the Smart Plug:
1. Put the Smart Plug in "Pairing mode".
USAGE
2. Press on the "learning" button of the opening sensor.
The position (close or far) of the magnet from the
Smart Plug state
sensor when the "learning" button is pressed is the
ON
position which will switch ON the Smart Plug. The
OFF
ON opposite position will switch OFF the Smart Plug.
OFF
Check the table below.
ON
OFF
ON
OFF
USAGE
Card position Smart Plug state
INSERTED ON
REMOVED OFF
REMOVED ON
INSERTED OFF
USAGE
Handle position Smart Plug state
OFF
CLOSED ON
CLOSED ON
OPENED or BOTTOM HUNG
OFF
