DELTA DORE Easy Plug E16EM, F16EM, G13EM - Smart Plug Manual

Technical characteristics

• Power supply: 100-240V~50Hz/60Hz, 100mA
• Consumption on standby: <0.5W
• Type 1.B action
• Pollution level II
• Rated impulse withstand voltage: 2500 V
• Wireless range in open space: up to 100 metres
• Operating temperature: -10°C to +50°C
• Relative humidity: 95% Max.
• Connectivity: Zigbee
• Frequency used: 2400-2483,5MHz
• Maximum wireless power 10 mW
• Measurements: H. 79.6 x L. 67.9 x D. 72 mm

* Depending on version:

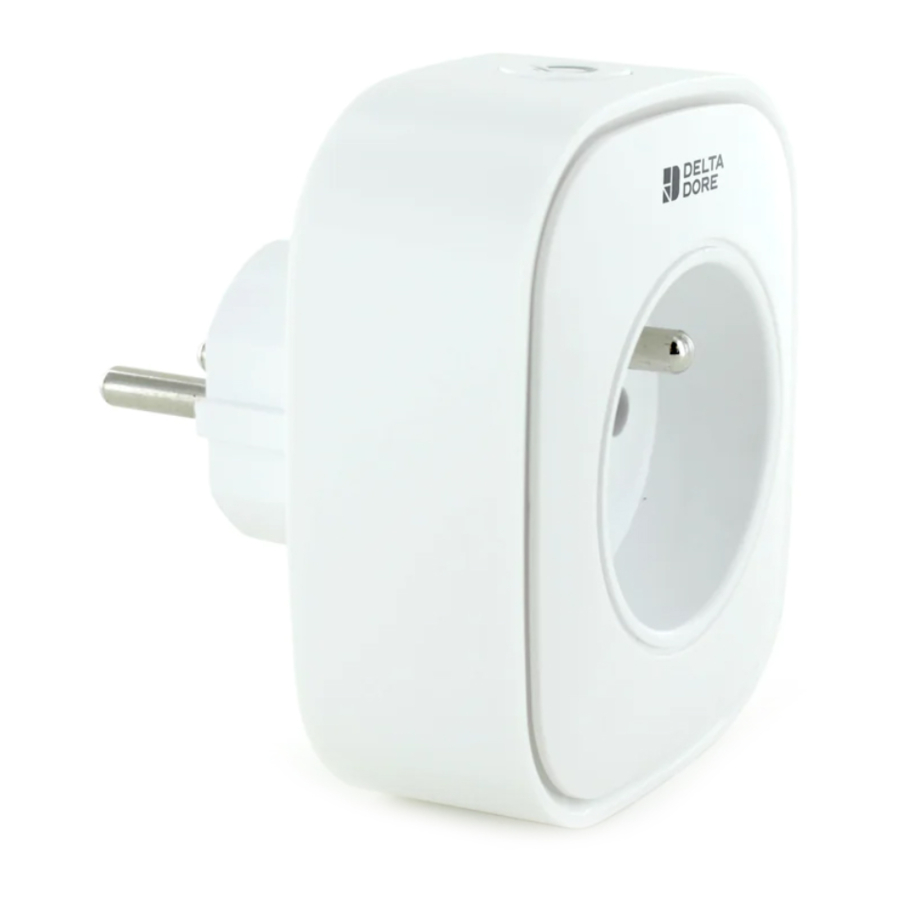

Easy Plug E16EM (FR)
Easy Plug F16EM (EU)
Maximum load: 16A - 3680 W

Easy Plug G13EM (UK)
Maximum load: 13A - 3000 W

Controls

Control the device linked to your Easy Plug remotely (using a smartphone or voice controls).

• Stop/Start
• Instant consumption measurements and history
• Programming
• Planned scenarios

Installation

This product should only be installed indoors. Do not connect devices that are likely to cause fires when they are left unmonitored (for example, an iron)

1. Connect the Easy Plug to an electric socket.
2. Connect the device of your choice (lamp, coffee machine, small appliance etc.)

What the lights mean

Pairing with the Tydom app

Download the Tydom app.

Depending on your device: Go to Google Play or the App Store and search for and download the free "Tydom" app.

Make sure that your smartphone/tablet is connected to the local network. Launch the Tydom app.

Go to your installation's "Settings" page, select > Add a device >Socket >Easy Plug, then follow the instructions.

Leave the connected device switch on to control it remotely using the Tydom app.

Reset

Press and hold the Easy Plug button for 5 seconds until the light flashes slowly.

• Release.

All paired devices are now deleted.

Safety warnings

Risk of fire, burns and/or electrocution

• An electrical surge can damage the socket and cause a fire or electrical accident.
• Never use damaged or defective sockets.
• Do not attempt to dismantle or repair the unit yourself; an after-sales service is available.

Damaged devices
Check that any electrical device attached to the socket absolutely meets the following technical specifications:
Easy Plug E16EM (FR) / Easy Plug F16EM (EU): Maximum load: 16A - 3680 W
Easy Plug G13EM (UK): Maximum load 13A - 3000 W

UK Statutory Instruments 2017 No. 1206, the Radio Equipment Regulations 2017

Delta Dore declares that the product is in conformity with the relevant statutory requirements applicable to the specific product.

The UK declaration of conformity for this equipment is available, on request, from: «Technical information» department DELTA DORE - 35270 BONNEMAIN (France) - e-mail: info.techniques@deltadore.com

European Directive RED 2014/53/UE (supersedes R&TTE 1999/5/CE)

Delta Dore hereby declares that the equipment complies with the essential requirements and other relevant provisions of the Directive RED 2014/53/UE.

The EU declaration of conformity for this equipment is available, on request, from: «Technical information» department DELTA DORE - 35270 BONNEMAIN (France) - e-mail: info.techniques@deltadore.com

European Directive 2012/19/EC (WEEE)

Disposal of old electrical & electronic equipment (applicable in the European Union and in other European countries with separate collection systems). This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, such as for example:

• sales points, in case you buy a new and similar product
• local collection points (waste collection centre, local recycling center, etc).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequence for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
