TP-Link Aginet MX515v Quick Installation Manual

Quick Installation Guide

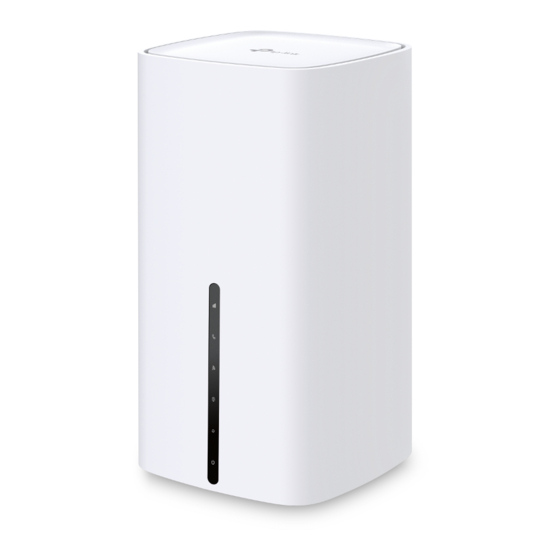

Wireless 5G/4G+ Telephony Router
Images may differ from actual products.
©2022 TP-Link 7109505651 REV1.0.0
2. Verify the Hardware Connection
Check the following LEDs' status. If the Internet LED
connected to the internet successfully.
Power Internet Wi-Fi
On On On
Note: If the Internet LED does not turn on, please refer to Q2 of Need Help? in this guide.
For better Internet connectivity, make sure the LEDs are lit in green or white.
For the Signal Strength LEDs, green indicates signal strength of 50% -75% and white
indicates signal strength above 75%.
For the Network Type LED, green indicates that the device is on a 4G network and
white indicates that the device is on a 5G or 4G+ network (depending on the router).
Otherwise, try relocating the router to a spot that may receive a stronger mobile
network signal, such as near a window.
is on, your router is
1. Connect the Hardware
Nano
SIM Card
a. With the gold contacts
facing right, insert the
nano SIM card into the slot
until you hear a click.
Note: The RESET button is actually a shared RESET/Wi-Fi button (short press for 5 seconds or less is for Wi-Fi function, long
press for 5 seconds or more is for RESET function). A short press will cause the Wi-Fi in use to turn off.
3. Enjoy the Internet
Wired
Connect your computers to the router's LAN ports via Ethernet cables.
Wireless
a. Find the SSID (network name) and wireless password printed on the label at the
bottom of the router.
Power: 12V 2A
Default Access:
http://tplinkmodem.net
TP-Link Corporation Limited
Suite 901, New East Ocean Centre,
Tsim Sha Tsui, Hong Kong
b.
Click the network icon of your computer or go to Wi-Fi settings of your smart device,
and then select the SSID to join the network.
Power adapter
b. Connect the
power adapter
and turn on the
router.
Model:NX510v(EU1) Ver:1.0
S/N:XXXXXXXXXXXXX
IMEI:XXXXXXXXXXXXXXX
MAC:XX-XX-XX-XX-XX-XX
Wireless Password/PIN:XXXXXXXX
SSID:TP-Link_XXXX
