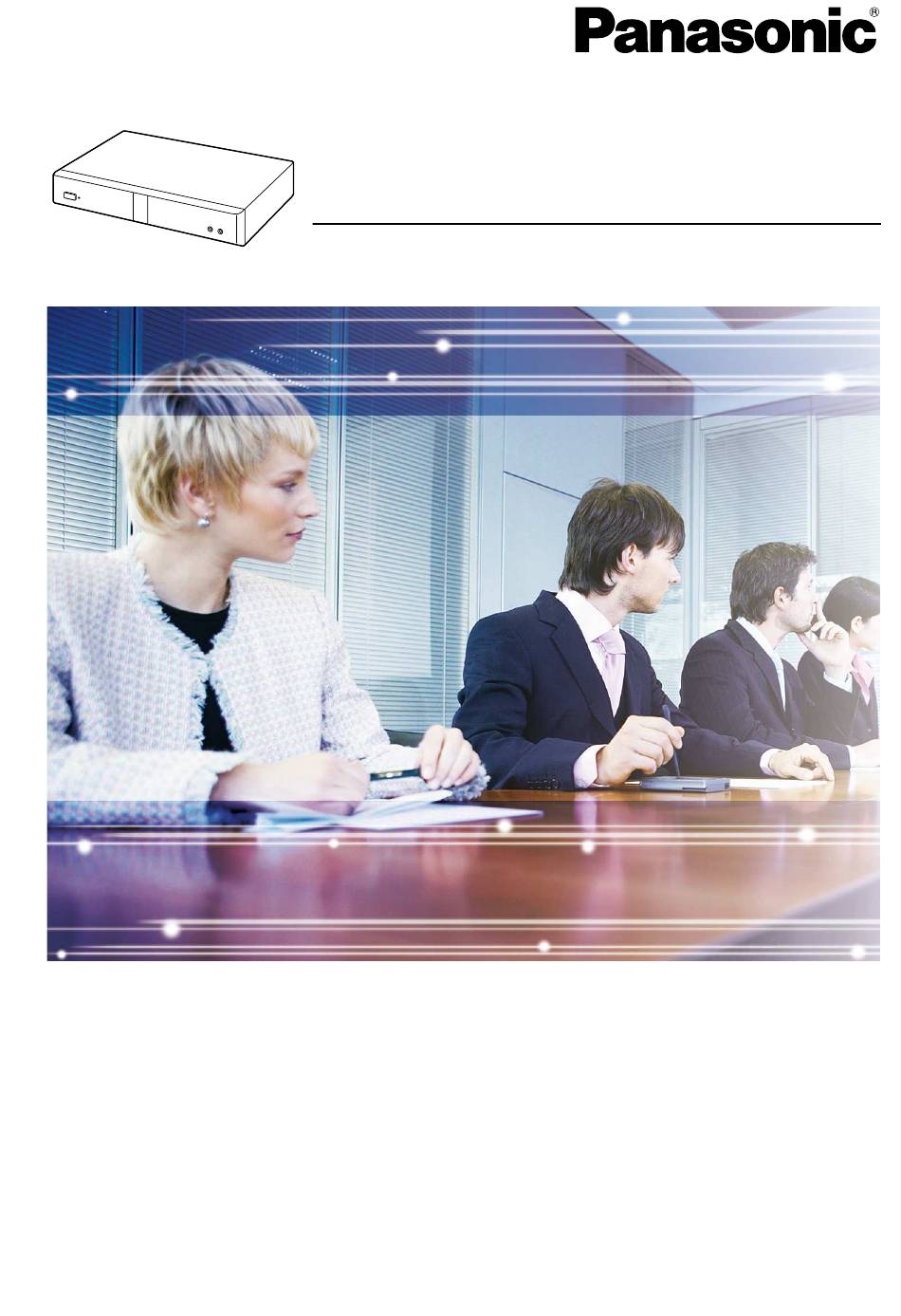

Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
KX-VC1300/KX-VC1600: Software File Version 4.10 or later
In this manual, the suffix of each model number (e.g., KX-VCA001XX) is omitted unless necessary.
In this manual, HD Visual Communication is abbreviated as "HDVC".
HD Visual Communication Unit
KX-VC1300/KX-VC1600
Model No.
User Manual
Document Version: 2014-11
Advertisement
Related Manuals for Panasonic KX-VC1300
Summary of Contents for Panasonic KX-VC1300
- Page 1 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. KX-VC1300/KX-VC1600: Software File Version 4.10 or later In this manual, the suffix of each model number (e.g., KX-VCA001XX) is omitted unless necessary.
- Page 2 Introduction Introduction Feature Highlights Display Display Video camera Computer Microphone Computer Display Display Internet Video camera Intranet Router Video NAT Traversal camera Service Microphone Router Microphone Lifelike Video Conference Call You can experience lifelike video conference calls with smooth, high-quality video and clear stereo sound.
- Page 3 Internet. This allows seamless connectivity with units both inside and outside of your company. Multi-party connections The KX-VC1300 has a built-in MCU and can establish multiple connections with a maximum of 4 parties. The KX-VC1600 can establish multiple connections with a maximum of 6 parties standard, and is expandable to a maximum of 10 parties.
- Page 4 Introduction Making Video Conference Calls via SIP Server By using a SIP server, you can establish video conference calls not just by IP address, but also by specifying a SIP URI (SIP user name@SIP domain name) instead. If the other party uses the same SIP domain name as you, you can make a video conference call by specifying only the SIP user name.
- Page 5 Also, some software parts of this product are licensed under the MOZILLA PUBLIC LICENSE (MPL). At least three (3) years from delivery of products, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge of no more than the cost of physically distributing source code, a complete machine-readable copy of the corresponding source code and the copyright notices covered under GPL, LGPL, and MPL.
- Page 6 Introduction Portions of this software are © 1996-2012 RADVISION Ltd. All intellectual property rights in such portions of the Software and documentation are owned by RADVISION and are protected by United States copyright laws, other applicable copyright laws and international treaty provisions. RADVISION and its suppliers retain all rights not expressly granted.
- Page 7 Table of Contents Table of Contents For Your Safety ..................10 For Your Safety .......................10 Before Operation ..................12 Notes about Operation ....................12 Data Security ........................13 Privacy and Right of Publicity ..................13 Precaution ....................14 Precaution ........................14 Preparation .....................16 Accessory/Optional Accessory Information ..............16 Optional Accessory ......................16 Part Names and Usage ....................18 Main Unit (Front) ......................18...
- Page 8 Table of Contents Muting the Microphone ....................69 Reducing Microphone Noise ..................71 Displaying a Computer’s Screen and the Sub Video Camera’s Image ......72 Controlling a Video Camera ..............75 Controlling a Video Camera ...................75 Registering a Preset .......................78 Recalling a Registered Preset ..................80 Changing Video Camera Settings .................81 Displaying the Connection Status ............86 Displaying the Connection Status .................86...
- Page 9 Table of Contents Making Call Type Settings ....................118 Making SIP Settings .....................118 Making H.323 Settings ....................120 Making Codec Settings ....................121 Making Video Output Settings ..................122 Making Audio Input/Output Settings ................124 Making GUI Settings ....................124 Making HDMI Settings ....................125 Setting Shortcuts ......................125 Setting Local Site Selection ..................126 Exporting Data ......................126 Importing Data ......................127...
- Page 10 R6 (AA) type dry cell. intended to alert the user to the presence of uninsulated "dangerous voltage" within For use only with power supply Panasonic, the product’s enclosure that may be of PGLV1006. sufficient magnitude to constitute a risk of electric shock to persons.
- Page 11 For Your Safety Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 12 Before Operation Before Operation Notes about Operation Avoid placing the device in areas with high humidity, and exposing it to rain. Neither the main unit nor the power plug is water Please pay attention to the following points when using resistant.
- Page 13 By installing and using this device, you are responsible Panasonic is not responsible for any damages for maintaining the privacy and usage rights of images caused by improper use of this device.
- Page 14 A replacement fuse environment which could otherwise arise cover can be purchased from your local Panasonic from inappropriate waste handling. dealer. For more information about collection and...
- Page 15 Precaution For users in Taiwan only Notice • This product contains a CR coin lithium battery. When disposing of the product, the battery must be removed. Contact your dealer for details. Direct current symbol Alternating current symbol We declare under our sole responsibility that the product to which this declaration relates is in conformity with the standards or other normative documents following the provisions of Directives...
- Page 16 Preparation Preparation Accessory/Optional Accessory Information The following accessories are included: Included Accessories Accessories Quantity AC adaptor (Part No.: PGLV1006) Power cord Remote control (Part No.: N2QAYB001001) Batteries (R6 [AA] dry cell) Optional Accessory The following products are available as optional accessories. Proprietary main video camera Proprietary main video camera Proprietary main video camera...
- Page 17 "Activating Enhanced Features" (Page 128). Activation Model No. Product Name Target Model Description Key Type Extends the service Activation Key Card KX-VC1300 period of KX-VC KX-VCS701 Traversal 1 (NAT Traversal 1 Year) KX-VC1600 Series NAT Traversal Year Service. Extends the service...
- Page 18 Preparation Part Names and Usage Main Unit (Front) Power LED Shows the power status. The LED is green or red when the power is on and off when the power is off. Remote Control Signal Receiver Receives Remote Control signals. The maximum range of reception is approximately 8 m (26.2 ft) from front of the unit, and approximately 3 m (9.8 ft) from 20°...
- Page 19 Preparation Main Unit (Back) KX-VC1600 KX-VC1300 Camera Control terminal Not used. RS-232C terminal Normally not used. Used to connect a computer for maintenance. USB jack (Page 126, Page 128) Used to connect a USB memory device for saving the operation log and for updating the software.
- Page 20 Preparation RGB terminal (Page 30) Used to connect a computer for sending screens to participants. HDMI terminal (Page 30) Used to connect a computer for sending screens to participants. Sub Camera terminal (Page 30) Used to connect a second, sub video camera with an HDMI cable for sharing video contents apart from the main video camera.
