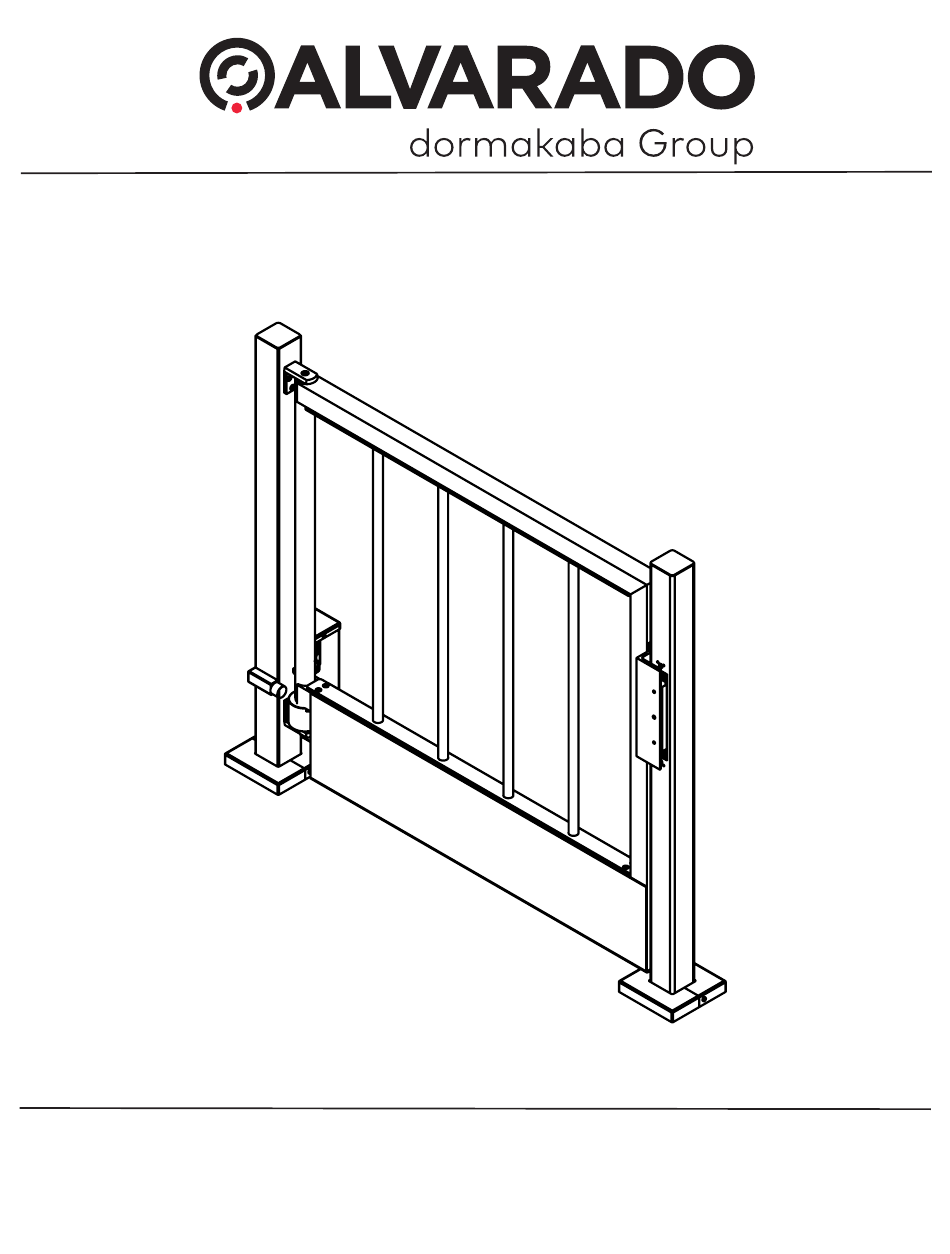

- Page 1 VSG & VSGX Waist-High Security Gate Installation & Maintenance Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Phone: +1 (909) 591-8431 Fax: +1 (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD2996R4-0...
-
Page 2: Table Of Contents
VSG/VSGX Installation & Maintenance Contents Contents..................................2 ETL Certifi cation................................2 Safety Icons..................................3 General Safety Information.............................. 3 Safety Precautions................................3 Uncrating..................................3 Installation Tools Required.............................. 4 Parts List..................................4 Introduction..................................5 Product Overview..............................5 Swing Direction. -
Page 3: Safety Icons
General Safety Information The VSG-1/VSGX-1 single-direction waist-high gate has been designed, built, and tested by Alvarado. Every unit is factory-tested for safety and reliability before shipping. However, the unit may present a risk to persons and property if it is not installed and/or operated correctly. -
Page 4: Installation Tools Required
VSG/VSGX Installation & Maintenance Installation Tools Required • Heavy duty drill or roto hammer • Tape measure • 5/8" concrete drill bit • Torpedo level • Ratchet with 9/16" socket • Chalk line • Torque wrench • Safety glasses •... -
Page 5: Introduction
Introduction The VSG is a manual, waist-high, self-closing gate. This manual covers the physical installation process for the VSG gate as well as maintenance guidelines. It is highly recommended that this manual be read in its entirety before beginning the installation process. -
Page 6: Before You Begin
Outlets for Rail Mounting Connection points for Alvarado stainless steel rails can be installed in VSG latch and hinge posts. Before You Begin Use only skilled technicians for site preparation and installation of gate(s) using Alvarado's instructions. -
Page 7: Other Installation Considerations
If the posts are not installed at the correct distance and set plumb and square, the gate may not open or close properly and the magnetic lock may not work properly (on VSGX models). The hinge pivot and dampener are set at the factory and should not adjusted without consulting Alvarado Technical Support. Alvarado recommends following the guidelines below during the installation process. -
Page 8: Installation Steps
VSG/VSGX Installation & Maintenance Installation Steps Determine the location where the gate will be installed, taking into consideration the minimum width opening required. Refer to the "Space Requirements" section on page 8. Mark the locations (perpendicular to the gate centerline) for the hinge post and latch post centerlines. -
Page 9: Electrical Activation & Wiring Instructions
VSG/VSGX Installation & Maintenance Electrical Activation & Wiring Instructions Electrical gates must be connected to a low-voltage power source to operate. The following instructions detail the steps to setup on electrical connection for the fail-safe locking gates. Wiring at the Gate Location Plug the power supply into a wall outlet and verify it is delivering the expected 2A at 12VDC. -
Page 10: Connecting A Push Bar
VSG/VSGX Installation & Maintenance Connecting a Push Bar Refer to the diagram below if you will be using the optional push bar. 12VDC/2A Push Bar Maglock Power Supply Latch Post Normally Closed Switch Positive 18 AWG Cable 50’ Max Length Wiring at the Control Location On the power supply/switch-side of the conduit, install crimp connector receptacles on the conduit wire leads. -
Page 11: Troubleshooting
Refer to Maintenance. return to the center The VSG/VSGX gate is not level. Check the gate arm and latch post for level installation. Readjust or (home) position. reposition the posts for correct operation. Refer to "Installation Steps"... -
Page 12: Maintenance
• The frequency of regular maintenance is determined by gate usage and environment. However, Alvarado recommends regular maintenance be performed at least once per year. Perform maintenance more frequently if the gates are used frequently or are installed in humid or dusty environments. -
Page 13: Stainless Steel Surfaces
Maintenance (Cont.) VSG and VSGX gate surfaces are made from stainless steel with a #4 satin finish by default. These surfaces are resistant to corrosion, but they need to be checked and cleaned regularly to preserve their protective qualities. Surface deposits and scratches can damage the finish and cause the steel underneath to rust.
