USER'S MANUAL
Model No. – FT098
Note:
Following the principles of sustainable development, we may modify machines when necessary
and will not notify again. It all depends on the actual product.
Always choose a treadmill that can support at least 20 more kilograms of weight than your current
weight increases during running and walking

Advertisement

loading
Need help?

Need help?

Do you have a question about the FT098 and is the answer not in the manual?

Questions and answers

jalal
January 30, 2025

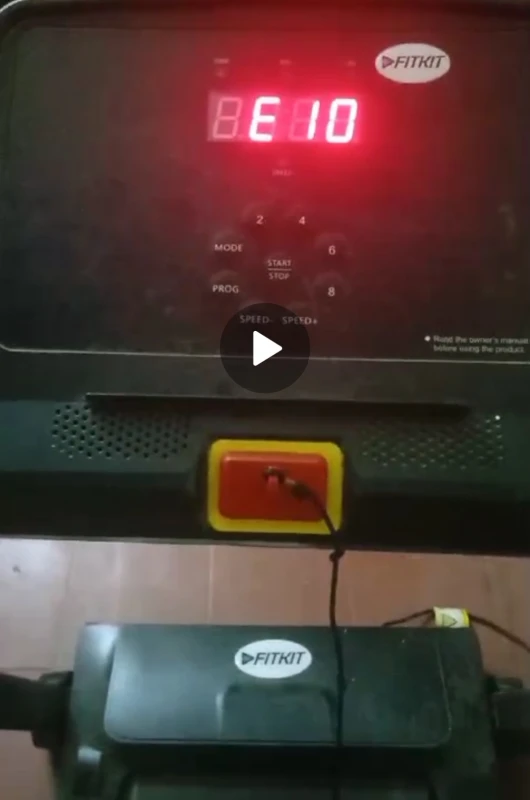

E10 Error mc not working

User image 679b8a20d5318
0

Related Manuals for FITKIT FT098

Summary of Contents for FITKIT FT098

  • Page 1 USER’S MANUAL Model No. – FT098 Note: Following the principles of sustainable development, we may modify machines when necessary and will not notify again. It all depends on the actual product. Always choose a treadmill that can support at least 20 more kilograms of weight than your current...

  • Page 2: Table Of Contents

    Contents 1. Product Brief ......................2. Security Precautions and Warning ................3. Installation Instructions ..................4. Using Instructions ....................5. Routine Maintenance .....................

  • Page 3: Product Brief

    1. Product Brief Product Name: Fitkit FT98 Series Motorized Treadmill Model: FT098 Main parameters and parts list Main technical parameters Parameters Names Description Input power voltage AC 220-240V(50/60Hz) Power 2 HP Speed 1.0-12.8 Km/h Running surface 1200*400 mm Max user weight...

  • Page 4: Security Precautions And Warning

    2. Security Precautions and Warnings Tips: Before folding the treadmill, make sure that the gradient is "zero". Notice: Please read the instructions carefully before use. ◆ Indoor using and storing the treadmill, avoid dampness, and do not spill water. ◆ Please wear suitable clothes and sneakers before exercise. Please do not exercise on the treadmill barefoot.
  • Page 5 ◆ Don't use when the power cord is damaged or power plug pin is loose. ----Otherwise will lead to an electric shock, short circuit or fire. ◆ Don't damage or bend by force or reverse the power cord. Don’t place heavy objects on machine, don't clamp the power line.

  • Page 6: Installation Instructions

    3. Installation Instructions When installing, simply fix all screws first, then tighten the screws when the installation of frame is done. 1. Put the machine flat on the ground and stand the columns and flip the console with the direction shown in the picture below.
  • Page 7 4. Use the plum knob to lock the main base and columns(Rotate clockwise, please refer to the arrow point direction).Uneven ground may cause trouble when rotate the knob, please lift the column slightly to left side(as shown below). In order to fold the machine easily next time, please don’t rotate the knob too tight.

  • Page 8: Using Instructions

    To lower the running deck, please hold the running deck while removing the plum knob. When the plum knob is fully removed, please lower the running deck slowly. Put the running deck on the ground, then install the plum knob back. Please keep children away from treadmill to avoid accidents.
  • Page 9 The treadmill can only start when the safety key is put on the yellow area of the console. Clip the safety key on clothes when using the treadmill to prevent accidents. Put the safety key back when you want to continue using the treadmill. Console Instructions Button instructions Start up Normally starts after 3 seconds of countdown.
  • Page 10 4. Volume ± When connect with mobile phone, press “+”to turn the volume up and press “-” to turn the volume down. 5. Speed ± Use these keys to adjust the speed of the treadmill, press “+” to increase the speed and “-” to decrease the speed.
  • Page 11 Translation of Error Codes Error code Description Solution Communication Abnormal: Possible Cause: the communication between the lower controller when the power is on, the and console is blocked, check each joints between the controller connection between lower and console, make sure that each core is fully plugged in. Check the connection line, replace it if it’s damaged.

  • Page 12: Routine Maintenance

    5. Routine Maintenance Warning: Before cleaning or maintaining products, please be sure the power plug of the treadmill is pulled out. Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill. Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both sides of the exposed portion, which will reduce the accumulation of impurities.
  • Page 13 Picture A Picture B Multi-wedge Belt Tension Adjusting When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the abrasion, then you have to do some appropriate adjustment to facilitate the safe use. Judgment: the feeling of running with the occasional pause phenomenon, which indicating that the treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.
  • Page 14 Thank you for buying FITKIT: ❖ Write to us: support@fitplus.biz ❖ Web site: www.onefitplus.com ❖ Contact Number: 1800-572-6303/1800-572-6402 ❖ Customer Support: Monday to Saturday- From 09:00 AM- 06:00 PM ❖ WhatsApp No: +91-6260741911/+91-6260741910...
