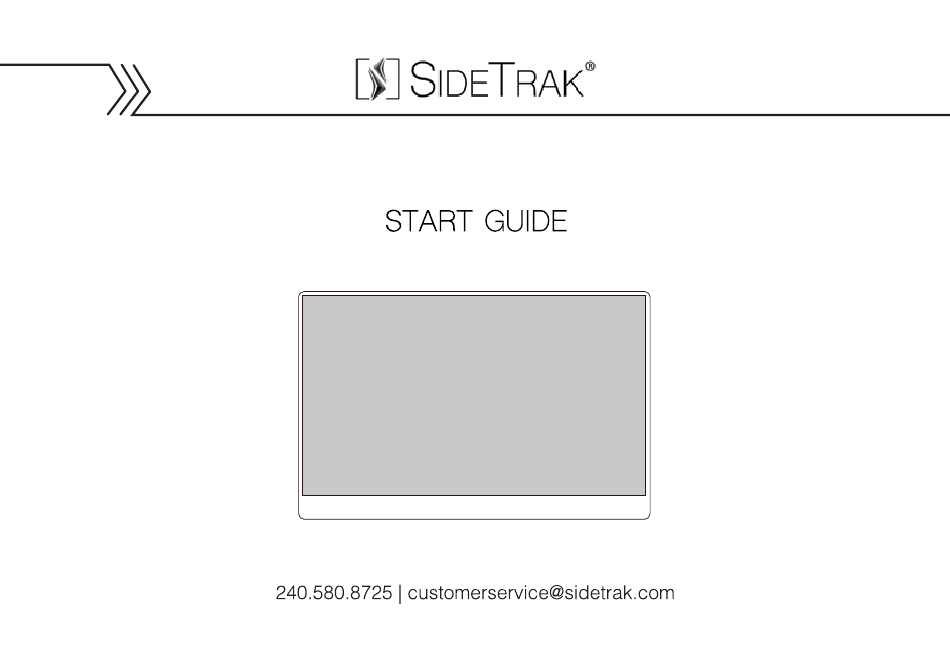

- Page 1 SIDETRAK SOLO FREESTANDING 4K MONITORS...
- Page 4 SideTrak Solo 4K Portable Monitor 3.5mm Headphones External audio connector, Input headset Type-C USB Input USB-C type power only LED Indicator LED Light Indicator USB-C type power and Type-C USB Input graphics connector HDMI Input HDMI type power connector 15.6 inches...
- Page 5 Protective Case/ Kickstand HDMI Cable...
- Page 6 Watch the installation video here Check the USB-C port on your laptop for the symbols shown in the table below. If you have one of the green checked symbols, then your USB-C port will provide data and enough power to the monitor. Note, MacBook ports are compatible even if there are no symbols next to it. If the monitor won’t turn on, connect the USB-A to USB-C cable along with the HDMI cable.
- Page 7 If you are connecting to other devices, be sure to connect to an external power supply first by using the secondary USB-C port, then connect the HDMI cable to ensure a smooth transition of signal. 3. Using Your Kickstand Flip the protective cover over to the back of the monitor and bend the lower half of the protective cover to a 45 degree angle in order to use the protective cover as your monitor’s kickstand.
- Page 8 To bring up the main menu press the power button once. When inside the menu use the “+” and “-” buttons to highlight the desired option, and press the power button once to select the highlighted option. Once the option is highlighted, use “+”...
-
Page 9: Menu Settings
MENU SETTINGS Brightness: Adjust from 0-10 Color temp: Change between Volume: Adjust between 0-10 Language: Change language Change input between auto, Contrast: Adjust between 1-100 9300K, 6500K, and SRGB Mute: Turn sound on or off Display rotate: Change screen type-c, and HDMI Eco: Choose between Standard, Hue &... - Page 10 Q: Is my laptop compatible with SideTrak Solo 4K? A: Check the ports on your laptop. If you have a USB-C port with any of the symbols shown on page 3, then your laptop is compatible and you will only need to use one cord. If you don’t have a compatible USB-C port, then you will need to plug in the HDMI cord and the USB-C to USB-A cord.
- Page 11 SideTrak Solo 4K Portable Monitor STFR4K15BL / STFR4KTC15BL Typical 6W, Max 13W 282.42 355 x 224 x 9.6mm 320-340cd/m2 760g 1000:1 104.136 square inch 0.09(H) x 0.09(V) 3840 x 2160 25ms H 178º/ V 178º G+FF glass / Hard Coating 16.7M...
