EN Instructions for use / assembly instructions
DE Gebrauchsanleitung / Montageanleitung
2
3
MySport L
13831000

Advertisement

loading
Need help?

Need help?

Do you have a question about the MySport L 13831000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hans Grohe MySport L 13831000

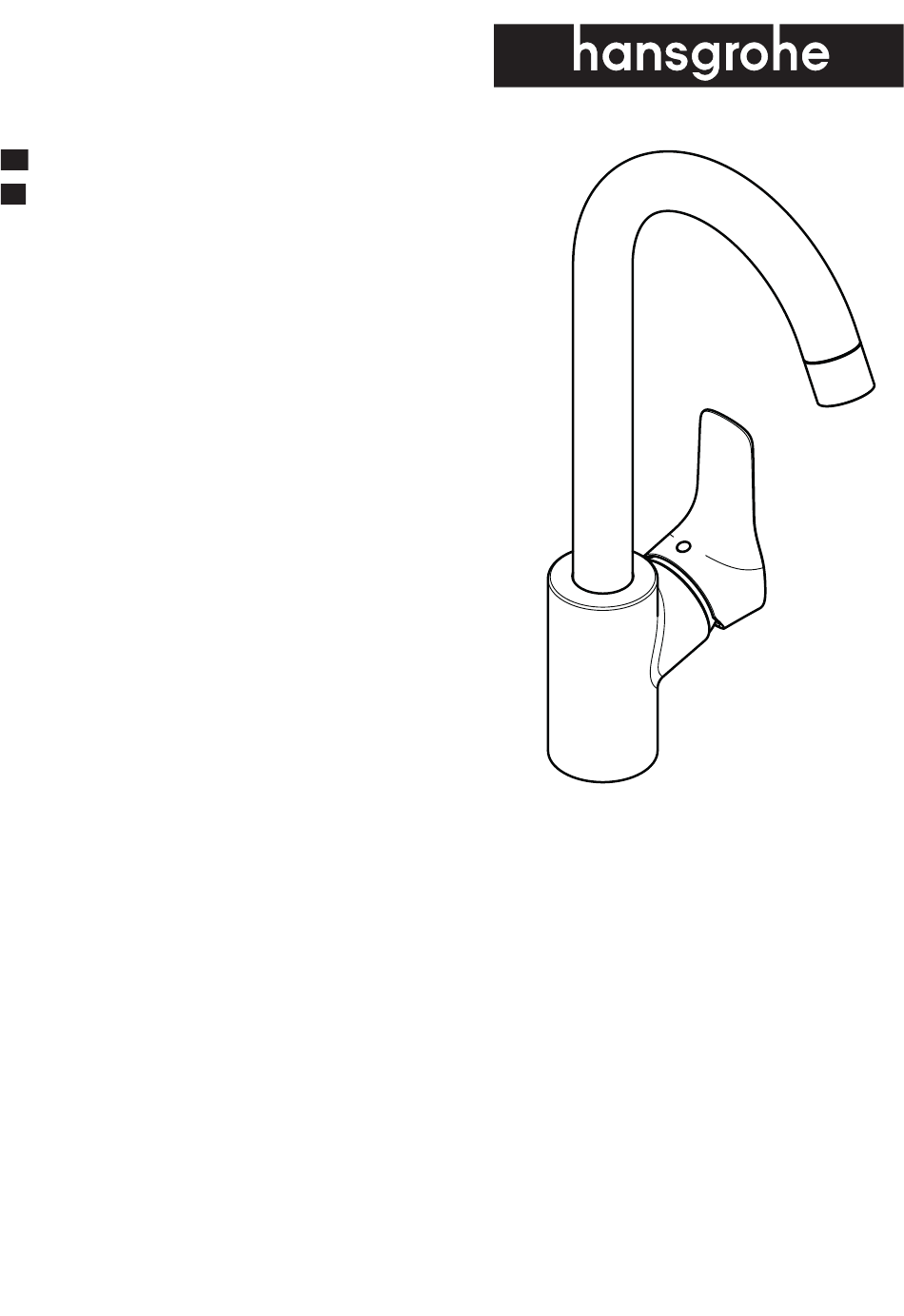

  • Page 1 EN Instructions for use / assembly instructions DE Gebrauchsanleitung / Montageanleitung MySport L 13831000...
  • Page 2: Safety Notes

    English Flow diagram (see page 9) Safety Notes Spare parts (see page 10) Gloves should be worn during installation to prevent crushing and cutting injuries. Cleaning (see page 8) The hot and cold supplies must be of equal Operation (see page 8) pressures. Installation Instructions Hansgrohe recommends not to use as drinking water the first half liter of water drawn in the morning or after • Prior to installation, inspect the product for transport a prolonged period of non-use. damages. After it has been installed, no transport or surface damage will be honoured. • The pipes and the fixture must be installed, flushed and tested as per the applicable standards. • The plumbing codes applicable in the respective countries must be observed. Technical Data Operating pressure: max. 1 MPa Recommended operating pressure: 0,1 - 0,5 MPa Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI) Hot water temperature: max. 70°C Recommended hot water temp.: 65°C Thermal disinfection:...
  • Page 3: Montage

    Deutsch Justierung (siehe Seite 7) Sicherheitshinweise Einstellen der Warmwasserbegrenzung. In Verbindung Bei der Montage müssen zur Vermeidung von mit Durchlauferhitzern ist eine Warmwassersperre nicht Quetsch- und Schnittverletzungen Handschuhe zu empfehlen. getragen werden. Maße (siehe Seite 9) Große Druckunterschiede zwischen den Kalt- und Warmwasseranschlüssen müssen ausgeglichen Durchflussdiagramm (siehe Seite 9) werden. Serviceteile (siehe Seite 10) Montagehinweise • Vor der Montage muss das Produkt auf Transport- Reinigung (siehe Seite 8) schäden untersucht werden. Nach dem Einbau Bedienung (siehe Seite 8) werden keine Transport- oder Oberflächenschäden anerkannt. Hansgrohe empfiehlt, morgens oder nach längeren • Die Leitungen und die Armatur müssen nach den Stagnationszeiten den ersten halben Liter nicht als gültigen Normen montiert, gespült und geprüft Trinkwasser zu verwenden. werden. • Die in den Ländern jeweils gültigen Installationsricht- linien sind einzuhalten. Technische Daten Betriebsdruck: max. 1 MPa Empfohlener Betriebsdruck: 0,1 - 0,5 MPa Prüfdruck:...
  • Page 4 (3 Nm) SW 10 mm SW 24 mm (4 Nm)
  • Page 5 (50 Ncm)
  • Page 6 > 2 min...
  • Page 7 60 °C 10 °C 0,3 MPa 36°C 38°C 50°C 60°C 43°C 55°C 17 x...
  • Page 8 www.hansgrohe.com/ cleaning-recommendation open / öffnen close / schließen www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation hot / warm cold / kalt www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation cleaning-recommendation www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation cleaning-recommendation cleaning-recommendation Cleaning recommendation / Warranty / Contact Reinigungsempfehlung / Garantie / Kontakt...
  • Page 9 MySport L 13831000 Ø 25 Ø 46 Ø 34 G 1/2 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
  • Page 10 MySport L 13831000 92718000 92223000 92368000 96338000 (M22x1 - 15 l / min) 98193000 98486000 (32x2) 95140000 (M4x20) 98422000 98189000 (7x1,5) (14x2,5) 95498000 92646000 97209000 95008000 (M37x1,5) SW 30 mm 95730000 98749000 96556000 (600 mm) 97523000 97548000 95049000...
  • Page 12 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
