Bea-fon CLASSIC C245 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User
Guide
Dear User,
Thank you for choosing Bea-fon C245.
This user guide will provide you with general
information and operating instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLASSIC C245 and is the answer not in the manual?

Questions and answers

Related Manuals for Bea-fon CLASSIC C245

Summary of Contents for Bea-fon CLASSIC C245

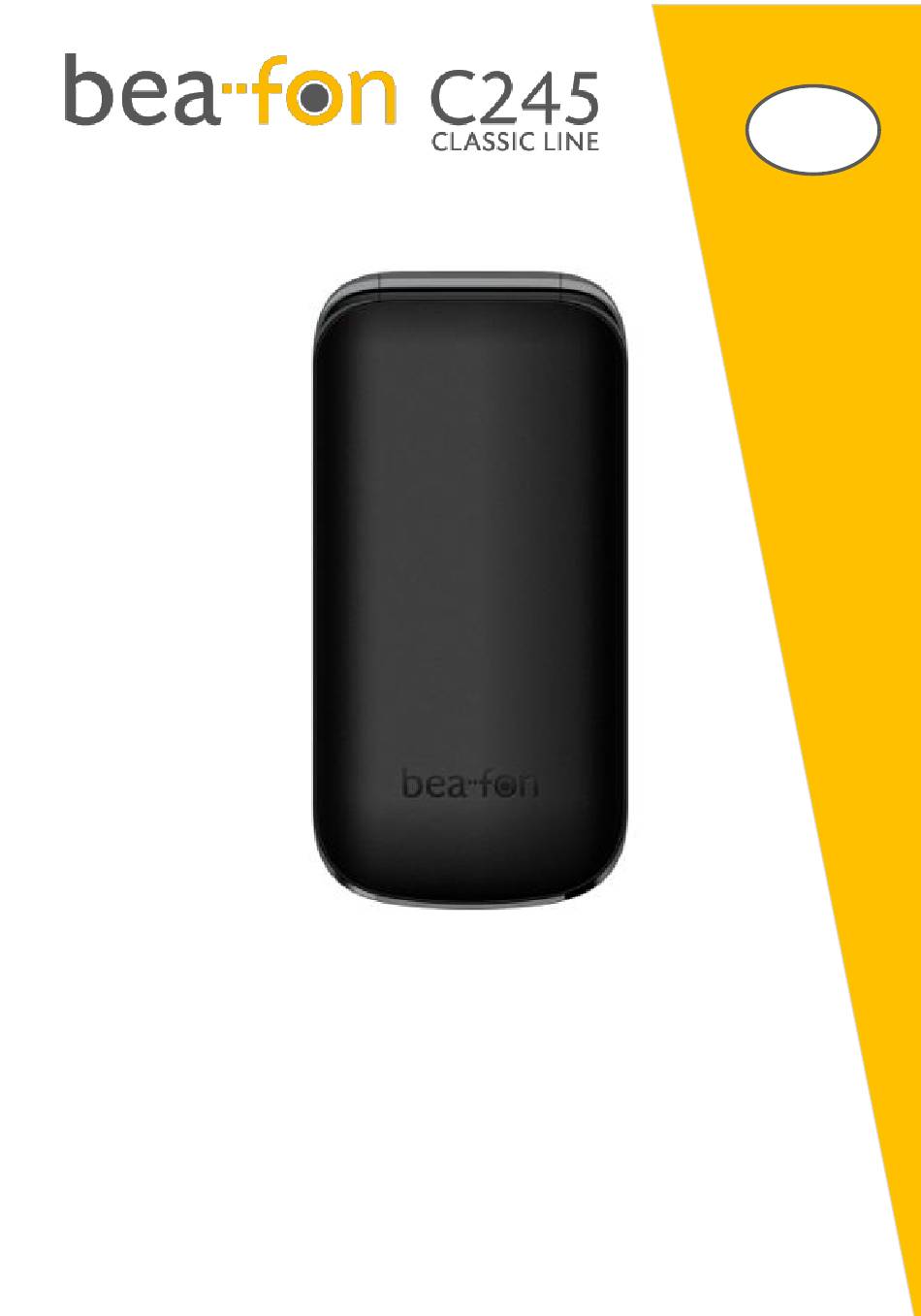

  • Page 1 User Guide Dear User, Thank you for choosing Bea-fon C245. This user guide will provide you with general information and operating instructions.
  • Page 2 My phone Left menu button From the home screen, go into the main menu with this key Green dial key Calling or receiving a call. On the home screen, brings up the call list * Key...
  • Page 3 Press this key on the home screen to enter the following symbols: */+ In write mode: Insert symbol Navigation key (4-way) On the home screen, you can get to the most frequently used functions using the navigation keys. In the main menu, use these keys for navigation.

  • Page 4: Symbol Description

    Symbol description Symbol Description Reception strength: The vertical bars show the network connection strength (SIM1 and SIM2). New messages This symbol is displayed when you receive a new message. SIM card has an unread message. This symbol blinks when the inbox folder is full.

  • Page 5: Inserting The Sim Card

    Call forwarding This symbol is displayed when all calls are being forwarded. Alarm This symbol is displayed when you turn on the alarm. Roaming This symbol is displayed when your SIM card is in a foreign network (also for virtual network operators) Note: Additional costs may apply when using your phone abroad.

  • Page 6: Inserting The Microsd Card

    The phone must be switched off and disconnected from the charger. Remove the battery cover on the back of your phone by inserting your fingernail in the notch on the bottom left side of the phone and prying the battery cover open.

  • Page 7: Turning The Phone On/Off

    underside of the phone. Then plug the charger into a socket. When the phone is charged while turned on, the battery indicator gradually goes up. The battery is fully charged when the battery indicator no longer goes up. Disconnect the charger from the network and from the device when it is no longer needed! Note: During charging, the phone and charger get warm.

  • Page 8: Background Image

    Background image Select a screen background image. In the main menu, select Settings - Phone settings - Display - Background image. Navigating the main menu On the home screen, press the left “Menu” key or the OK key to access the main menu. To return to the previous menu, press the right menu key.

  • Page 9: Making A Call Using The Phonebook

    call. Press Delete (right menu key) to delete the figure on the left of the cursor. Making a call using the phonebook If contacts are stored in the phonebook, you can make a call using the phonebook. On the home screen, press the right menu key to go to the phonebook.

  • Page 10: Calling From The Call List

    Calling from the call list The call list shows the received, dialled, missed and declined calls. On the home screen, press the green key to go to the call list. Use the navigation key (left and right) to select the call group. Select a contact or number using the up and down navigation keys.

  • Page 11: Speed Dial

    Speed dial Assign a phone number to a number key (2 to 9). In the main menu, select Phonebook and press Press Options. Select Phonebook settings and press OK. Select Speed dial and press OK. In the dialling list, assign a contact from the phone directory.
  • Page 12 Connections - Bluetooth. With Bluetooth, you can connect your phone with a compatible Bluetooth device. Searching for Bluetooth audio device To start a search for another Bluetooth device, proceed as follows: Select Found devices - Add new device and press OK. Select the desired device from the list of found devices and press Pair.

  • Page 13: Voice Mailbox

    settings. Select the SIM card to be activated or deactivated. (SIM1 or SIM2) Note: The Menu selection depends on the number of SIM cards. Voice mailbox Voice mail is a network function. When a voice mail is received, the symbol of a new message is displayed on your phone screen.
  • Page 14 Select Create new and press OK. Select where to save: SIM card(s) or Phone. SIM memory: Only Name and Number can be saved. Phone memory: By default, Name, Number, Image, Ringtone, and Group can be saved. To save the contact, press the left menu key Options - Save.
  • Page 15 Note: If two SIM cards are used, please choose the SIM card that you want to use. Input method Press the pound key (#) to toggle between lower and upper case: EN, En, en, 123, pay attention to the Symbol above on the display. Inserting a symbol Press the star key (*), use the navigation key to select the desired symbol and confirm with OK...

  • Page 16: File Manager

    Photos In the main menu, select Photos to display the saved photos (in .jpg format). You can send and receive photos via Bluetooth. Calendar In the main menu, select Calendar Press the navigation keys to switch between the days. You can save Events in the calendar. File manager In the main menu, select File manager.
  • Page 17 In the main menu, select Extras and press OK. Select Radio and press OK. You can use the phone as a radio. For better reception, please use a headset (not included). World clock In the main menu, select Extras and press OK. Select World clock and press OK.
  • Page 18 Connect your phone to the computer using a micro USB cable. (not included) phone menu that opens, select “Removable media” and confirm with “OK”. The computer will recognise your phone as removable media. Now you can manage the data using Windows Explorer.

  • Page 19: Menu Structure

    Menu structure Phonebook 7. Extras Add new contact 1. Alarm Messages 2. Calculator Write message 3. Radio Inbox 4. World clock Drafts 5. LED light Outbox 8. File manager Sent 9. Settings Delete 1. Call settings SMS settings 2. User profiles (tones) Call list 3.

  • Page 20: Technical Data

    Technical data: Quad-band network: GSM 850/900/1800/1900 MHz Battery: Li-ion 3.7 V - 800 mAh Dimensions: 103 x 51 x 16.7 mm Standby time: Up to 160 hours* Talk time: Up to 3-4 hours* 5 V – 550 mA, 2.7 W Charger: * Battery life depends on the SIM card, network, applied settings, usage, and the environment.
  • Page 21 SIM card error: Dirt on the contact areas of the SIM card? Clean the contact areas of the SIM card. SIM card is not inserted correctly; insert the SIM card correctly. SIM card does not function or is damaged? Get your SIM card checked by your network operator.
  • Page 22 Have you activated call barring? If so, please disable call barring. Display is black: Check whether the phone is turned on; charge the battery for 24 hours and remove it for a few seconds; then restart the phone. PIN is locked: Check whether the PIN code was entered correctly.
  • Page 23 European Union. Do not dispose of these products with unsorted household waste. Disclaimer:  Bea-fon Mobile GmbH shall not bear any liability for any relevant, indirect, special, incidental, or inevitable injuries caused by using this product, including injuries that can be predictable or not.
  • Page 24 BEAFON MOBILE GmbH 4722 Peuerbach Enzing 4 Austria v.1.0...
