Page 1: Assun Motor
Assun Motor Product Manual For DC Servo Motor AM-PI2466AN Series edition. October, 2019. All Rights Reserved Assun Motor Inc. Assun Motor Pte Ltd Shenzhen Zhengyuan Motor Co., Ltd... -
Page 2: Table Of Contents
Contents Assun Motor ................................1 Product Manual..............................1 1. About the Manual ............................3 Validity of This Document ......................3 Using This Document ........................3 Definition of Terms ........................4 Definition of Symbols ........................4 2. Product Safety ..............................5 2.1 Intended Product Usage ........................5 2.2 Product Usage Safety ........................5 2.3 Product Disposal/Recycling ......................7... -
Page 3: About The Manual
1. About the Manual 1.1 Validity of This Document The product manual document here is used for AM-PI2466AN Series product by Assun Motor which is DC brushless motor with integrated position servo controller. The manual has made detailed description to the safety and functional usage of this motor product series. It helps the professional user to install and connect the motor, and also guide the user in relevant control function usage. -
Page 4: Definition Of Terms
1.3 Definition of Terms Term Meaning Pulse Width Modulation CW/CCW Clockwise/Counter Clockwise Feedback Pulse Pulses give out per revolution VIL/VIH Voltage Input Low / Voltage Input High Control Function Connect Pin Cable Power Connection Cable Ground / Negative Pole Direct Current Voltage Revolution per Minute 1.4 Definition of Symbols Caution! Hazard to persons. -
Page 5: Product Safety
2. Product Safety 2.1 Intended Product Usage The Assun Motor AM-PI2466AN Series integrated DC servo motor product, which we are describing here in this manual, are used for rotating power output under rated DC supply and suitable pulse control. Position control function is integrated so it could be used in multiple servo drive systems such as industrial automation and actuators. - Page 6 Motor surface temperature could be high after long term operation. Please exercise caution when touching or handling the product. Power supply must be filtered DC. The input voltage shall be within the rated value for normal operation. Voltage cannot be lower than 10V for lower voltage operation. Voltage cannot exceed the rated value for long term operation and shall be always under 28V.
-
Page 7: Product Disposal/Recycling
Please use the motor according to the parameter limits in the appendix, otherwise it may cause the motor to be exceed current limits or overheat, which could lead to irreversible damage to the motor. The motor is not suitable for operating in high humid and dusty environments. High humidity or excessive dust concentration could lower the motor performance and shorten the motor lifetime. -
Page 8: Product Series Information

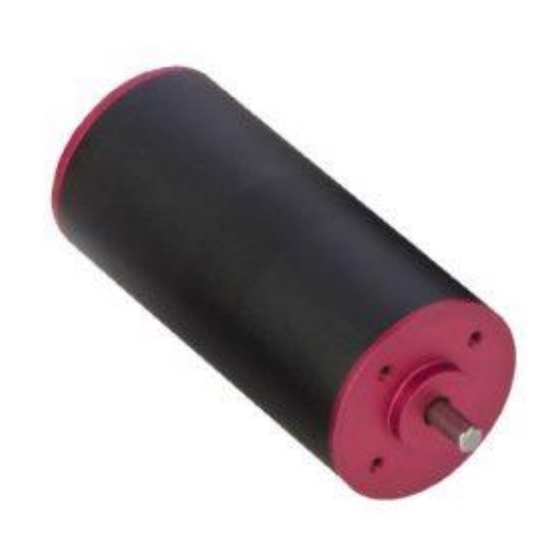

3. Product Series Information 3.1 Product Series Structure Introduction AM-PI2466AN Series products is a series of precision DC servo motors with integrated electronics and inner rotating rotor. Case diameter is φ24.5mm, case length is 65.5mm, rated power around 21W, with a net weight of approximately 142g. For detailed series information and parameters please refer to Appendix 1. -
Page 9: Product Model Information
This series of product are manufactured using materials using multi-types of metal, alloy material and chemical products. Specific material usage as shown in Table 1. Table 1. Product Material Matrix Rotor Rotor Cable Components End Cover Winding Bearing Housing Magnet Shaft Core Stainless... -
Page 10: Product Function And Usage
4. Product Function and Usage The Product Series has four control cables and two power supply cables. Two power cables are red cable (connect to power supply positive) and blue cable (connect to power supply negative). Four control cables include ground cable (black), rotating direction control (green), feedback pulse (red) and pulse input cable (white). -
Page 11: Pulse Input
4.2 Pulse input The red cable is for pulse input from PLC system, and Max frequency at 60KHz. The motor will rotate one revolution for every 256 input pulses. The pulses low voltage shall be lower than 0.8V and high voltage shall be higher than 3.3V. For one pulse given, motor will rotate 1/256 revolution, which is 1.4°, tolerance at ±0.3°. -
Page 12: Maintenance
5. Maintenance The product series is maintenance free, please do not disassemble in person. There are no repairable components inside the motor. Regarding any quality issue or maintenance needs, please contact our regional service person for relevant technical support. Ignoring this warning will void the warranty. 12 / 13... -
Page 13: Appendix
Appendix Appendix 1. Series Product Parameters Appendix 2. Specified Product Drawing and Parameters Contact Singapore Tel: +65 6532-5243 Email: info@assunmotor.com Add: #06-05, 1092 Lower Delta Road. Singapore 169203. China Tel: +86 755-8368-8818 Email: info@assunmotor.com Add: 7 Floor, Blk 6, Yongping Industrial Area, 9 Tongfu Road. Shenzhen, P.R.China. Tel: +1 760-451-2723 Email: beauche@roadrunner.com Add: Suit F208, 6370 Lusk Boulevard San Diego, CA 92121-2760 USA...
