Assun Motor Product Manual For Graphite Brush DC Motor AM-CL2235GAE Series edition. 22 Aug 2023 All Rights Reserved Assun Motor Pte Ltd Shenzhen Zhengyuan Motor Co., Ltd... -
Page 2: Table Of Contents
Contents Assun Motor ................................1 Product Manual ..............................1 About the Manual............................3 Validity of This Document ......................3 Using This Document ........................3 Definition of Terms ........................3 Definition of Symbols ........................4 Product Safety .............................. 5 Intended Product Usage ......................5 Product Usage Safety ........................ -
Page 3: About The Manual
1. About the Manual 1.1 Validity of This Document The manual is for the AM-CL2235GAE series product manufactured by Assun Motor which is a direct current Graphite brush motor. The manual contains detailed descriptions of the safety and functional usage of this motor product series. It helps the user install and connect the motor and also guides the user in relevant control function usage. -
Page 4: Definition Of Symbols
VIL/VIH Voltage Input Low / Voltage Input High Control Function Connect Pin Cable Power Connection Cable Ground / Negative Pole Direct Current Voltage Revolution per Minute 1.4 Definition of Symbols Caution! Hazard to persons. Disregarding may lead to injury. Warning! Improper operation will damage the product Caution! Hazardous due to hot surface. -
Page 5: Product Safety
2. Product Safety 2.1 Intended Product Usage The Assun Motor AM-CL2235GAE series DC brushed coreless motor product, which we are describing here in this manual, is used for rotating under a DC supply. It is suitable for different types of DC driving systems, such as automation system actuators and many other precision driving systems. -
Page 6: Product Usage Safety
2.2 Product Usage Safety The product is a high-speed rotating device. Please make sure the product is properly mounted before operation to prevent potential hazards to people or equipment. Please refer to Chapter 4.1 of this manual for further installation guidance. The motor surface temperature could be high after long-term operation. -
Page 7: Product Disposal/Recycling
Please use the motor according to the parameter limits in the spec, otherwise, it may cause the motor to exceed current limits or overheat, which could lead to irreversible damage to the motor. The motor is not suitable for operating in highly humid and dusty environments. High humidity or excessive dust concentration could lower the motor's performance and shorten the motor’s lifespan. -
Page 8: Product Series Information

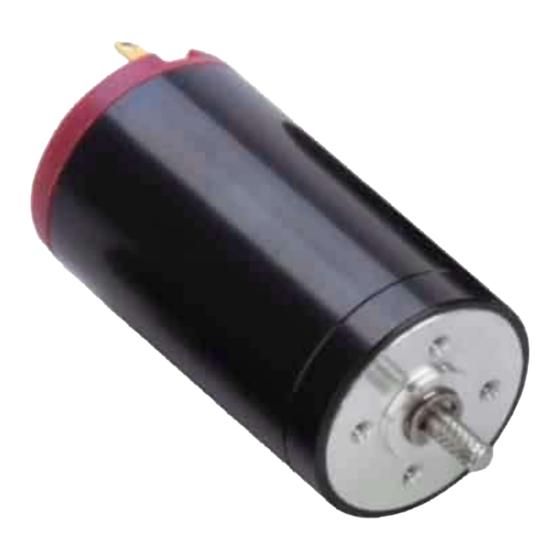

3. Product Series Information 3.1 Product Series Structure Introduction AM-CL2235GAE series products are a series of precision DC brushed motors with coreless and self-supporting rotors. The casing diameter is φ22mm, length is 35mm, and rated power is 13.8W -14.9W, with a net weight of approximately 53g. For detailed series information and parameters please refer to the “Product sheet”... -
Page 9: Product Model Information
Table 1. Product Material Matrix Part End Cover Winding Bearing Magnet Shaft Housing Stainless Stainless Stainless Material Copper NdFeB Aluminium Alloy Steel Steel Steel Part Brush Commutator Adhesive Grease Cushion Others Precious Epoxy Fluorine Stainless Other Metal and Material Copper Metal Resin Grease... -
Page 10: Product Function And Usage
4. Product Function and Usage The series of products have two power-connecting metal plates at the rear end, connecting to the DC power supply positive and negative. Customers could choose to have a rear shaft or not to have a rear shaft. Rear shaft is needed when the motor is working with the encoder. When an encoder is not needed, the motor usually does not have a rear shaft. -
Page 11: Motor Functions
4.2 Motor Functions When the motor is connected to the controller with the PWM function, the motor speed can be controlled. The percentage of low input voltage is regarded as the duty cycle. The higher the duty cycle, the higher the motor's rotating speed will be. When the duty cycle reaches 100%, the motor reaches its top speed. -
Page 12: Maintenance
5. Maintenance The product series is maintenance free, please do not disassemble on your own. There are no repairable components inside the motor. Regarding any quality issue or maintenance needs, please contact our regional service person for relevant technical support. Ignoring this warning will void the warranty. -
Page 13: Contact
Contact Singapore Tel: +65 6532-5243 Email: info@assunmotor.com Add: 1092 Lower Delta Road, #06-05, Singapore 169203. China Tel: +86 755-8368-8818 Email: info_cn@assunmotor.com Add: 7 Floor, Blk 6, Yongping Industrial Area, 9 Tongfu Road. Shenzhen, P.R.China. 13 / 13...
