Installation Manual
Water Softener MS Series (MS-30U/60U)
Check your local building and sanitation codes for installation compliance. Since Miura MS
series water softener is designed for steam boilers make-up usage, it cannot be allowed
drinking and residential usage.
Electrical, Building code, Occupational Health & Safety Act, and Regulations.
1. Installation Location
1) Select a location near the drain.
2) When installing, allow enough clearance for maintanence
and operational space.
2. Plumbing
1) Refer to Figure 2. Attach the bypass valve to the
main valve. The suggested bypass valve and the
valve port diameters are the following:
MS - 30U,60U: 1 inch
2) For the inlet side, install the following: inlet valve,
strainer and pressure gauge. For ease of cleaning
the strainer, place it after the inlet valve.
3) If the raw water pressure is lower than the
required pressure range, use booster pump. If
higher than the pressure range, use pressure
reducing valve.
MS - 30U: 22 - 71 psi
MS - 60U: 26 - 71 psi
4) For the outlet side, install the following: outlet
valve and water sampling port. If there is a
possibility of hot water (above 104°F) backflow,
such as during condensate recovery, install check
valve also.
MIURA MANUFACTURING AMERICA Co., LTD.
MIURA NORTH AMERICA INC.
Installation Must Meet All State and Local Plumbing,
Drainage hose
(Included)
Strainer
(Included)
Pressure gauge
(Included)
Bushing
(Included)
Tee
Inlet valve
Raw water
piping
Warning
To prevent injury, the resin tank must
be installed on a foundation with
sufficient level surface so the tank does
not tip over.
Treated water
piping
Valve
Tee
Check valve
Overflow hose
(Included)

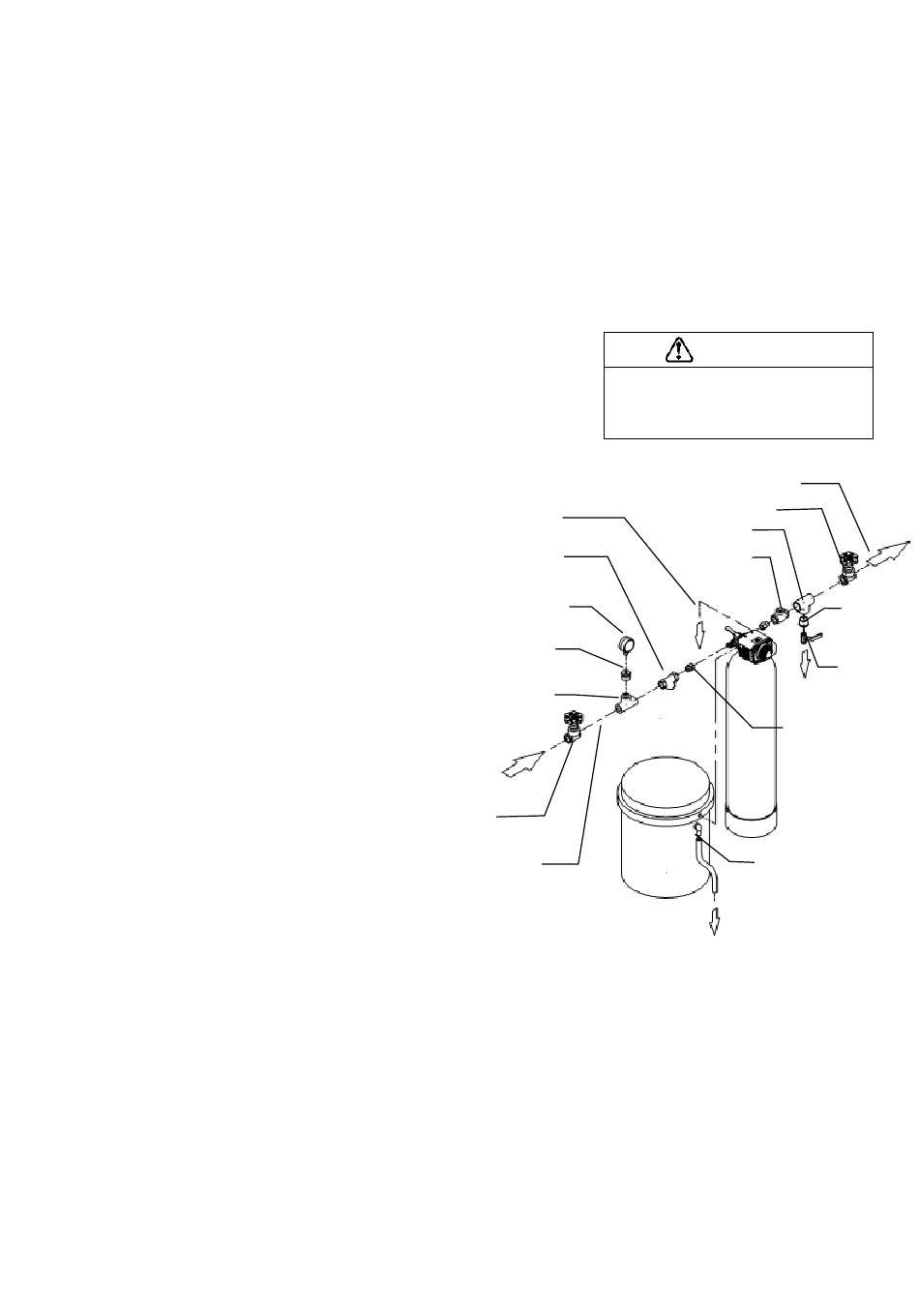

Figure 1
Bushing
(Included)
Valve
(Included)
NPT-PT Adapter
(Included)
