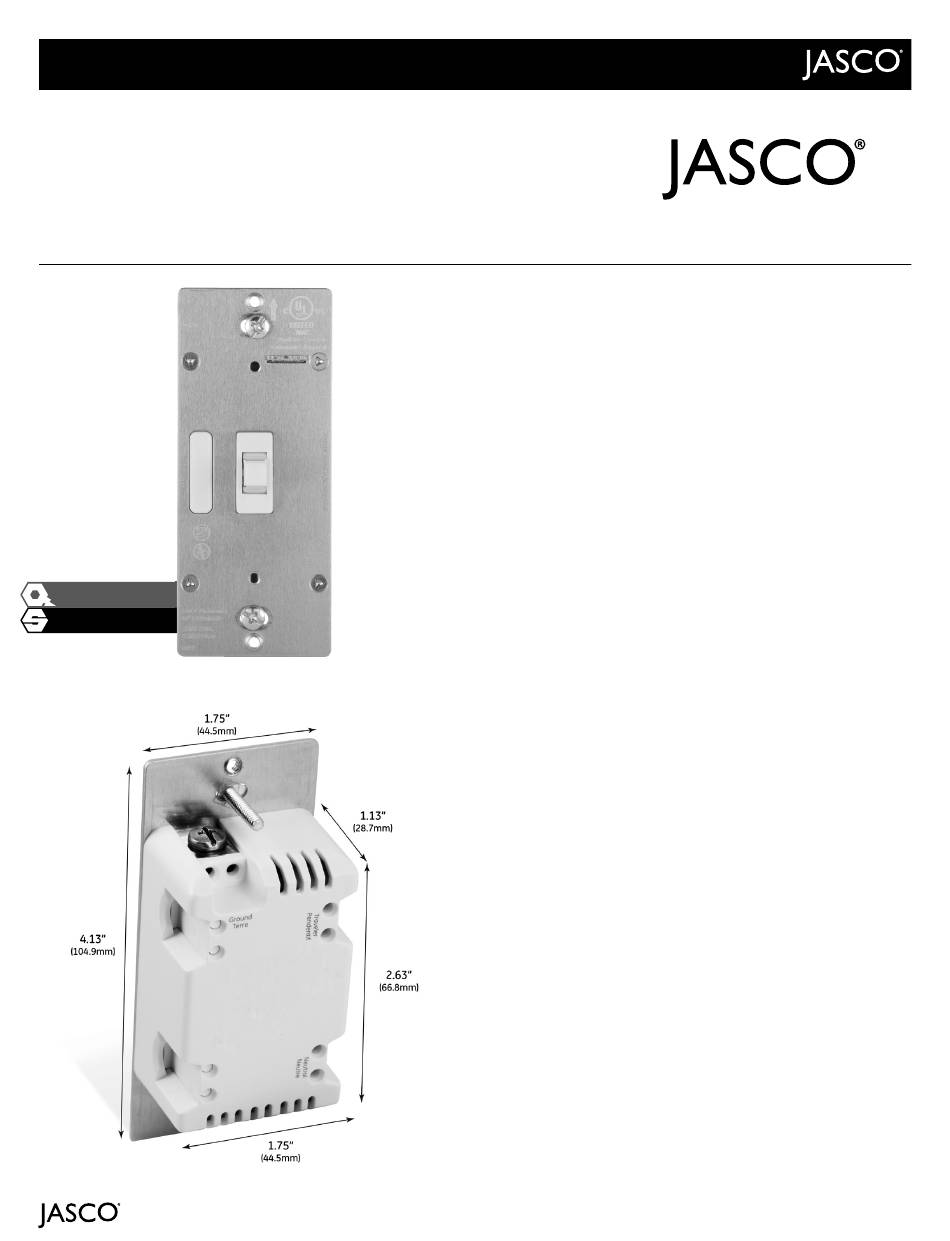

46561 PRODUCT SPECIFICATIONS

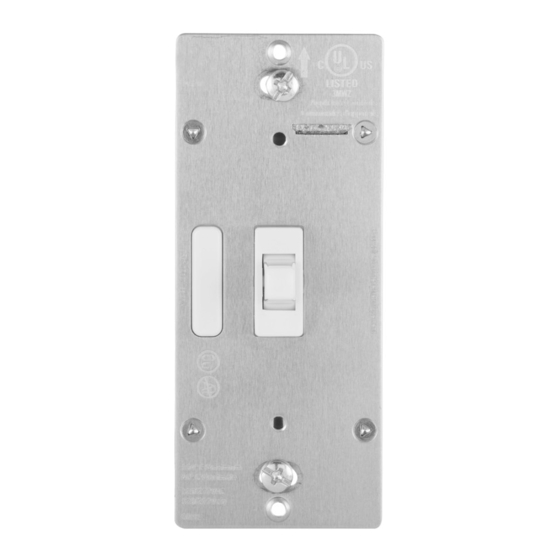

Jasco In-wall
Toggle Add-On Switch
QUICKFIT
™
SIMPLEWIRE
™
www.byjasco.com
Specifications
Power: 120-277VAC, 60Hz
Operating Temperature: 32-104° F (0-40° C)
Switch must be mounted indoors
Design Features
· 46200 For use in 3, 4, 5, or 6-way wiring
configurations with:
Jasco Zigbee 3.0 models: 43084 and 43090
Jasco 500 Series Z-Wave models: 46202
and 46204
Z-Wave Commercial Grade models: 43106 and
43107
Zigbee 3.0 Commercial Grade models: 43122,
43124 and 43090
· Requires wiring connections Neutral, Traveler
and Ground
· QuickFit™ – Improved components reduce the
housing depth by up to 20 percent compared to
previous models and eliminated the
need for heat tabs. QuickFit enhancements are
the ideal solution for older-style switch boxes,
multi-gang configurations or any other application
with limited space
· SimpleWire™ – Dual ground ports, which are
offset to avoid switch box mounting screws,
support daisy-chaining in multi-switch setups
· Uses a standard toggle wall plate
(wall plate not included)
· Toggle style switch to match existing switches
· Maximum number of Add-On Switches
connected to primary switch: 4
· Maximum traveler wire distance: 300ft.,
interconnected between 4 Add-On switches
· No more than 75ft between each switch
· Maximum traveler wire distance between
primary and (1) Add-On switch: 200ft
· Not for direct control of load
(Not a standalone switch)
