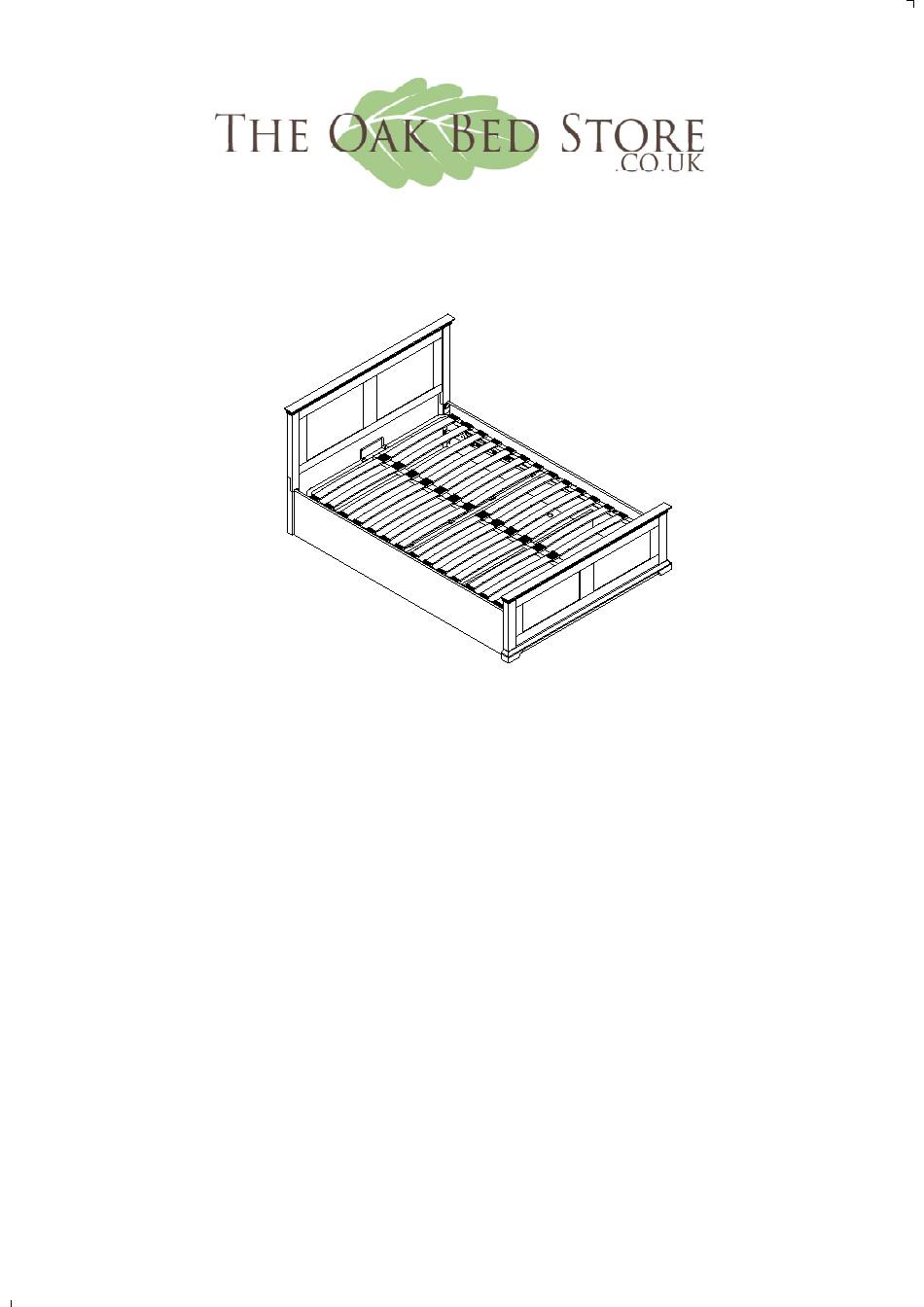

CHILGROVE 4FT6 BED ASSEMBLY INSTRUCTIONS
We hope you are delighted with your purchase, however if you have any further queries or concerns,
please don't hesitate to contact us by;
. Email at help@theoakbedstore.co.uk
. Telephone on 02393 552 550
. Live Chat via our website
Please read the instructions carefully before assembling or use to ensure a safe
and satisfactory operation of this product.
Please note:
1. This product is heavy, it should be assembled as near as possible to the point of use.
2. Please do not drag the bed frame, always lift and reposition with 2 people to avoid personal injury
as well as damage to the product.
3. Please do not discard any of the packaging until you have checked that you have all the parts and
the pack of fittings.
4. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
5. Periodically check all screws & fixings to ensure they are secure.
6. You will require a screwdriver (not provided).
7. Please do not jump on this bed frame.
8. The fittings pack contains small parts, which should be kept away from children.
In the unlikely event that this product has missing or damaged parts, please call 02393 552 550 to obtain
replacements.
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHILGROVE and is the answer not in the manual?

Questions and answers

Related Manuals for The Oak Bed Store CHILGROVE

Summary of Contents for The Oak Bed Store CHILGROVE

  • Page 1 CHILGROVE 4FT6 BED ASSEMBLY INSTRUCTIONS We hope you are delighted with your purchase, however if you have any further queries or concerns, please don't hesitate to contact us by; . Email at help@theoakbedstore.co.uk . Telephone on 02393 552 550 . Live Chat via our website Please read the instructions carefully before assembling or use to ensure a safe and satisfactory operation of this product.

  • Page 2: Part List

    PART LIST DESCRIPTION PART Headboard Frame Left Wooden Post Right Wooden Post Footboard Side Rail - Left Side Rail - Right Back Storage Panel Small Base Panel Large Base Panels Center Storage Panels Left Hydraulic Base Support Right Hydraulic Base Support Hydraulic Pumps Back Bed Base (1 x Hole Mounting)
  • Page 3 HARDWARE LIST ( Found in box 4 ) PART DESCRIPTION Cam Lock + Metal Screw Dowel M8 x 30mm Wood Dowels ML-CB (Metal Corner Support) M8 x 35mm JCBB Bolt M8 x 16mm JCBB Bolt M8 x 75mm JCBB Bolt M8 Flat Washer Base Nut Base Handle...

  • Page 4: Back View

    Step 1: Attach the Back Storage Panel (Part 7) to the Left and Right Wooden Posts (Parts 2 & 3) and tighten fully using hardware (A & B). - Insert Wooden Dowels (B) and Cam Lock (A) into the Back Storage Panel (Please ensure the arrow on the Cam Lock is facing the Wooden Post).
  • Page 5 Step 3: Attach the Left and Right Side Rails (Parts 5 & 6) to the Centre Storage Panels (Parts 10) and tighten fully using Hardware (A & B). - Ensure the Left and Right Side Rails are positioned correctly. Insert Metal Screw Dowel (A) and tighten fully using a Screwdriver.
  • Page 6 Step 5: Attach the Metal Corner Support (C) to the Footboard (4) and Side Rails using hardware (E & O). - Place Metal Corner Support (C) to the Footboard (4) and Side Rails. Insert M8 x 16mm Bolt (E) and finger tighten.
  • Page 7 Step 7: Assemble Front Bed Base (15) to the Back Bed Base (14) and tighten fully using hardware (H,G,F). Attach the Base Handles (I) using hardware (J & N). - Ensure the holes for the slats are facing up on the Back Bed Base (14) and Front Bed Base (15). Lay the two halves together and place the Base Nut (H) and M8 Flat Washer (G) on opposite sides of the central bars and tighten using M8 x 75mm Bolt (F) using Allen Key (O).
  • Page 8 Step 9: Insert the Small Base Panel (8) and Large Base Panels (9). Step 10: Attach the assembled Metal Bed Base to the Hydraulic Base Supports (11 & 12) using hardware (K & O), but don’t fully tighten the bolts. Start from headboard,then the middle and finally the footboard. - Fix the assembled Metal Bed Base to the Hydraulic Base Supports (11 &...
  • Page 9 Step 11: Carefully lower the Metal Base using the Base Handle at the Footboard End. A moderate amount of force will be required, if necessary place your mattress on top of the Metal Base to assist with this. - Adjust the position of the Metal Bed Base ensuring that the distance between the Footboard and Base Handle is approximately 15mm.
  • Page 10 CAUTION : PLEASE USE HYDRAULIC PUMP SAFETY LOCK WHEN ACCESSING THE STORAGE AREA. HYDRAULIC PUMP SAFETY LOCK (LOCK ON) (LOCK OFF) PLEASE REMEMBER TO DISENGAGE THE SAFETY LOCK WHEN CLOSING THE OTTOMAN Page 10 of 10...
  • Page 11 ADDITIONAL HARDWARE LIST PART DESCRIPTION Cam Lock + Metal Screw Dowel M8 x 30mm Wood Dowels M8 x 35mm JCBB Bolt M8 x 16mm JCBB Bolt M8 x 75mm JCBB Bolt M8 Flat Washer Base Nut M6 x 40mm JCBC Bolt M8 x 45mm JCBB Bolt c/w Nut Bracket, Spring &...
