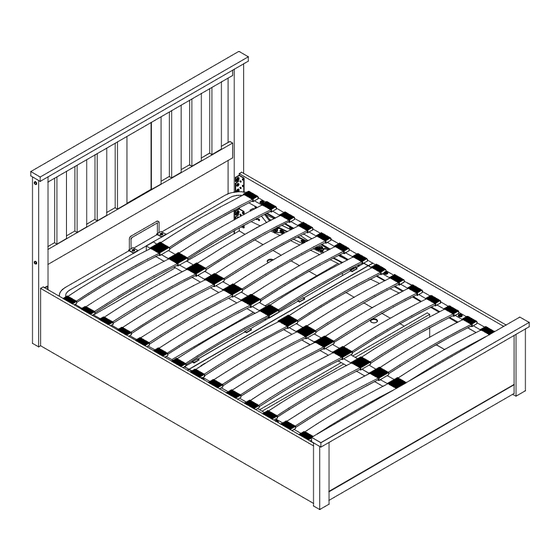

4FT 6 CHESTER BED ASSEMBLY INSTRUCTIONS
Thank you for purchasing from The Oak Bed Store. As an independent family run company, customers
such as yourself really make a big difference and we sincerely appreciate it.
We hope you are delighted with your purchase, however if you have any further queries or concerns,
please don't hesitate to contact us by;
. Email at help@theoakbedstore.co.uk
. Telephone on 02393 552 550
. Live Chat via our website
Please read the instructions carefully before assembling or use to ensure a safe
and satisfactory operation of this product.
Please note:
1. This product is heavy, it should be assembled as near as possible to the point of use.
2. Please do not drag the bed frame, always lift and reposition with 2 people to avoid personal injury
as well as damage to the product.
3. Please do not discard any of the packaging until you have checked that you have all the parts and
the pack of fittings.
4. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
5. Periodically check all screws & fixings to ensure they are secure.
6. You will require a screwdriver and small mallet (not provided).
7. Please do not jump on this bed frame.
8. The fittings pack contains small parts, which should be kept away from children.
In the unlikely event that this product has missing or damaged parts, please call 02393 552 550 to obtain
replacements.
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chester Ottoman and is the answer not in the manual?

Questions and answers

Summary of Contents for The Oak Bed Store Chester Ottoman

  • Page 1 4FT 6 CHESTER BED ASSEMBLY INSTRUCTIONS Thank you for purchasing from The Oak Bed Store. As an independent family run company, customers such as yourself really make a big difference and we sincerely appreciate it. We hope you are delighted with your purchase, however if you have any further queries or concerns, please don't hesitate to contact us by;...
  • Page 2: Part List

    PART LIST PART DESCRIPTION Headboard Frame Left Wooden Post Right Wooden Post Footboard Frame Side Rail - Left Side Rail - Right Back Storage Panel Small Base Panel Large Base Panel Center Storage Panel Left Hydraulic Base Support Right Hydraulic Base Support Hydraulic Pump Back Bed Base (1 x Hole Mounting)
  • Page 3 HARDWARE LIST (Found in box 3) PART DESCRIPTION Mini Fix M8 x 30mm Wood Dowel ML-CB (Metal Corner Support) M6 x 90mm JCBC Bolt + Barrel Nut M8 x 25mm JCBC Bolt M8 x 15mm JCBC Bolt M8 x 20mm JBCB Bolt M8 x 75mm JCBC Bolt M8 Flat Washer Base Nut...
  • Page 4 Step 1: Attach the headboard frame (1) and back storage panel (7) to the left wooden post (2) and right wooden post (3). Secure the headboard frame using hardware parts B, D and P, then secure the back storage panel with hardware parts A and B. Step 2: Join together the left side rail (5) and right side rail (6) with the centre storage panels (10) using hardware parts A and B.
  • Page 5 Step 3: Attach the headboard frame (1) and footboard (4) to the side rails using hardware part E. Step 4: Attach hardware part C using hardware part F. Page 5 of 10...
  • Page 6 Step 5: Attach the hydraulic pumps (13) to each hydraulic base support (11,12) as shown in diagram 5.1. Next, fix the left & right hydraulic support to the both side rails. Then, fix bolts G first as shown in diagram 5.2 and do not tighten yet.
  • Page 7 Step 7: Insert the slats (16) to hardware parts N and O then press into the base making sure they are secure. Step 8: Insert the small base panel (8) and large base panels (9). Step 9: Attach the bed base to the hydraulic frames using hardware part M. Fix the bolts starting from area 1 and finishing in area 3 –...
  • Page 8 Step 10: Adjust the bed base, makE sure that the distance to the footboard is approximately 15 mm to above. Tighten all bolts and screws now. HEADBOARD 15mm to above FOOTBOARD THE BED HAS BEEN FULLY ASSEMBLED Page 8 of 10...
  • Page 9: Important Note

    IMPORTANT NOTE WHEN THE BED IS BUILT AND THE MATTRESS FRAME IS AT 45 A DEGREE ANGLE PLEASE PLACE THE MATTRESS ON THE BED. PLEASE NOTE THAT THE WEIGHT OF THE MATTRESS IS REQUIRED TO HELP CLOSE THE BED. TO LOWER THE SLEEPING PLATFORM STAND AT THE FOOT END OF THE BED AND PUSH SHARPLY DOWNWARDS USING BOTH HANDS.
  • Page 10 CAUTION : PLEASE USE HYDRAULIC PUMP STOPPER FOR SAFETY PURPOSE. HYDRAULIC PUMP STOPPER (LOCK IN) (LOCK OUT) Page 10 of 10...
