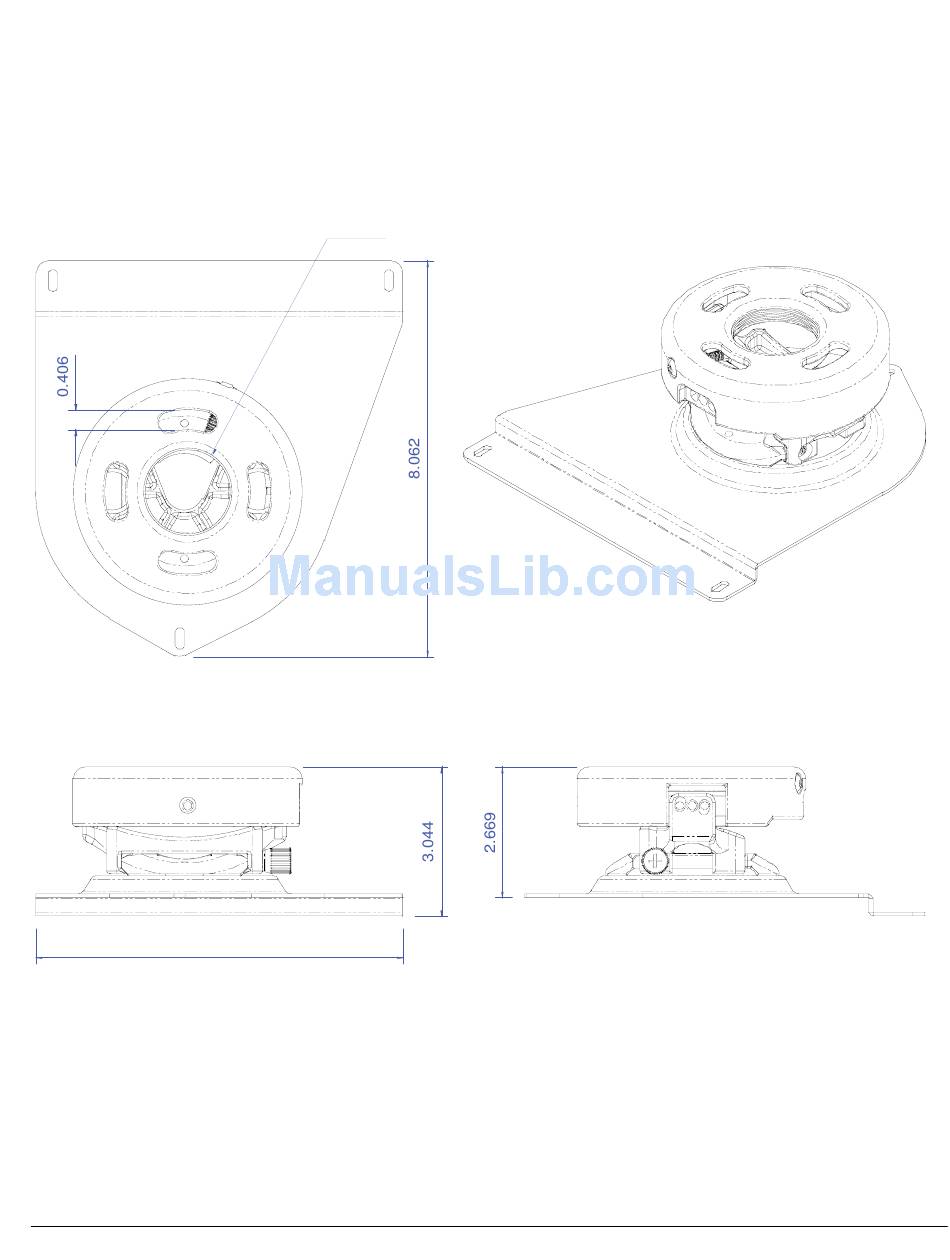

Optional Ceiling Mount Dimensions (Model #: LT65CM)
The following drawings show ceiling mount dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
The mount accommodates a 1.5" NPT treaded pipe extension or two 3/8"-16 threaded rod extensions.
Mount adjustments include roll, pitch and yaw.
Contact Peerless Industries for mount accessories at (800) 865-2112.
1.5 NPT
7.398
www.necvisualsystems.com
LT245
Page 6 of 7
