ARCOL eMirror System And Installation Manual

Camera monitor system
Hide thumbs Also See for eMirror:
Table of Contents

Advertisement

Quick Links

Download this manual
eMirror Camera Monitor System
System and Installation Manual
English
V 11/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eMirror and is the answer not in the manual?

Questions and answers

Related Manuals for ARCOL eMirror

Summary of Contents for ARCOL eMirror

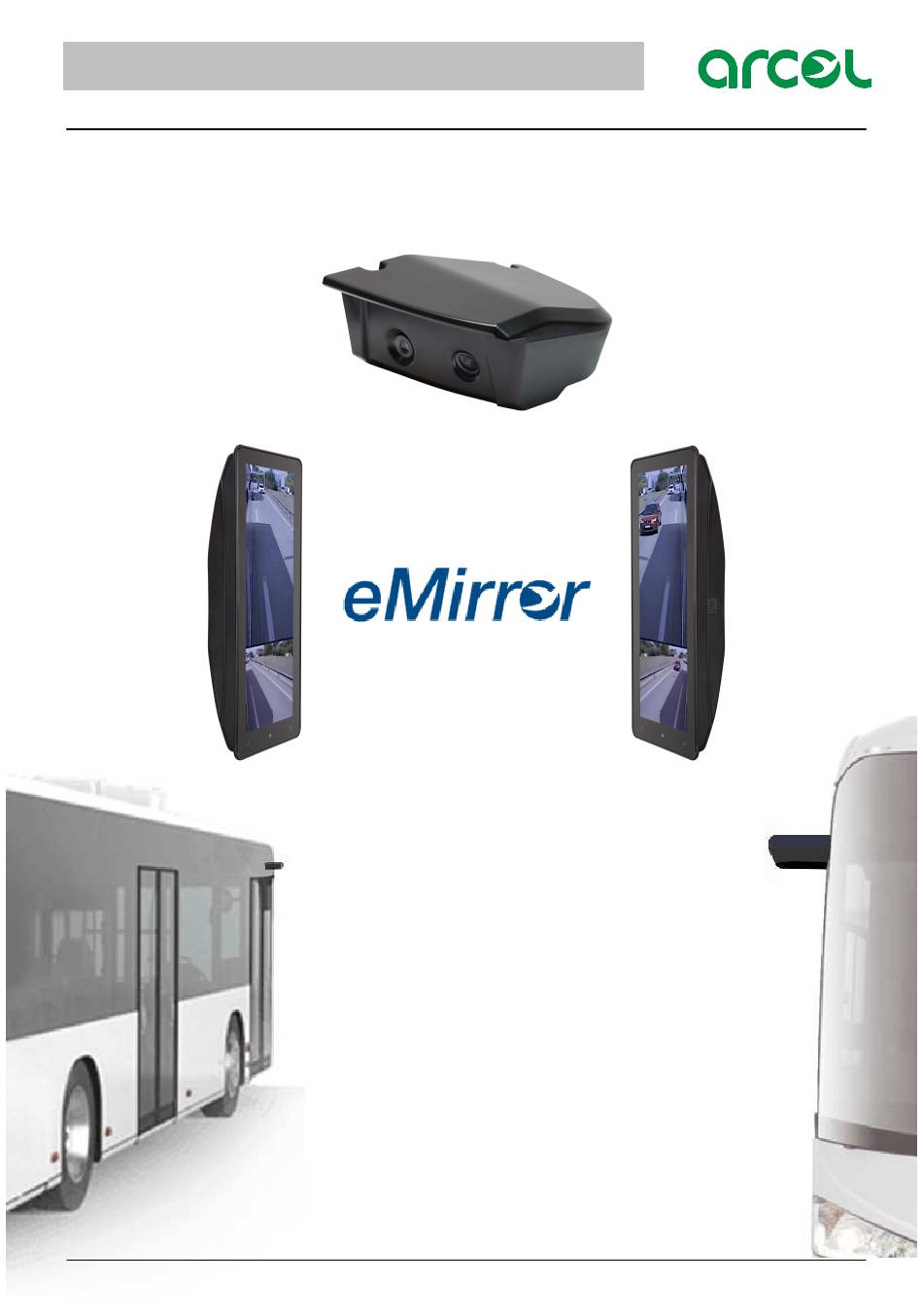

  • Page 1 Camera Monitor System System and Installation Manual English V 11/2022...

  • Page 2: Table Of Contents

    9.1 eMirror System connection diagram Cat. II / IV 9.2 eMirror System connection diagram Cat. II / V 9.3 eMirror System connection diagram Cat. II / IV / V 9.4 eMirror System connection diagram Cat. II / IV / V Analogical 9.5 Observations English V 11/2022...

  • Page 3: System Description

    The Class II image is shown at the top and Class IV or V at the bottom. The analogical system Class V image is shown at the 7" monitor (see figure 1.1, 1.2, 1.3 and 1.4). eMirror system Cat. II / IV Class IV Camera 12,3" Monitor...
  • Page 4 Length 2,5 m Heated cable Length 2,5 m 12V/24V power supply Switch cable length 2,5m Figure 1.3 eMirror system Cat. II / IV / V Analogical 12,3" Monitor 7" Monitor Class V Class II Camera cable Length 6 m Class IV Camera...

  • Page 5: Categories

    Camera Monitor System 2. Categories 2.1. eMirror Class II The Class II field of vision of the main mirror device shows the driver a width of 5 m which is delimited by a plane parallel to the vertical longitudinal median plane and passing through the outermost point of the vehicle from a point 30 m behind the driver's ocular points towards the horizon.

  • Page 6: Camera Unit Fixing Points

    Camera Monitor System 3. Camera unit fixing points Left Side / Right Side Units en mm 8,9 (x3) Wire pass-through Scale 1:1 English V 11/2022 6 of 22...

  • Page 7: Camera Unit

    Camera Monitor System 4. Camera Unit 4.1 Vehicle mounting position The positioning and placement of the cameras is essential for the correct functioning of the system. It is recommended that the camera unit is fully coupled to the bodywork, avoiding leaving a gap between the two as elements may collide with it and become trapped causing damage to the system.

  • Page 8: Mounting Instructions Camera Unit

    Camera Monitor System Mounting Instructions Camera Unit 5.1 Camera unit mounting Cat. II / IV Right Side / Left Side Symmetrical Step 1 1.1 Pass cables through the bracket DIN 7380-2 M4x10 Minimum cable bending radius Step 2 Step 3 3.1 Making connections...
  • Page 9 Camera Monitor System 5.2 Camera unit mounting Cat. II / V Right Side / Left side UK version symmetrical Step 1 1.1 Remove Class V Camera DIN 7380-2 M4x10 PH2-cross recess Step 2 2.1 Pass cables through the bracket...
  • Page 10 Camera Monitor System Step 6 Step 5 5.1 Making connections 6.1 Fasten cables *System connection, see page 18 Step 7 7.1 Place cover 7.2 Fasten with 3mm hexagonal wrench Clipping system English V 11/2022 10 of 22...

  • Page 11: Camera Unit Mounting Cat. Ii / Iv

    Camera Monitor System 5.3 Camera unit mounting Cat. II / IV / V Right Side / Left side UK version symmetrical Step 1 1.1 Remove Class V Camera DIN 7380-2 M4x10 PH2-cross recess Step 2 2.1 Pass cables through the bracket...
  • Page 12 Camera Monitor System Step 6 Step 5 5.1 Making connections 6.1 Fasten cables *System connection, see page 19 Step 7 7.1 Place cover 7.2 Fasten with 3mm hexagonal wrench Clipping system English V 11/2022 12 of 22...

  • Page 13: Camera Unit Mounting Cat. Ii / Iv / V Analogical

    Camera Monitor System 5.4 Camera unit mounting Cat. II / IV / V Analogical Right Side / Left side UK version symmetrical Step 1 1.1 Pass cables through the bracket DIN 7380-2 M4x10 Minimum cable bending radius Step 2 Step 3 3.1 Making connections...

  • Page 14: Monitor

    Camera Monitor System 6. Monitor 6.1 Mounting position The positioning and placement of the monitor is essential for the correct operation of the system. The position of both monitors, on the driver and passenger sides, should be perpendicular to the horizontal plane passing through the centres of the monitor and the driver's eyes (see Figure 6.1).

  • Page 15: Monitor Assembly Instruction

    3.1 Fasten cables 4.1 Insert the monitor into the stand 3.2 Place cover H2-cross recess Do not block the ventilation holes of the monitor **Optional VESA 35X75 fixing provided by Arcol Step 5 Step 6 5.1 Find the right position 6.1 Fasten...

  • Page 16: Monitor Mounting 7" Class V Analogical

    Camera Monitor System 7.2 Monitor mounting 7" Class V Analogical The monitor has three possible fixing systems to the vehicle. *Monitor 7" Connection, see page 21 1. Embeb frame 1.1 Make an accommodation with the specified measurements in the drawing and embed frame 2.

  • Page 17: Connections

    Camera Monitor System 8. Connections 8.1 eMirror category II / IV system connection Class II / IV power supply Terminal Colour Function Voltage Signal Blue Ground Yellow Battery (+) 12V/24V KL 30 Brown System ON / OFF 12V/24V KL 15...

  • Page 18: Emirror Category Ii / V System Connection

    Camera Monitor System 8.2 eMirror category II / V system connection Class II / V power supply Terminal Colour Function Voltage Signal Blue Ground Yellow Battery (+) 12V/24V KL 30 Brown System ON / OFF 12V/24V KL 15 Camera Unit side...

  • Page 19: Emirror Category Ii / Iv / V System Connection

    Camera Monitor System 8.3 eMirror category II / IV / V system connection Class II / IV / V power supply Terminal Colour Function Voltage Signal Blue Ground Yellow Battery (+) 12V/24V KL 30 Brown System ON / OFF...

  • Page 20: Emirror Category Ii / Iv / V Analogical System Connection

    Camera Monitor System 8.3 eMirror category II / IV / V Analogical system connection Class II / IV / V Analogical system connection Terminal Colour Function Voltage Signal Blue Ground Yellow Battery (+) 12V/24V KL 30 Brown System ON / OFF...
  • Page 21 Camera Monitor System Monitor 7" Power supply Terminal Colour Function Voltage Signal Black Ground Battery (+) 12V/24V Power Gray Trigger 1 12V/24V Trigger 1 Green Trigger 2 12V/24V Trigger 2 7" Monitor Minimum cable bending radius AV 1 / Camera...

  • Page 22: Emirror System Connection Diagram

    COAX. CABLE CAM CLASS IV------------------------------------------------------------------------------COAX. CABLE CAM CLASS IV HEATER CAM------------------------------------------------------------------------------HEATER CAM CLASS II ---HEATER CAM CLASS IV ---HEATER CAM CLASS V 9.4 eMirror System connection diagram Cat. II / IV / V Analogical DIN MONITOR------------------------------------------------------------------------------DIN CAMERA GND------------------------------------------------------------------------------GND KL-15------------------------------------------------------------------------------KL-15 KL-30------------------------------------------------------------------------------KL-30 COAX.
