Visual Systems Division
Technical Bulletin
MultiSync MT820/MT1020 Installation Data
Desk Top and Ceiling Mount

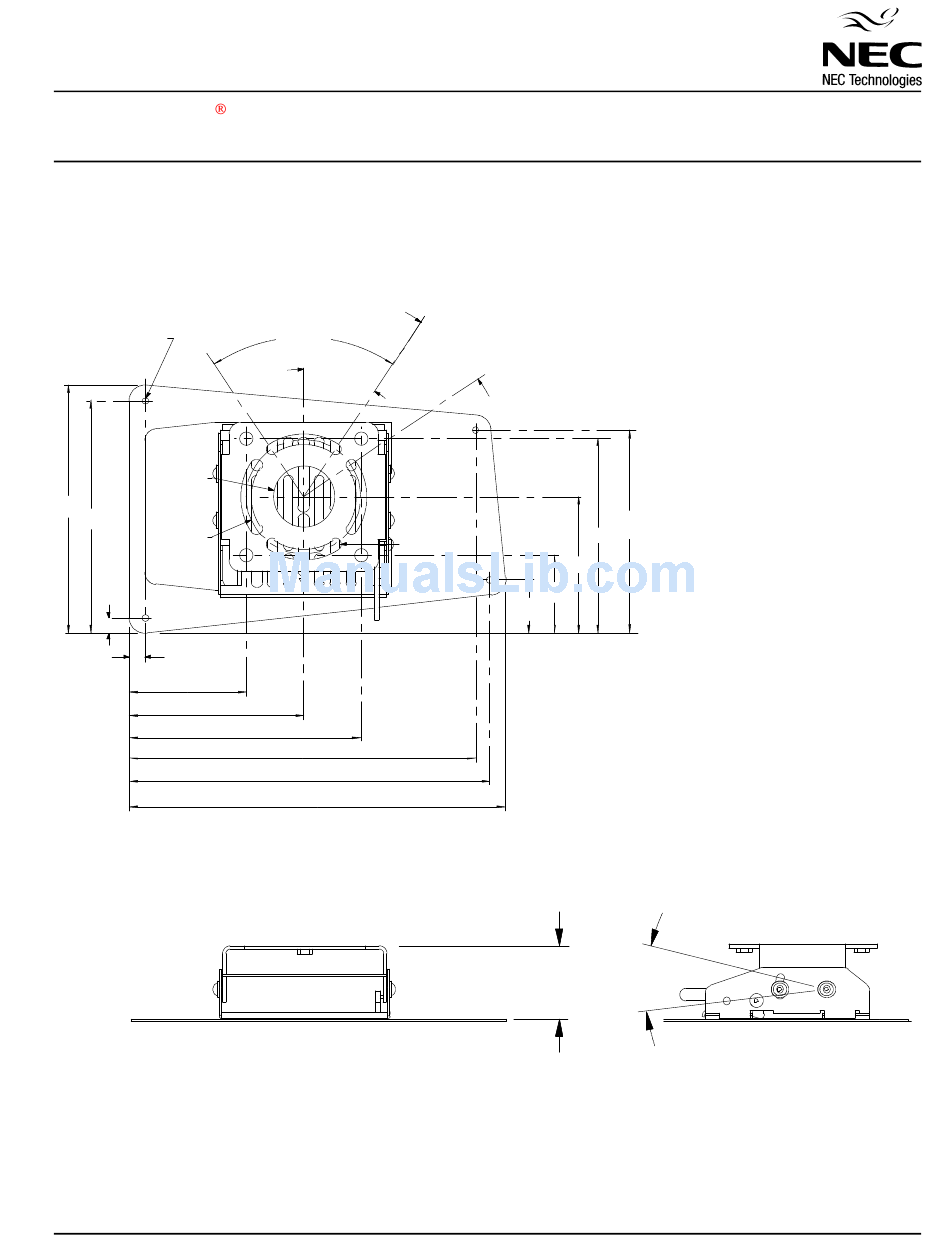

Ceiling Mount Dimensions
The following diagrams show the ceiling mount dimensions for the MultiSync MT820/MT1020.
Dimensions are inches. For millimeters multiply by 25.4.
Ø .2"
Ø 1.93"
8.21"
7.59"
Ø 3.66"
0.5"
0.5"
3.73"
4.88"
7.39"

Top View

Front View

66° TYP
24° TYP
33° TYP
Ø .38 TYP
10.42"
10.82'
11.32"
6.60"
6.26"
4.65"
2.49"
1.88"
5° UP
15° DOWN
2.5"

Side View

Page7
