Shinemate EP803 Manual

EP803
Ver.160107

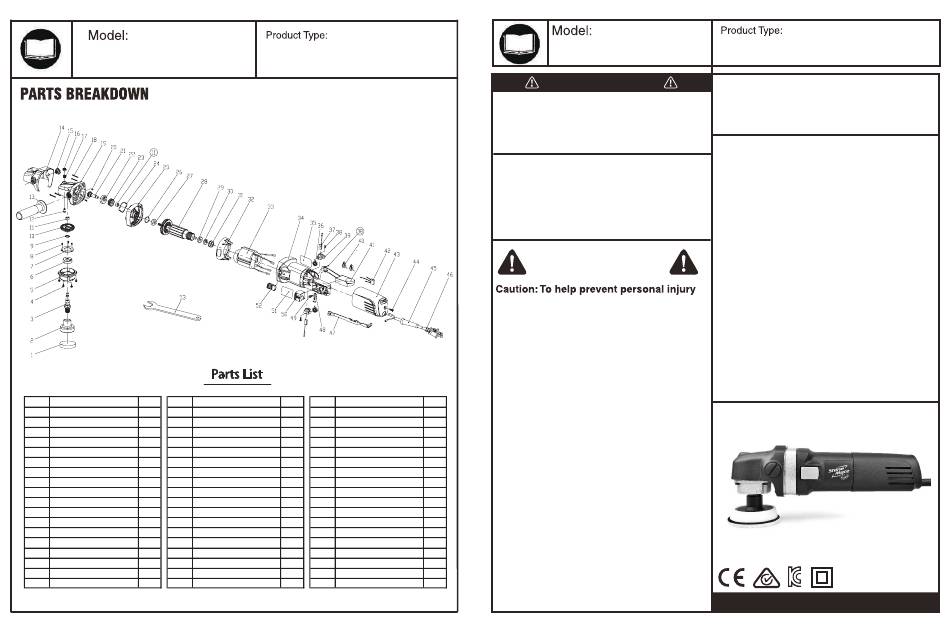

No. Description Qty No. Description
1 Foam Pads / Wool Pads 19 Gear Case
2 Backing Plate 20 Screw M4x8
3 Output Shaft 1 21 Pinion
4 Screw M4x14 4 22 Ball Bearing 6200RS
5 Gear Case Cover 1 23 Bevel Gear
6 Ball bearing 6201 2RS 1 24 Sealing Ring
7 Bearing Clamp 1 25 Bearing Retainer
O-ring φ21.2xφ1.8
8 Screw M4x10 3 26
9 Circlip for shaft 12# 1 27 Ball Bearing 608D1
10 Gear 1 28 Armature
11 Oil-impregnated Bearing 2 29 Magnetic Ring
12 Spindle-Lock Pin 1 30 Ball Bearing 607RZ
13 Side Handle 1 31 Rubber Bearing Seat
14 Case Plastic Cover 1 32 Wind Baffle
15 Plastic Screw M10 2 33 Field Coil
16 Lock Pin Cap 1 34 Field Coil Case
17 Pin Spring 1 35 Data Label
18 Screw ST4.2x40 4 36 Coil Spring
COMPACT ROTARY POLISHER
600W 700-2500RPM
Qty No. Description
1 37 Carbon Brush
2 38 Screw ST3(3x8)
1 39 Carbon Brush Holder
1 40 Inductance
1 41 Controller Assembly
1 42 Capacitor
1 43 Rear Cover
1 44 Screw ST4.2x16
2 45 Cord Jacket
1 46 Power Supply Cord
1 47 Switch Push Lever
1 48 Cord Clamp
1 49 ST4.2x12
1 50 Switch
1 51 Brand Label
1 52 Switch Push Button
1 53 Wrench 17
2
Page 4
EP803

WARNING

Study, understand and follow all instructions
provided with this product. Read these
instructions carefully before installing, operating,
servicing or repairing this tool. Keep these
instructions in a safe accessible place.

INTENDED USE OF THE TOOL

This tool cleans, polishes, waxes. Intended for use for buffing
and polishing wax to bring out the shine of the surface , to
remove minor imperfections such as scratches and dings by
rubbing them out, to polish existing finish around
imperfection to blend them so that they become almost
unnoticeable and to polish after repainting.
WARNING
• Normal use of this product is likely to expose the
user to dust and/or microscopic particles containing
chemicals to cause cancer, birth defects or other
reproductive harm. Always wear appropriate safety
equipment and clothing when using this product.
Study, understand and follow all instructions
provided with this product. Failure to read and follow
all warnings and operating instructions may result in
damages and serious injury or death.
• Always wear safety approved goggles when using
Qty
this product. (Users and Bystanders).
2
• Never use this tool for any application other than for
4
which it was designed.
2
2
• Only use accessories designed for this tool.
1
• Never alter or modify this tool in any way.
1
• Improper operation and/or maintenance of the tool,
1
modification of the tool, or use of the tool with
1
accessories not designed for it could result in serious
1
injury or death.
1
1
• Always select the correct accessories of the correct
1
size and design for the job that you are attempting to
1
perform.
1
• Always work in a clean, safe, well-lit, organized and
1
adequately equipped area.
1
1
• Do not begin repairs without assurance that vehicle
is in secure position, and will not move during repair.
COMPACT ROTARY POLISHER
600W 700-2500RPM

Unpacking

When unpacking, check the parts diagram and part number
listing on page 4 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.

PRODUCT INFORMATION:

• Professionally manufactured for the automotive
paint care industry
• Ergonomically designed to reduce fatigue
in long term operation
• Unit provides several different hand-held positions
which facilitates polishing at various angles
• Designed to maintain constant output speed
• Provides two times the torque of a single gear set polisher

SPECIFICATIONS:

Voltage & Frequency: 220-240V~ 50/60Hz (CE/CN/SAA)
100-127V~ 50/60Hz (UL/JP)
Power Consumption: Rated 600W
(Maximum 900W)
Free Speed: 700-2500rpm
Gear System: Two-level Deduction
Backing Plate: Max.3" (74MM)
Foam Pad: Max.4" (100MM)
DO NOT DISCARD - GIVE TO USER
Page 1
MADE IN CHINA
