Shinemate EP801 Product Manual

EP801
Ver.160425

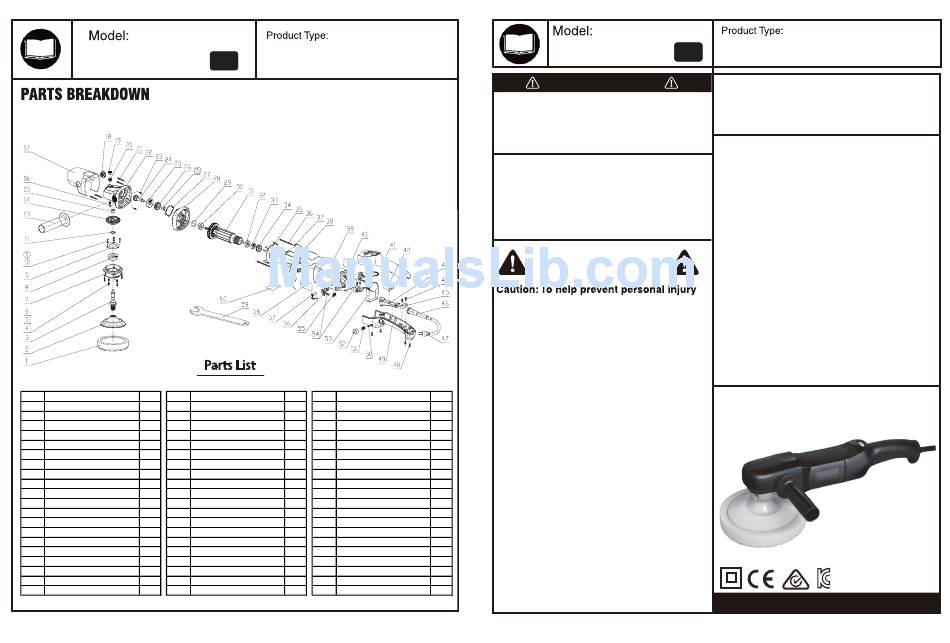

Op/ Description Qty No. Description
1 Foam Pad 22 Gear Case
2 Backing Pad 1 23 Screw M4x8
3 Output Shaft 1 24 Gear Shaft
4 Screw M4x14 4 25 Ball Bearing 6200
5 Spring Washer 4 7 26 Bevel Gear Z2
6 Plain Washer 4 4 27 Rubber Seal Ring
7 Gear Case Cover 1 28 Bearing Retainer
8 Ball Bearing 6201 1 29 O-Ring 1.8x21.2
9 Bearing Clamp 1 30 Ball Bearing 608
10 Screw M4x10 3 31 Armature
11 Circlip for Shaft 12 1 32 Magnetic Ring
13 Side Handle 1 33 Ball Bearing 607
14 Gear 1 34 Rubber Bearing Seat
15 Oil-Impregnated Bearing 2 35 Windshield
16 Spindle-Lock Pin 1 36 Screw ST4.2x70
17 Case Plastic Cover 1 37 Lead
18 Plastic Screw 2 38 Field Coil
19 Lock Pin Cap 1 39 Field Coil Case
20 Pin Spring 1 40 Data Label
21 Screw ST4.2x25 4 41 Rear Handle(Upper)

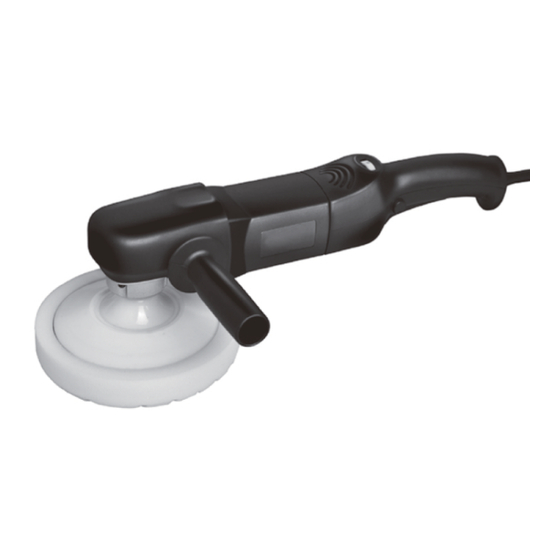

ELECTRIC ROTARY POLISHER
G1 +
800W 700-2500RPM
Qty No. Description
1 42 Switch
2 43 Trigger
1 44 Screw ST4.2x14
1 45 Cord Clamp
1 46 Cord Jacket
1 47 Power Supply Cord
1 48 Screw ST4.2x16
1 49 Rear Handle(Lower)
1 50 Steel Sheet
1 51 Spring
1 52 Switch Lock Button
1 53 Controller Assembly
1 54 Screw ST3x8
1 55 Coil Spring
2 56 Carbon Brush Holder
1 57 Carbon brush
1 58 Brand Label
1 59 Wrench
1 60 Speed Labeling
1
Page 4
EP801
WARNING
Study, understand and follow all instructions
provided with this product. Read these
instructions carefully before installing, operating,
servicing or repairing this tool. Keep these
instructions in a safe accessible place.

INTENDED USE OF THE TOOL

This tool cleans, polishes, waxes. Intended for use for buffing
and polishing wax to bring out the shine of the surface , to
remove minor imperfections such as scratches and dings by
rubbing them out, to polish existing finish around
imperfection to blend them so that they become almost
unnoticeable and to polish after repainting.
WARNING
• Normal use of this product is likely to expose the
user to dust and/or microscopic particles containing
chemicals to cause cancer, birth defects or other
reproductive harm. Always wear appropriate safety
equipment and clothing when using this product.
Study, understand and follow all instructions
provided with this product. Failure to read and follow
all warnings and operating instructions may result in
damages and serious injury or death.
• Always wear safety approved goggles when using
Qty
this product. (Users and Bystanders).
1
1
• Never use this tool for any application other than for
2
which it was designed.
1
• Only use accessories designed for this tool.
1
1
• Never alter or modify this tool in any way.
4
• Improper operation and/or maintenance of the tool,
1
modification of the tool, or use of the tool with
1
accessories not designed for it could result in serious
1
injury or death.
1
1
• Always select the correct accessories of the correct
6
size and design for the job that you are attempting to
2
perform.
2
• Always work in a clean, safe, well-lit, organized and
2
adequately equipped area.
1
1
• Do not begin repairs without assurance that vehicle
1
is in secure position, and will not move during repair.
ELECTRIC ROTARY POLISHER
G1 +
800W 700-2500RPM

Unpacking

When unpacking, check the parts diagram and part number
listing on page 4 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.

PRODUCT INFORMATION:

• Professionally manufactured for the automotive paint care
industry
• Ergonomically designed to reduce fatigue in long term
operation
• Unit provides several different hand-held positions which
facilitates polishing at various angles
• Lightweight only 4-7/8lb. (2.2kg)
• Designed to maintain constant output speed
• Provides two times the torque of a single gear set polisher
• Comes with one 5" molded Flexible Edge Backing Pad.

SPECIFICATIONS:

Voltage & Frequency: 220-240V~ 50/60Hz (CE/CN version)
100-127V~ 50/60Hz (UL/JP version)
Power Consumption: Rated 800W
(Maximum 1200W)
Free Speed: 700-2500rpm
Weight: 4-7/8lbs (2.2kg)
Gear System: Two-level Deduction
ELECTRIC ROTARY POLISHER
800W 700-2500RPM
DO NOT DISCARD - GIVE TO USER
Page 1
MADE IN CHINA
