ASEA AC25V Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
for the ASEA Power Systems

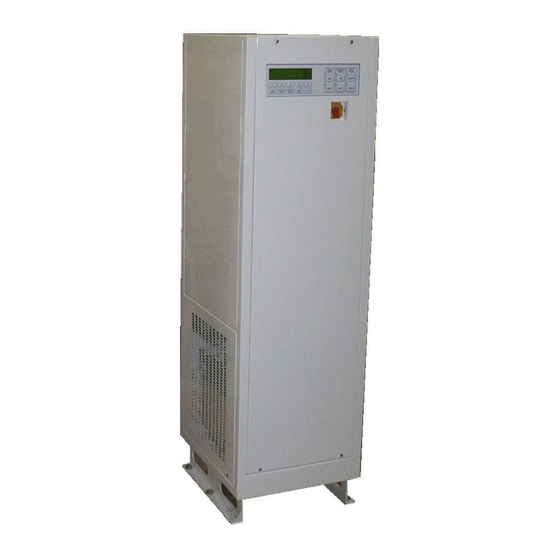

Model AC25V, AC30V, and AC36V II -1 and -3
Single and Three Phase Yacht Power Converters
P/N 607051, Revision A
Issued 1/3/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC25V and is the answer not in the manual?

Questions and answers

Related Manuals for ASEA AC25V

Summary of Contents for ASEA AC25V

  • Page 1 ASEA Power Systems Model AC25V, AC30V, and AC36V II -1 and -3 Single and Three Phase Yacht Power Converters P/N 607051, Revision A Issued 1/3/08...

  • Page 2: Certification

    LIFE SUPPORT POLICY ASEA Power Systems does not authorize the use of any of its products or systems for use an AC voltage supply (source) for life support systems. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with...

  • Page 3: Using This Manual

    A thorough understanding of the information covered in this manual is required for proper installation and operation. If any questions arise while reading this manual, the user is encouraged to call ASEA Power Systems. ASEA Power Systems is located at:...

  • Page 4: Table Of Contents

    SAFETY NOTICES ......... . 6 INTRODUCTION TO THE AC25V, AC30V, AND AC36 V II ..8 SPECIFICATIONS .
  • Page 5 AC25V/30V/36VII-1, -3 Operations Manual..7.3.2 Shore Cord Setup ....... 41 7.3.3 Load Sharing .

  • Page 6: Safety Notices

    AC25V/30V/36VII-1, -3 Operations Manual..SAFETY NOTICES Each shore power converter is capable of transferring very large amounts of electrical energy very quickly. This quality is fundamental to a high performance power converter. International symbols are used throughout this manual to stress important information.
  • Page 7 AC25V/30V/36VII-1, -3 Operations Manual..THIS EQUIPMENT CONTAINS HIGH ENERGY, LOW IMPEDANCE CIRCUITS! LETHAL POTENTIALS ARE CONTAINED WITHIN THE SYSTEM EVEN WHEN IT IS APPARENTLY NOT OPERATING. CARE MUST BE EXERCISED WHEN SERVICING THIS EQUIPMENT IN ORDER TO PREVENT SERIOUS OPERATOR INJURY OR EQUIPMENT DAMAGE.

  • Page 8: Introduction To The Ac25V, Ac30V, And Ac36 V Ii

    AC25V/30V/36VII-1, -3 Operations Manual..INTRODUCTION TO THE AC25V, AC30V, AND AC36V II is a high performance Yacht Power Converter utilizing dual-conversion technology. The Each model systems will accept any single or three phase input service with a frequency between 40-70Hertz, and a voltage between 170-520VAC.
  • Page 9 AC25V/30V/36VII-1, -3 Operations Manual..Being a unit designed from the ground up specifically for the yachting industry, all efforts have been made to produce a system capable of withstanding the marine environment. All system components are packaged in one drip-proof, dust-resistant stainless steel enclosure. Major components are internally modular, allowing a simple exchange in the unlikely event of failure.

  • Page 10: Specifications

    AC25V/30V/36VII-1, -3 Operations Manual..SPECIFICATIONS ELECTRICAL SPECIFICATIONS Parameter AC25V-1, -3 AC30V-1, -3 AC36V II-1, -3 4.1.1 Input Service Input Power Form Single or Three Phase Single or Three Phase Single or Three Phase Input Voltage Range 170-520 V 170-520 V...
  • Page 11 AC25V/30V/36VII-1, -3 Operations Manual..SPECIFICATIONS ELECTRICAL SPECIFICATIONS cont. 4.1.2 Output Service, cont. Table 1 - Output Current, Rated Continuous RMS Output Form AC25V-1 AC30V-1 AC36V II-1 1 Ø , 220V 114A / Ø 136A / Ø 164A / Ø 1 Ø , 230V 109A / Ø...

  • Page 12: Control, Metering, And Status

    AC25V/30V/36VII-1, -3 Operations Manual..SPECIFICATIONS, cont. ELECTRICAL SPECIFICATIONS, cont. 4.1.3 Control, Metering, and Status Shore Power Control Input Service Disconnect Switch, 2 pos. Membrane Switch, Input ON/OFF Control Ship’s Power Control Membrane Switch, Output ON/OFF Control, Generator/Shore Power Transfer Control...

  • Page 13: Installation

    Table 2. Ensure the room/compartment has adequate ventilation and cooling. The thermal load presented by AC25V will be approximately 7,255BTU/Hr at maximum continuous load, 8,705BTU/Hr for the AC30V, and 10,333BTU/Hr for the AC36V II. THE CONVERTERS ARE HEAVY, WEIGHING UP TO 625lbs DEPENDING UPON MODEL AND INSTALLED OPTIONS.

  • Page 14: Mechanical Installation

    AC25V/30V/36VII-1, -3 Operations Manual..MECHANICAL INSTALLATION The systems were designed for deck mount installations and as such are provided with six mounting holes, three per side. Mounting holes have been provided with ½" (12.7mm) diameters; stainless steel hardware in the range of 3/8" to 7/16" (10-11mm) diameter is required.

  • Page 15: Mechanical Outline And Controls

    AC25V/30V/36VII-1, -3 Operations Manual..INSTALLATION, cont. MECHANICAL INSTALLATION, cont. SHORE CONVERTER SHIP'S POWER POWER POWER CONV SHORE GENERATOR CONVERTER SYSTEM CALIBRATE POWER POWER POWER STATUS FIGURE 2 MECHANICAL OUTLINE AND CONTROLS...

  • Page 16: Mounting Pattern

    AC25V/30V/36VII-1, -3 Operations Manual..FIGURE 3 MOUNTING PATTERN...

  • Page 17: Electrical Installation

    BY THE INSTALLATION OF THIS TYPE OF EQUIPMENT. POWER MUST BE REMOVED FROM THE INPUT DISTRIBUTION SYSTEMS SUPPLYING POWER TO THE AC25V PRIOR TO THE START OF THE FOLLOWING STEPS. INPUT POWER MUST BE SECURED (LOCKED) IN THE OFF (DE-ENERGIZED) STATE UNTIL INSTRUCTED OTHERWISE BY THIS DOCUMENT.

  • Page 18: Input Power Connections

    AC25V/30V/36VII-1, -3 Operations Manual..5.2.1 Input Power Connections The converter is supplied with compression type terminal blocks for input power connections. These terminal blocks accept wires in the range of 1/0 to 8AWG. Refer to the applicable standards for selection of required wire gauge and type.

  • Page 19: Output Power Connections

    AC25V/30V/36VII-1, -3 Operations Manual..5.2.2 Output Power Connections Each system is supplied with compression type terminal blocks for output power connections. These terminal blocks accept wires in the range of 1/0 to 8AWG. Refer to the applicable standard for selection of the required wire gauge and type. Please refer to the FIGURE 4 on the previous page for additional detail.

  • Page 20: Seamless Transfer Connections

    AC25V/30V/36VII-1, -3 Operations Manual..5.2.3 Seamless Transfer Connections If the Seamless Transfer Option was ordered with the system, connections must be made between the generator and the converter. These connections are used by the converter to successfully manage the seamless transfer operation and are comprised of control, signal, and feedback functions. These connections are only required on the Master cabinet of a multi-cabinet installation.

  • Page 21: Seamless Transfer Pcb Connections

    AC25V/30V/36VII-1, -3 Operations Manual..TB10 8 9 10 FIGURE 5 SEAMLESS TRANSFER PCB CONNECTIONS...

  • Page 22: Multi-Cabinet

    AC25V/30V/36VII-1, -3 Operations Manual..5.2.4 Multi-Cabinet System Interconnection All multi-cabinet systems are constructed from one cabinet which serves as the system Master, and a second cabinet which serves as the Slave. A paralleling cable assembly (P/N 604650) is shipped pre-installed in the Master cabinet. A paralleling cable assembly (P/N 604651) is shipped pre- installed in the Slave cabinet and coiled at the base of the cabinet near the Input and Output connection terminal blocks.

  • Page 23: Operation

    AC25V/30V/36VII-1, -3 Operations Manual..OPERATION POWER TURN-ON PROCEDURE Close the shore power (input) circuit breaker or switch to the converter. Turn the disconnect (14) switch to the ON position. After 1-3 seconds, fans will be heard, and the display will become active.

  • Page 24: Systems Without Seamless Transfer

    AC25V/30V/36VII-1, -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. Press the SHORE POWER (2) display button. The display will indicate basic shore power information: voltage, frequency, kVA, current, and form. Verify the displayed voltages indicate the expected voltages and frequency. If not, do not proceed until contacting factory personnel.

  • Page 25: Systems With Seamless Transfer

    AC25V/30V/36VII-1, -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. 6.1.2 Systems Equipped With The Seamless Transfer Option With the converter in the Standby State (as left at the end of Section 6.1), press the GENERATOR POWER (3) display button. The generator voltage and form will now be displayed.
  • Page 26 AC25V/30V/36VII-1, -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. 6.1.2 Systems Equipped With The Seamless Transfer Option, cont. If the generator is supplying power to the ship, and the SHIP’S POWER - GENERATOR LED (12A) is lit, and the GENERATOR metering display indicates approximately the same voltage as the CONVERTER metering display, then proceed by pressing the SHIP’S POWER - CONVERTER...

  • Page 27: Multi-Cabinet Turn-On Procedure

    AC25V/30V/36VII-1, -3 Operations Manual..MULTI-CABINET OPERATION Multi-cabinet systems are operated from the Master’s control panel. Each cabinet retains its own control panel and metering display for individual monitoring. A load management option exists that allows individual cabinets to load according to shore cord size: contact the factory for details.
  • Page 28 AC25V/30V/36VII-1, -3 Operations Manual..This page intentionally left blank.

  • Page 29: Auto-Restart Feature

    AC25V/30V/36VII-1, -3 Operations Manual..AUTO-RESTART FEATURE The Auto-Restart feature will safely and automatically bring the shore power converter back on- line following a power failure and recovery event. Highlights include: Automatically routes power from the dock to the ship’s power buss.
  • Page 30 AC25V/30V/36VII-1, -3 Operations Manual..AUTO-RESTART FEATURE, cont. 6.3.1 Operation Auto-Restart must be enabled from the converter front panel by simultaneously pressing two buttons. Anytime the system status is “FAILURE,” the converter will disable the Auto-Restart feature. The converter must be ON and ONLINE before Auto-Restart may be enabled. Pressing the SYSTEM STATUS button (5) will display the SUMMARY DISPLAY which will indicate the Auto-Restart status.

  • Page 31: Turn-Off Procedure

    AC25V/30V/36VII-1, -3 Operations Manual..TURN-OFF PROCEDURE 6.4.1 Systems Not Equipped With The Seamless Transfer Option Transfer power from the converter to the generator. This must be performed in a “break-before- make” method, that is, at no time can the generator(s) and shore power converter be operated in parallel.

  • Page 32: Systems With Seamless Transfer

    AC25V/30V/36VII-1, -3 Operations Manual..6.4.2 Systems Equipped With The Seamless Transfer Option The generator must be started and be prepared to accept the yacht’s electrical loads. Measure the generator voltage using the converter’s metering display, selecting the GENERATOR POWER (3) function. The voltage and frequency must be the same as the converter’s output in order for the seamless transfer option to successfully transfer power.

  • Page 33: Remote Communication

    The Baud Rate can be increased by pressing the F1 (13) button, and decreased by pressing the F2 (13) button. Pressing SYSTEM STATUS (5) saves the setting. Standard baud rates are 1200, 2400, 4800, 9600, 19200, and 38400 where 19200 is the standard for communication with ASEA Power Systems Touch Screens.
  • Page 34 AC25V/30V/36VII-1, -3 Operations Manual..REMOTE COMMUNICATIONS, cont. FIGURE 8 RS-232C PIN-OUT...
  • Page 35 AC25V/30V/36VII-1, -3 Operations Manual..REMOTE COMMUNICATIONS, cont. Remote control can be accomplished with the use of an ASEA Power Systems defined Remote Communication Command Set, or through visual touch screen software that is described elsewhere. Many standard serial communication programs have been tested with the RS-232C Command Set and were found to function adequately.
  • Page 36 AC25V/30V/36VII-1, -3 Operations Manual..REMOTE COMMUNICATIONS, cont. Command Description Comment :SHORe:ON Shore Power ON Same as pressing the Shore Power ON button on the panel. :SHORe:OFF Shore Power OFF Same as pressing the Shore Power OFF button on the panel.
  • Page 37 AC25V/30V/36VII-1, -3 Operations Manual..REMOTE COMMUNICATIONS, cont. Command Description Return Value Range :MEASure:SP1:CURRent1 Shore Power A RMS Current Real number, 0 to 1000 :MEASure:SP1:CURRent2 Shore Power B RMS Current Real number, 0 to 1000 :MEASure:SP1:CURRent3 Shore Power C RMS Current...

  • Page 38: Software Features

    SOFTWARE FEATURES GENERAL ASEA Power Systems' shore power converters provide a variety of software-based resources. Each major function is described in detail in the following pages. BOLD upper-case text indicates when a display button is being referenced. Where two buttons are given as BUTTON + BUTTON, the buttons must be pressed simultaneously.
  • Page 39 AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT, cont. Load Sharing The slave converter of a paralleled converter system can be forced to draw less current than the master converter, if attached to a shore cord with lesser available power due to lower amperage, lower voltage, or different form (i.e.

  • Page 40: Load Management Operation

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION 7.3.1 Shore Cord Alarm, Single, Master, and Slave converters If the yacht’s electrical system includes a power management or load-shed feature, the Shore Cord Alarm can be used to effect a change in loading when the converter reaches a programmed load threshold, or simply draw the yacht engineer’s attention.

  • Page 41: Shore Cord Setup

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.2 Shore Cord Setup, Single, Master, or Slave Converters The Shore Cord Setup screen is used to set the actual shore cord ampacity based on the marina’s dock or pedestal circuit breaker. The converter’s new, programmed CONV. CAPACITY is then displayed for reference.

  • Page 42: Load Sharing

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.3 Load Sharing, Slave converters with Shore Cord Management Option The function of this special Slave converter screen includes those functions of the normal Shore Cord Setup screen described on the previous page with one addition: Load Sharing between the two converters of a paralleled converter system is controlled by entering the MASTER CAPACITY here.
  • Page 43 AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.3 Load Sharing, Slave converters with Shore Cord Management Option, cont. From the front panel, press the SHORE POWER + F2 buttons, and then Cord (F1) to access the following screen: LOAD SHARING MASTER CAPACITY:36.0kVA...

  • Page 44: Voltage Droop

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.4 Voltage Droop, Single or Master Converters Upon Shore Alarm, the Voltage Droop feature may be used to save up to 10% converter capacity by reducing the converter output voltage up to 5%. This is offered as a solution where the yacht does not already have power management and load-shed capabilities that can be triggered with the Shore Cord Alarm signal.

  • Page 45: Automatic Transfer To Generator

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.5 Automatic Transfer to Generator, Single or Master Converters (Seamless Transfer installed) Upon Shore Alarm, the Automatic Transfer to Generator feature may be used to perform a Seamless Transfer to a pre-selected generator. This implies connection and setting of the Generator Autostart Control feature (needed to signal a generator to start and hold the set warm-up time before transferring).

  • Page 46: Quick Setup Of Shore Cord Alarm

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.6 Quick Setup of Shore Cord Alarm, Single, Master, or Slave Converters 1. Turn on the red Disconnect switch of both converters and wait 15-20 seconds for initialization. 2. Press the SHORE POWER + F2 buttons on both converters.

  • Page 47: Expert Load Sharing Use

    AC25V/30V/36VII-1, -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.7 Expert Load Sharing Use, Paralleled Converters The Load Sharing system described in this document has been programmed for simple use and comprehensive gathering of all pertinent data into a few, simple screens. However, the controls can be bypassed and Load Sharing implemented by the user directly via the Slave’s programmable...

  • Page 48: Generator Frequency Analysis

    AC25V/30V/36VII-1, -3 Operations Manual..GENERATOR FREQUENCY ANALYSIS Press the SYSTEM STATUS + GENERATOR POWER buttons to access the Generator Frequency Analysis Display. Used for observing lifetime generator frequency range. GENERATOR FREQUENCY ANALYSIS DISPLAY Generator MIN Frequency: XX.XXHz Generator MAX Frequency: XX.XXHz...

  • Page 49: Agc Control

    AC25V/30V/36VII-1, -3 Operations Manual..AGC CONTROL Press the SHORE POWER + F4 buttons to access the Automatic Gain Control (AGC) CONTROL display. AGC CONTROL SCREEN Automatic Gain Control is: ENABLED Enable Disable Exit This function enables or disables AGC. Press the Enable (F1) button to enable the feature, the Disable (F2) button to disable the feature, and the Exit (F5) button to save the settings and exit.

  • Page 50: Kw-Hour Meter And Max Power Level Display

    AC25V/30V/36VII-1, -3 Operations Manual..kW-HOUR METER AND MAXIMUM POWER LEVEL DISPLAY Press the SHORE POWER + CONVERTER POWER buttons to access the Automatic KW-HOUR METER and maximum power level display. KW-HOUR METER kW-Hours:XXXXXXX.XX Run Time. XX:XX:XX:XX Max. Level: XXX.X% Max. Power: XX.XXkW...

  • Page 51: Converter Output Voltage Control

    AC25V/30V/36VII-1, -3 Operations Manual..CONVERTER OUTPUT VOLTAGE CONTROL Press the CONVERTER POWER + F5 buttons to access the CONVERTER OUTPUT VOLTAGE CONTROL display. CONVERTER OUTPUT VOLTAGE CONTROL Vout = XXX.X More Less XXXV Exit This function allows the user to increase or decrease the converter output voltage (Vout). Press the...

  • Page 52: Event Log

    AC25V/30V/36VII-1, -3 Operations Manual..EVENT LOG Press the EVENT LOG (or CALIBRATE on older converters) button to access the EVENT LOG display. EVENT LOG CONTROL SCREEN F1: EVENT LOG VIEWER XXXX Events F2: EVENT LOG TRACKER F3: EVENT LOG REGISTRY This is for monitoring internal converter logic operation.
  • Page 53 AC25V/30V/36VII-1, -3 Operations Manual..EVENT LOG, cont. Press the F3 button to access the EVENT LOG REGISTRY display. EVENT LOG REGISTRY PRESS: ‘SHORE POWER’ to edit Registry, The ‘F1’ for log On & ‘F2’ for log Off. Press: ‘F4’ to CLEAR EVENT LOG.

  • Page 54: Diagnostics

    AC25V/30V/36VII-1, -3 Operations Manual..7.10 DIAGNOSTICS As previously described in paragraph 6.1, the converter’s LCD display will initiate on turn-on in the SUMMARY DISPLAY (as shown below) indicating the converter’s operational state. SUMMARY DISPLAY AC25 MASTER INPUT#1:OFFLINE CONVERTER: ONLINE LOAD LEVEL: XX.X%...
  • Page 55 AC25V/30V/36VII-1, -3 Operations Manual..7.10 DIAGNOSTICS, cont. To aid in system diagnostics, three status words have been provided in the STATUS WORD DISPLAY which is accessed by pressing the SYSTEM STATUS (5) and F2 (13) buttons simultaneously. Additionally, a configuration word is provided in HEX format.

  • Page 56: Status Word Bit Definitions

    AC25V/30V/36VII-1, -3 Operations Manual..7.10 DIAGNOSTICS, cont. REV_D_PCB HVDC-A>120 HVDC-A>210 INV-A TST OK PFC-A TST OK INV-A OT PFC-A OT HVDC_PS_OT (REFERENCE ONLY) SW1: X X X X F E D LVDC_OK ØA-B_LO ØA-B_HI ØA-B_OK PFC ENABLE INV ENABLE OUTPUT ENABLE...

  • Page 57: Calibration

    AC25V/30V/36VII-1, -3 Operations Manual..7.11 CALIBRATION In an uncalibrated state the input and output voltage and input current metering system should be within 5%. The uncalibrated output current meter is normally 10% low. For calibration an external reference voltmeter will be required along with a calibrated current transformer or probe. If the system is to be calibrated on board using the yacht’s loads, attempt to shut down all transient (fluctuating) loads if...
  • Page 58 AC25V/30V/36VII-1, -3 Operations Manual..7.11 CALIBRATION , cont. Converter Power Calibration - The CONVERTER POWER calibration works in a fashion similar to the SHORE POWER calibration described above. Converter voltages are measured and entered phase-to-neutral. Press and hold the CONVERTER POWER (4) button for 7 seconds, or until the converter power calibration display appears.
  • Page 59 AC25V/30V/36VII-1, -3 Operations Manual..7.11 CALIBRATION , cont. Converter Output Voltage Calibration Calibrate the system output voltage only after calibrating the Converter Power metering screens. Failure to due so may result in improper, and possibly damaging output voltage(s) generated by the converter.

  • Page 60: Maintenance

    AC25V/30V/36VII-1, -3 Operations Manual..MAINTENANCE Due to the design and construction of the converter, preventative maintenance is held to a modest level. The following table lists minimum recommended tasks and frequency. TASK FREQUENCY COMMENTS Tighten electrical Every 6 months Must be adjusted by the user based upon connections experience in the environment.

  • Page 61: International Power Form Reference

    AC25V/30V/36VII-1, -3 Operations Manual..INTERNATIONAL POWER FORM REFERENCE Country Frequency Nominal Voltage Comments American Samoa 60Hz 120/240 277/480 Antigua 60Hz 230/400 Argentina 50Hz 220/380 Aruba 60Hz 127/220 115/230 Australia 50Hz 240/415 250/435 Azores 50Hz 110/190 220/380 Bahamas 60Hz 120/240 120/208...
  • Page 62 AC25V/30V/36VII-1, -3 Operations Manual..Brazil 60Hz 115/230 127/220 220/380 Brunei 50Hz 240/415 Bulgaria 50Hz 220/380 Burma 50Hz 230/400 Canada 60Hz 120/240 120/208 277/480 Canary Islands 50Hz 127/220 220/380 Cape Verde 50Hz 220/380 Cayman Islands 60Hz 120/240 120/208 Chile 50Hz 220/380...
  • Page 63 AC25V/30V/36VII-1, -3 Operations Manual..Ecuador 60Hz 120/240 120/208 Fiji 50Hz 240/415 Finland 50Hz 220/380 France 50Hz 115/230 115/200 220/380 Gibraltar 50Hz 240/415 Greece 50Hz 220/380 Greenland 50Hz 220/380 Grenada 50Hz 230/400 Guadelupe 50Hz 220/380 Guam 60Hz 110/220 120/208 Guatemala 60Hz...
  • Page 64 AC25V/30V/36VII-1, -3 Operations Manual..Japan 50Hz 100/200 60Hz 100/200 Korea 60Hz 110/220 220/380 Kuwait 50Hz 240/415 Madagascar 50Hz 127/220 220/380 Malaysia 50hz 240/415 Maldives 50Hz 230/400 Malta 50Hz 240/415 Martinique 50Hz 220/380 Mauritius 50Hz 230/400 Mexico 60Hz 127/220 Monaco 50Hz...
  • Page 65 AC25V/30V/36VII-1, -3 Operations Manual..Philippines 60Hz 115/230 Portugal 50Hz 220/380 Puerto Rico 60Hz 120/240 120/208 St. Kitts 60Hz 230/400 St. Lucia 50Hz 240/415 St. Vincent 50Hz 230/400 Saudi Arabia 60Hz 127/220 Seychelles 50Hz 240/415 Sierra Leone 50Hz 230/400 Singapore 50Hz...
  • Page 66 AC25V/30V/36VII-1, -3 Operations Manual..United Kingdom 50Hz 240/415 Uruguay 50Hz 220/380 Venezuela 60Hz 120/240 120/208 Amer. Virgin 60Hz 120/240 Islands 120/208...
