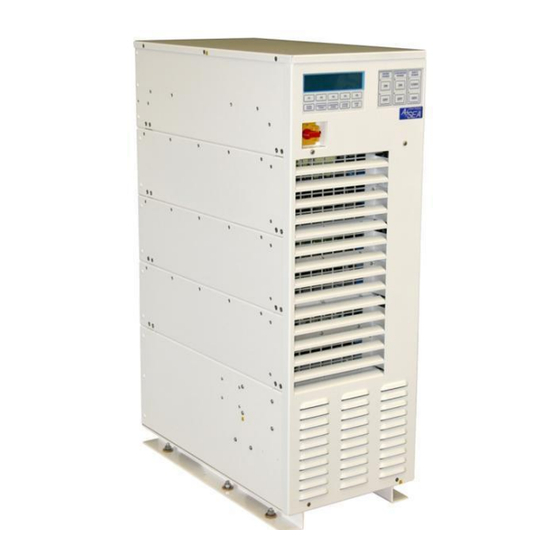

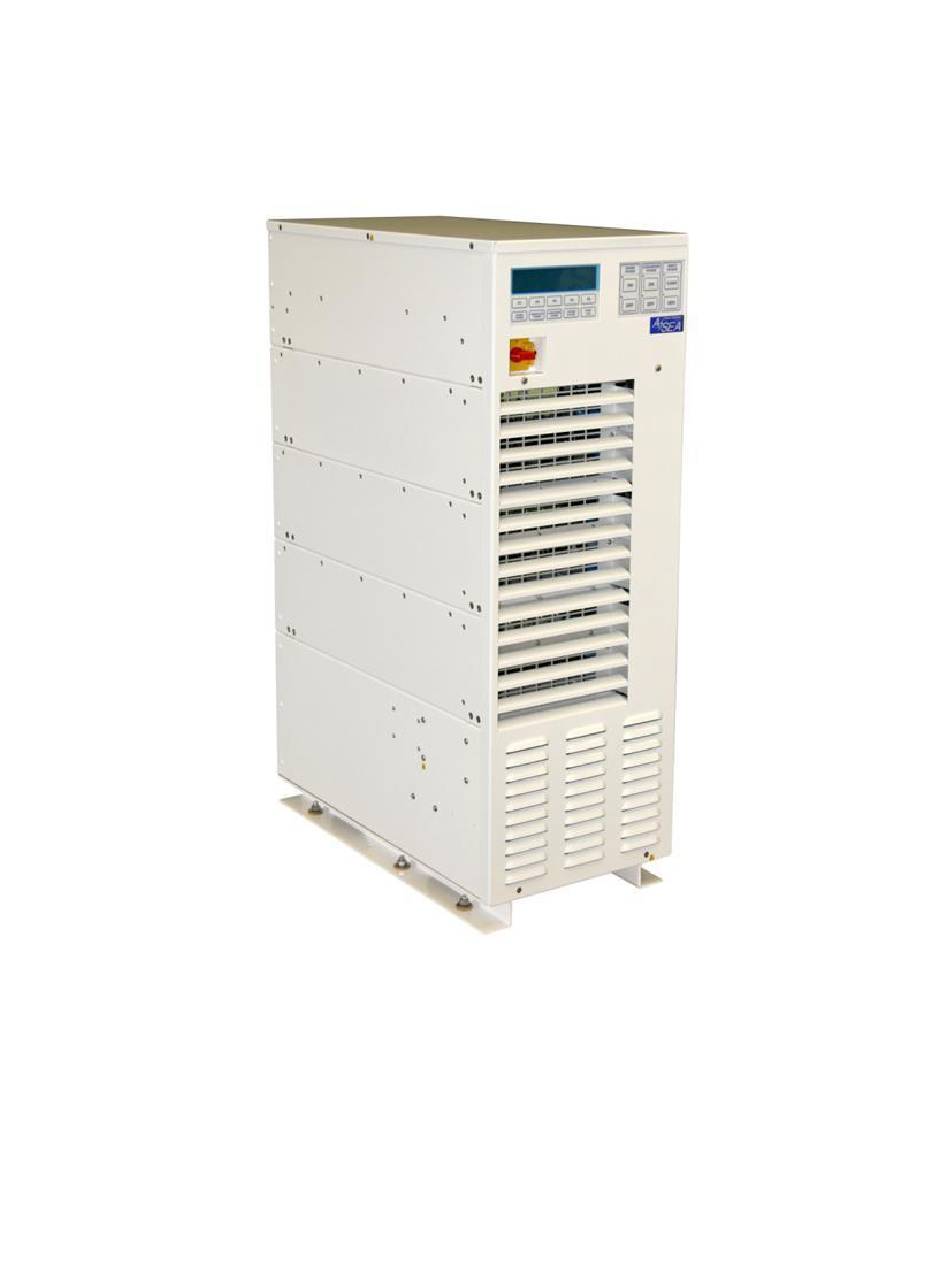

Operations Manual
for the ASEA Power Systems
Model AC25Q-1, AC25Q-3, AC30Q-1, and AC30Q-3
Single and Three Phase Yacht Power Converters
P/N 607055
Revision B
Issued 2/17/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC25Q-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASEA AC25Q-1

Summary of Contents for ASEA AC25Q-1

  • Page 1 Operations Manual for the ASEA Power Systems Model AC25Q-1, AC25Q-3, AC30Q-1, and AC30Q-3 Single and Three Phase Yacht Power Converters P/N 607055 Revision B Issued 2/17/12...

  • Page 2: Certification

    LIFE SUPPORT POLICY ASEA Power Systems does not authorize the use of any of its products or systems for use an AC voltage supply (source) for life support systems. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with this Operations Manual, can be reasonably expected to result in significant injury to the user.

  • Page 3: Using This Manual

    A thorough understanding of the information covered in this manual is required for proper installation and operation. If any questions arise while reading this manual, the user is encouraged to call ASEA Power Systems. ASEA Power Systems is located at:...

  • Page 4: Table Of Contents

    AC25/30Q-1 and -3 Operations Manual..TABLE OF CONTENTS CERTIFICATION ...........................2 WARRANTY ..........................2 USING THIS MANUAL .....................3 SAFETY NOTICES......................6 INTRODUCTION TO THE AC25Q AND AC30Q ............8 SPECIFICATIONS ......................10 ELECTRICAL SPECIFICATIONS ..............10 4.1.1 Input Service ....................10 4.1.2 Output Service ...................10 4.1.3 Control, Metering, and Status ..............12 PHYSICAL SPECIFICATIONS ................12 4.2.1 Mechanical ....................12...
  • Page 5 AC25/30Q-1 and -3 Operations Manual..SOFTWARE FEATURES ..................39 GENERAL ......................39 LOAD MANAGEMENT..................39 LOAD MANAGEMENT OPERATION ...............41 7.3.1 Shore Cord Alarm, Single, Master, and Slave Converters ......41 7.3.2 Shore Cord Setup, Single, Master, and Slave Converters......42 7.3.3 Voltage Droop, Single or Master Converters ..........43 7.3.4 Automatic Transfer to Generator, Single or Master Converters ....44 7.3.5 Quick Setup of Shore Cord Alarm, Single, Master, and Slave Converters45 GENERATOR FREQUENCY ANALYSIS ............46...

  • Page 6: Safety Notices

    AC25/30Q-1 and -3 Operations Manual..SAFETY NOTICES Each shore power converter is capable of transferring very large amounts of electrical energy very quickly. This quality is fundamental to a high performance power converter. International symbols are used throughout this manual to stress important information. Read the text below each symbol carefully and use professional skills and prudent care when performing the actions described by the text.
  • Page 7 AC25/30Q-1 and -3 Operations Manual.. THIS EQUIPMENT CONTAINS HIGH ENERGY, IMPEDANCE CIRCUITS! LETHAL POTENTIALS ARE CONTAINED WITHIN THE SYSTEM—EVEN WHEN IT IS APPEARS TO BE NON-OPERATIONAL.  CARE MUST BE EXERCISED WHEN SERVICING THIS EQUIPMENT IN ORDER TO PREVENT SERIOUS OPERATOR INJURY OR EQUIPMENT DAMAGE.

  • Page 8: Introduction To The Ac25Q And Ac30Q

    AC25/30Q-1 and -3 Operations Manual..INTRODUCTION TO THE AC25Q AND AC30Q Each model is a high performance Yacht Power Converter utilizing dual-conversion technology. The systems will accept any single or three phase input service with a frequency between 40-70 Hertz, and a voltage between 170-520VAC. Input service may consist of one single phase or one three phase shore voltage;...
  • Page 9 AC25/30Q-1 and -3 Operations Manual..INTRODUCTION TO THE AC25Q AND AC30Q, cont. Being a converter designed from the ground up specifically for the yachting industry, all efforts have been made to produce a system capable of withstanding the marine environment. The system is constructed using a modular approach where the converter consists of a control module (upper), three power modules (middle), and a transformer module (bottom).

  • Page 10: Specifications

    AC25/30Q-1 and -3 Operations Manual..SPECIFICATIONS ELECTRICAL SPECIFICATIONS Parameter AC25-1, -3 AC30-1, -3 4.1.1 Input Service Input Power Form Single or Three Phase Single or Three Phase Input Voltage Range 170-520 V 170-520 V Input Frequency Range 40-70 Hertz 40-70 Hertz Input Current, Max.
  • Page 11 AC25/30Q-1 and -3 Operations Manual..SPECIFICATIONS, cont. ELECTRICAL SPECIFICATIONS cont. 4.1.2 Output Service, cont. Table 1 - Output Current, Rated Continuous RMS Output Form AC25Q-1 AC30Q-1 1Ø, 220V 114A /Ø 136A /Ø 1Ø, 230V 109A /Ø 130A /Ø 1Ø, 240V 104A /Ø...

  • Page 12: Control, Metering, And Status

    Voltage, Current, Frequency, kVA, kW, %Load Generator Power Metering Generator 1 - 4, Voltage, Frequency System Status Operational status, Diagnostics, Software Calibration PHYSICAL SPECIFICATIONS Parameter AC25Q-1, -3 AC30Q-1, -3 4.2.1 Mechanical Height 40" / 102cm 40" / 102cm Width, Enclosure 13.75"...

  • Page 13: Installation

    Table 2. Ensure the room/compartment has adequate ventilation and cooling. The thermal load presented by AC25Q-1, -3 will be approximately 8,965 BTU/Hr at maximum continuous load, and 10,760 BTU/Hr for the AC30Q-1, -3 at maximum continuous load.

  • Page 14: Mechanical Installation

    AC25/30Q-1 and -3 Operations Manual..MECHANICAL INSTALLATION The converter is designed for deck mount installations and as such is provided with eight mounting holes, four per side. Mounting holes have been provided with 0.42" (10.75mm) diameters; stainless steel hardware in the range of 1/4" to 5/16" (9-10mm) diameter is required. The mounting surface should be flat and dimensionally stable to within 1/16"...
  • Page 15 AC25/30Q-1 and -3 Operations Manual..MECHANICAL INSTALLATION, cont. DO NOT UNDER ANY CIRCUMSTANCES USE ANY HARDWARE OTHER THAN THE ORIGINAL HARDWARE SUPPLIED BY ASEA POWER SYSTEMS TO CONNECT THE VARIOUS MODULES TOGETHER. LONGER SCREWS WILL DAMAGE INTERNAL COMPONENTS CATASTROPHICALLY!

  • Page 16: Mechanical Outline

    AC25/30Q-1 and -3 Operations Manual..MECHANICAL INSTALLATION, cont. FIGURE 2 MECHANICAL OUTLINE...

  • Page 17: Controls

    AC25/30Q-1 and -3 Operations Manual..MECHANICAL INSTALLATION, cont. FIGURE 3 CONTROLS...

  • Page 18: Electrical Installation

    Follow the table below for shore power wiring. MAXIMUM INPUT CURRENTS UNDER LOW-LINE CONDITIONS: Model AC25Q-1, -3 AC30-1, -3 Input Current Single Phase, 170-290V 140A...
  • Page 19 AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. INPUT WIRING MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN FAMILIAR WITH STANDARD SAFEGUARDS PROCEDURES REQUIRED BY THE INSTALLATION OF THIS TYPE OF EQUIPMENT. POWER MUST BE REMOVED FROM THE INPUT DISTRIBUTION SYSTEMS SUPPLYING POWER TO THE AC25/30Q-1, -3 PRIOR TO THE START OF THE FOLLOWING STEPS.

  • Page 20: Input Power Connections

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. 5.2.1 Input Power Connections The converter is supplied with compression type terminal blocks for input power connections (SHORE POWER). These terminal blocks accept wires in the range of 8 to 2/0 AWG. Refer to the applicable class standard for selection of required wire gauge and type.

  • Page 21: Input And Output Connections

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. FIGURE 4 INPUT AND OUTPUT CONNECTIONS Prepare the power cables by removing approximately 6” of the outer cable insulation (in the case of SO type portable cables). Strip the insulation back exposing 1/2” of the bare conductor for all input, output, and grounding conductors.

  • Page 22: Grounding

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. 5.2.3 Grounding The converter chassis ground MUST be connected to the ship’s hull or common ground point via the compression fitting terminal adjacent to the output power connections. Failure to do so may create conditions that may in turn cause injury or death to operators;...

  • Page 23: Multi-Cabinet Connections

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. 5.2.4 Multi-Cabinet Connections Multi-cabinet systems should have each cabinet’s output connections paralleled at the switchgear panel. The converters’ terminal blocks are sized for a single, appropriated sized cable per phase, neutral, and grounding conductor. Multi-cabinet systems are constructed from one cabinet which serves as the system Master, and a second cabinet which serves as the Slave.

  • Page 24: Seamless Transfer Connections

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. 5.2.5 Seamless Transfer Connections If the Seamless Transfer Option was ordered with the system, connections must be made between the generator/switchgear and converter. These connections are used by the converter to successfully manage Seamless Transfer operation and are comprised of control, signal, and feedback functions.

  • Page 25: Other Optional Connections

    AC25/30Q-1 and -3 Operations Manual..ELECTRICAL INSTALLATION, cont. 5.2.6 Other Optional Connections In support of the Seamless Transfer Option, or in support of switchgear and/or power monitoring integration, other options may be ordered and installed in a converter. Installation requirements for such options vary in accordance with switchgear design and hence are beyond the scope of this Operations Manual.

  • Page 26: Operation

    AC25/30Q-1 and -3 Operations Manual..OPERATION POWER TURN-ON PROCEDURE Close the shore power (input) circuit breaker or switch to the converter. Turn the disconnect (14) switch to the ON position. After 1-3 seconds, fans will be heard, and the display will become active.
  • Page 27 AC25/30Q-1 and -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. The display will sequence to the SUMMARY DISPLAY indicating the converter’s operational state. Both input and output (converter) should indicate OFFLINE at this time. Press the INFO (13) button to review the Shore Power state if desired. The INFO screen will either list the Shore Power as ONLINE or give a reason for its being off if it was previously on.

  • Page 28: Systems Not Equipped With The Seamless Transfer Option

    AC25/30Q-1 and -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. Press the CONVERTER POWER (4) button and the screen will now change. As with the shore power displays, the F1-F4 (13) buttons will cycle through a variety of converter power data. Output voltages and currents should indicate zero.

  • Page 29: Systems Equipped With The Seamless Transfer Option

    AC25/30Q-1 and -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. 6.1.2 Systems Equipped With The Seamless Transfer Option With the converter in the Standby State (as left at the end of Section 6.1), press the GENERATOR POWER (3) display button. The generator voltage and form will now be displayed.
  • Page 30 AC25/30Q-1 and -3 Operations Manual..POWER TURN-ON PROCEDURE, cont. 6.1.2 Systems Equipped With The Seamless Transfer Option, cont. If the generator is supplying power to the ship, the SHIP’S POWER - GENERATOR LED (12A) is lit, and the GENERATOR metering display indicates approximately the same voltage as the CONVERTER metering display, then proceed by pressing the SHIP’S POWER - CONVERTER (9) button.

  • Page 31: Multi-Cabinet Turn-On Procedure

    AC25/30Q-1 and -3 Operations Manual..MULTI-CABINET OPERATION Multi-cabinet systems are operated from the Master’s control panel. Each cabinet retains its own control panel and metering display for individual monitoring. Apply shore power to both cabinets and turn the disconnect switch (14) on each cabinet to the on position.

  • Page 32: Auto-Restart Feature

    AC25/30Q-1 and -3 Operations Manual..AUTO-RESTART FEATURE The Auto-Restart feature will safely and automatically bring the shore power converter back on- line following a power failure and recovery event. Highlights include:  Automatically routes power from the dock to the ship’s power buss. ...

  • Page 33: Operation

    AC25/30Q-1 and -3 Operations Manual..AUTO-RESTART FEATURE, cont. 6.3.1 Operation Auto-Restart must be enabled from the converter front panel by simultaneously pressing two buttons. Anytime the system status is “FAILURE,” the converter will disable the Auto-Restart feature. The converter must be ON and ONLINE before Auto-Restart may be enabled. Pressing the SYSTEM STATUS button (5) will display the SUMMARY DISPLAY which will indicate the Auto-Restart status.

  • Page 34: Turn-Off Procedure

    AC25/30Q-1 and -3 Operations Manual..TURN-OFF PROCEDURE 6.4.1 Systems Not Equipped With The Seamless Transfer Option Transfer power from the converter to the generator. This must be performed in a “break-before- make” method, that is, at no time can the generator(s) and shore power converter be operated in parallel.

  • Page 35: Systems Equipped With The Seamless Transfer Option

    AC25/30Q-1 and -3 Operations Manual..TURN-OFF PROCEDURE , cont. 6.4.2 Systems Equipped With The Seamless Transfer Option The generator must be started and be prepared to accept the ship’s electrical loads. Measure the generator voltage using the converter’s metering display, selecting the GENERATOR POWER (3) function.

  • Page 36: Remote Communication

    RS-485 standard via a din-rail mounted converter/optical-isolator. The two software protocols supported by the converter are SCPI and Modbus. Please contact an ASEA Power Systems authorized distributor or the factory for additional information and comprehensive command/query listings. The Baud Rate and fixed serial port settings can be viewed in the REMOTE INTERFACE CONFIGURATION DISPLAY (as depicted below) by pressing the SYSTEM STATUS (5) and F3 (13) buttons simultaneously.

  • Page 37: Rs-232C/Scpi

    AC25/30Q-1 and -3 Operations Manual..REMOTE COMMUNICATIONS, cont. 6.5.1 RS-232C/SCPI The RS-232C serial port is located to the right of the CONVERTER POWER output connections on the converter side wall (see Figure 4 on page 21). The RS-232C TxD signal originating in the converter is approximately +15V when “High” and - 15V when “Low.”...

  • Page 38: Rs-485/Modbus

    AC25/30Q-1 and -3 Operations Manual..REMOTE COMMUNICATIONS, cont. 6.5.2 RS-485/Modbus If included in the converter, a Modbus Option converter/optical-isolator will be located adjacent to the RS-232C serial port (see Figure 4 on page 21). The Modbus Option included converter/optical-isolator connections are depicted in Figure 8 below.

  • Page 39: Software Features

    SOFTWARE FEATURES GENERAL ASEA Power Systems' shore power converters provide a variety of software-based resources. Each major function is described in detail in the following pages. BOLD upper-case text indicates when a display button is being referenced. Where two buttons are given as BUTTON + BUTTON, the buttons must be pressed simultaneously.
  • Page 40 AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT, cont. Voltage Droop If the yacht’s electrical system does not include a power management system that allows for automatic load-shed, the converter’s Voltage Droop feature may be used to save up to 10% capacity by reducing the converter output voltage up to 5% (1% to 5% range).

  • Page 41: Load Management Operation

    AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT OPERATION 7.3.1 Shore Cord Alarm, Single, Master, and Slave converters If the yacht’s electrical system includes a power management or load-shed feature, the Shore Cord Alarm can be used to effect a change in loading when the converter reaches a programmed load threshold, or simply draw the yacht engineer’s attention.

  • Page 42: Shore Cord Setup, Single, Master, And Slave Converters

    AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.2 Shore Cord Setup, Single, Master, or Slave Converters The Shore Cord Setup screen is used to set the actual shore cord ampacity based on the marina’s dock or pedestal circuit breaker. The converter’s new, programmed CONV. CAPACITY is then displayed for reference.

  • Page 43: Voltage Droop, Single Or Master Converters

    AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.3 Voltage Droop, Single or Master Converters Upon Shore Alarm, the Voltage Droop feature may be used to save up to 10% converter capacity by reducing the converter output voltage up to 5%. This is offered as a solution where the yacht does not already have power management and load-shed capabilities that can be triggered with the Shore Cord Alarm signal.

  • Page 44: Automatic Transfer To Generator, Single Or Master Converters

    AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.4 Automatic Transfer to Generator, Single or Master Converters (Seamless Transfer installed) Upon Shore Alarm, the Automatic Transfer to Generator feature may be used to perform a Seamless Transfer to a pre-selected generator. This implies connection and setting of the Generator Autostart Control feature (needed to signal a generator to start and hold the set warm- up time before transferring).
  • Page 45 AC25/30Q-1 and -3 Operations Manual..LOAD MANAGEMENT OPERATION, cont. 7.3.5 Quick Setup of Shore Cord Alarm, Single, Master, or Slave Converters 1. Turn on the red Disconnect switch of both converters and wait 15-20 seconds for initialization. 2. Press the SHORE POWER + F2 buttons on both converters. 3.

  • Page 46: Generator Frequency Analysis

    AC25/30Q-1 and -3 Operations Manual..GENERATOR FREQUENCY ANALYSIS Press the SYSTEM STATUS + GENERATOR POWER buttons to access the Generator Frequency Analysis Display. Used for observing lifetime generator frequency range. GENERATOR FREQUENCY ANALYSIS DISPLAY Generator MIN Frequency: XX.XXHz Generator MAX Frequency: XX.XXHz Refresh Exit...

  • Page 47: Agc Control

    AC25/30Q-1 and -3 Operations Manual..AGC CONTROL Press the SHORE POWER + F4 buttons to access the Automatic Gain Control (AGC) CONTROL display. AGC CONTROL SCREEN Automatic Gain Control is: ENABLED Enable Disable Exit This function enables or disables AGC. Press the Enable (F1) button to enable the feature, the Disable (F2) button to disable the feature, and the Exit (F5) button to save the settings and exit.

  • Page 48: Kw-Hour Meter And Max Power Level Display

    AC25/30Q-1 and -3 Operations Manual..kW-HOUR METER AND MAXIMUM POWER LEVEL DISPLAY Press the SHORE POWER + CONVERTER POWER buttons to access the Automatic KW- HOUR METER and maximum power level display. KW-HOUR METER kW-Hours:XXXXXXX.XX Run Time.XX:XX:XX:XX Max. Level: XXX.X% Max.

  • Page 49: Converter Output Voltage Control

    AC25/30Q-1 and -3 Operations Manual..CONVERTER OUTPUT VOLTAGE CONTROL Press the CONVERTER POWER + F5 buttons to access the CONVERTER OUTPUT VOLTAGE CONTROL display. CONVERTER OUTPUT VOLTAGE CONTROL Vout = XXX.X More Less XXXV Exit This function allows the user to increase or decrease the converter output voltage (Vout). Press the More (F1) button to increase the Vout, the Less (F2) button to decrease the Vout, the XXXV (F3) button to return Vout to the factory programmed setting, and the Exit (F5) button to save the setting and exit.

  • Page 50: Event Log

    AC25/30Q-1 and -3 Operations Manual..EVENT LOG Press the EVENT LOG (or CALIBRATE on older converters) button to access the EVENT LOG display. EVENT LOG CONTROL SCREEN F1: EVENT LOG VIEWER XXXX Events F2: EVENT LOG TRACKER F3: EVENT LOG REGISTRY This is for monitoring internal converter logic operation.
  • Page 51 AC25/30Q-1 and -3 Operations Manual..EVENT LOG, cont. Press the F3 button to access the EVENT LOG REGISTRY display. EVENT LOG REGISTRY PRESS: ‘SHORE POWER’ to edit Registry, The ‘F1’ for log On & ‘F2’ for log Off. Press: ‘F4’ to CLEAR EVENT LOG. This is for accessing the editing display and for clearing the log.

  • Page 52: Trouble-Shooting And Diagnostics

    AC25/30Q-1 and -3 Operations Manual..TROUBLE-SHOOTING AND DIAGNOSTICS COMMON PROBLEMS When encountering difficulty in achieving successful operation of the converter, there are some problems which are easily identified and solved. The following list is not intended to be exhaustive. POSSIBLE CAUSE/SUGGESTED SYMPTOM ACTION ...

  • Page 53: Failure And Warning Messages

    AC25/30Q-1 and -3 Operations Manual..FAILURE AND WARNING MESSAGES The converter can display various FAILURE or WARNING messages under certain circumstances. If the event causing such as message has subsided, pressing buttons F1 (13) and F2 (13) simultaneously will clear the FAILURE or WARNING message. Common messages are: D86 LVDC FAULT (low voltage power fault, control or fan power supply)

  • Page 54: Status Words

    AC25/30Q-1 and -3 Operations Manual..STATUS WORDS To aid in system diagnostics, three STATUS WORDs have been provided in the STATUS WORD DISPLAY, which is accessed by pressing the SYSTEM STATUS (5) and F2 (13) buttons simultaneously. These STATUS WORDs contain information about internal logic levels and change dynamically in accordance with the converter’s operational state.

  • Page 55: Status Word Bit Definitions

    AC25/30Q-1 and -3 Operations Manual..FIGURE 9 STATUS WORD BIT DEFINITIONS...

  • Page 56: Calibration

    AC25/30Q-1 and -3 Operations Manual..CALIBRATION In an uncalibrated state the input and output voltage and input current metering system should be within 3%. The uncalibrated output current meter is normally 5% low. For calibration an external reference voltmeter will be required along with a calibrated current transformer or probe. If the system is to be calibrated on board using the yacht’s loads, attempt to shut down all transient (fluctuating) loads if possible.
  • Page 57 AC25/30Q-1 and -3 Operations Manual..CALIBRATION, cont. Converter Power Calibration - The CONVERTER POWER calibration works in a fashion similar to the SHORE POWER calibration described above. Converter voltages are measured and entered phase-to-neutral. Press and hold the CONVERTER POWER (4) button for 7 seconds, or until the converter power calibration display appears.

  • Page 58: Maintenance

    AC25/30Q-1 and -3 Operations Manual..MAINTENANCE Due to the design and construction of the converter, preventative maintenance is held to a modest level. The following table lists minimum recommended tasks and frequency. TASK FREQUENCY COMMENTS Tighten electrical Every 6 months Must be adjusted by the user based upon connections experience in the environment.

  • Page 59: International Power Form Reference

    AC25/30Q-1 and -3 Operations Manual..INTERNATIONAL POWER FORM REFERENCE Country Frequency Nominal Voltage Comments American Samoa 60Hz 120/240 277/480 Antigua 60Hz 230/400 Argentina 50Hz 220/380 Aruba 60Hz 127/220 115/230 Australia 50Hz 240/415 250/435 Azores 50Hz 110/190 220/380 120/240 Bahamas 60Hz 120/208 Bahrain 50Hz...
  • Page 60 AC25/30Q-1 and -3 Operations Manual..250/440 Benin 50Hz 220/380 Bermuda 60Hz 120/240 120/208 Brazil 60Hz 115/230 127/220 220/380 Brunei 50Hz 240/415 Bulgaria 50Hz 220/380 Burma 50Hz 230/400 Canada 60Hz 120/240 120/208 277/480 Canary Islands 50Hz 127/220 220/380 Cape Verde 50Hz 220/380 Cayman Islands 60Hz...
  • Page 61 AC25/30Q-1 and -3 Operations Manual..Costa Rica 60Hz 120/240 120/208 Cyprus 50Hz 240/415 Denmark 50Hz 220/380 Dominica 50Hz 230/400 Dominican 60Hz 120/240 Republic 120/208 Ecuador 60Hz 120/240 120/208 Fiji 50Hz 240/415 Finland 50Hz 220/380 France 50Hz 115/230 115/200 220/380 Gibraltar 50Hz 240/415 Greece...
  • Page 62 AC25/30Q-1 and -3 Operations Manual..120/208 110/220 Haiti 60Hz 120/208 Honduras 60Hz 110/220 120/208 Hong Kong 50Hz 220/380 Ireland 50Hz 220/380 Israel 50Hz 230/400 Italy 50Hz 127/220 220/380 Jamaica 50Hz 110/220 Japan 50Hz 100/200 60Hz 100/200 Korea 60Hz 110/220 220/380 Kuwait 50Hz 240/415...
  • Page 63 AC25/30Q-1 and -3 Operations Manual..Mauritius 50Hz 230/400 Mexico 60Hz 127/220 Monaco 50Hz 127/220 220/380 Montserrat 60Hz 230/400 Morocco 50Hz 127/220 220/380 Netherlands 50Hz 220/380 Netherlands 50Hz 127/220 Antilles 220/380 60Hz 120/240 New Caledonia 50Hz 220/380 New Zealand 50Hz 230/400 Norway 50Hz 230/400...
  • Page 64 AC25/30Q-1 and -3 Operations Manual..St. Vincent 50Hz 230/400 Saudi Arabia 60Hz 127/220 Seychelles 50Hz 240/415 Sierra Leone 50Hz 230/400 Singapore 50Hz 230/400 South Africa 50Hz 220/380 Spain 50Hz 127/220 220/380 Sweden 50Hz 220/380 Tahiti 60Hz 127/220 Taiwan 60Hz 110/220 120/208 Thailand 50Hz...
  • Page 65 AC25/30Q-1 and -3 Operations Manual..Uruguay 50Hz 220/380 120/240 Venezuela 60Hz 120/208 Amer. Virgin 60Hz 120/240 Islands 120/208...

  • Page 66: Index

    AC25/30Q-1 and -3 Operations Manual..INDEX Air Exchange Airflow Air Intake 14, 16 Ambient 12, 58 Calibration 12, 47, 56-58 Circuit Breaker 7, 18, 19, 24, 26, 29, 30, 34, 35, 42, 52 Communication 36-38 Cooling 9, 13 Diagnostics 52, 54 D86 LVDC FAULT 53 Exhaust 14, 17...

This manual is also suitable for:

Ac25q-3Ac30q-1Ac30q-3
