SoftBank 809SH Start Manual

Anyone can do it!
Wi-Fi Setup Start Guide

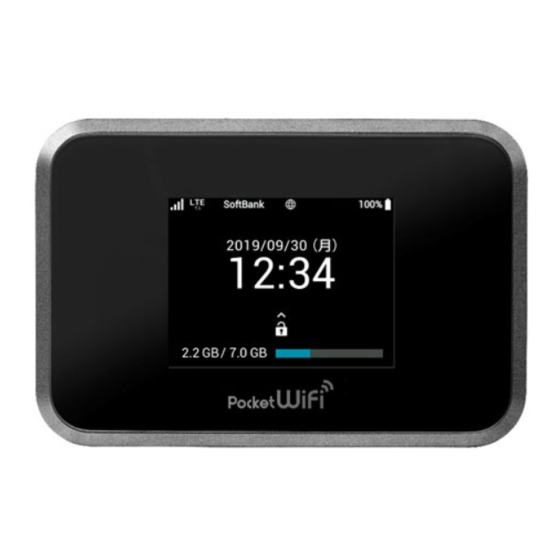

SoftBank 809SH
Getting started
1.
Start Up
The network can be found in after about
30 seconds from turning on the Wi-Fi
router.
The power button is on top side.
Settings
■Connecting iPhone, iPad and Android
1. Tap on "Settings" icon.
2. Select "Wi-Fi".
3. Turn on "Wi-Fi".
4. Select the network "809SHa...".
The SSID is on the back of Wi-Fi router.
5. Enter password.
6. Done!
■ Connecting a Windows 10 PC
1. Click the "Network" icon on the task bar on the lower right
of the PC screen.
2. Select the network "809SHa...".
The SSID is on the back of Wi-Fi router.
3. The network security key input screen will be displayed.
Enter the password, then click "Next".
4. Click "Yes" at the sharing setting confirmation screen.
5. It's done when "connected" is displayed.
■ Connecting via USB
Requires a device driver to be installed.
The driver is automatically installed when you connect the Wi-Fi router
to your PC via USB. However, if the installation doesn't start,
manually install the device driver by selecting
from the "Devices and drives" in File Explorer
on your PC.
"No Service" message
The device can say "No service" when the Wi-Fi router is not
operated with unconnected to any devices in a prescribed time
period.
Please rest assured that "No service" message disappears in 15
seconds after touching the power button.
2.
Join Network
Select the SSID beginning with "809SHa".
The SSID is on the back of Wi-Fi router.
809SHa-..
Password
If an alphabetical "O" and number "0" are in password, the following
signs are described on the back of Wi-Fi router.
【O：alphabet】
【0 ：number】
Please be careful when you enter the password.
Battery Life
Continuous operating time of the batteries is about 6 - 8 hours.
To save the battery life, please turn your Wi-Fi off when not in use.
*The battery is consumed even when the screen is off.
Menu Icons
① ②
⑥
⑨
①Signal Strength
②Network Type
③Carrier Name
④Connectivity
⑤Battery Life
⑥Data Usage
3.
Enter Password
The password is on the back of Wi-Fi
router.
SSID：809SHa-XXXXXXX
Password：012345678a
You can access the Internet
once you join the network.
For more information, please check
Instructions below.
③ ④ ⑤
⑦ ⑧ ⑫
⑩ ⑪
⑦Client List
⑧Notifications
⑨Wi-Fi Guide
⑩Mobile Charge
⑪Settings
⑫About Device
*For more information, please turn over page.
